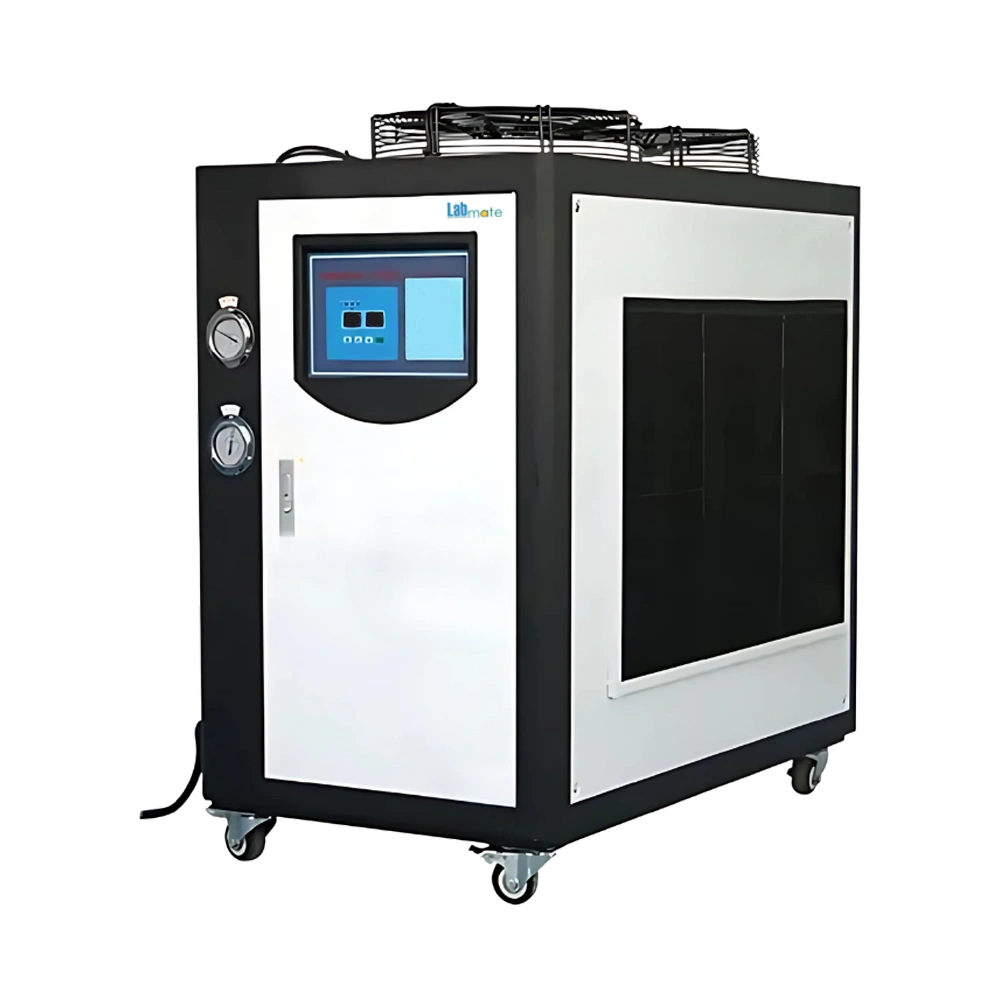

Air Cooled Chiller LMACR-A108

Air Cooled Chiller LMACR-A108

Air Cooled Chiller LMACR-A108 is a versatile and efficient cooling system designed to regulate the temperature of various industrial processes by removing excess heat from a specific environment. It features energy efficiency, operational excellence, and a leak-resistant design. The system accommodates a large water tank capacity of 630L with a flow rate of 400 to 800L/ min and exhibits a 30kW compressor motor.

Get Quote
Water Tank Capacity 630 L
Cooling Capacity 117200 W, 399700 BTU / hr
Flow Rate 400 - 800 L / Min
Water Pump 3.75 HP, 5 kW
Refrigerant Type R22
Compressor Motor 30 kW, 40 HP
Condenser Fan Flow Rate 31200 CHM
Fan Diameter 500 mm × 8 set
Voltage/Base 380V - 400 V / 3 Phase (50 Hz - 60 Hz)
Running Current 75 Amp
Insulation Material Poly-foam type rubberized tube insulation
Dimension (L × W × H) 1930 × 1120 × 1980 mm
Net Weight 1180 kg

point.png The interior components of the chillers are constructed from durable stainless steel

point.png Features effective insulation with poly foam rubberized tube insulation

point.png Chillers operate using R22 as the refrigerant

point.png The compact design is well-suited for outdoor installation

point.png Precision temperature control is maintained within a narrow range of ±1ºC by the PID temperature controller

point.png The importation pump switch is equipped with a high-pressure function

point.png Equipped with an indicator light to promptly alert users to any abnormal conditions

point.png Provides automatic cut-off during emergency situations

Air-cooled chillers are refrigeration systems employed for dehumidifying air and cooling production process lines in both commercial and industrial settings.
