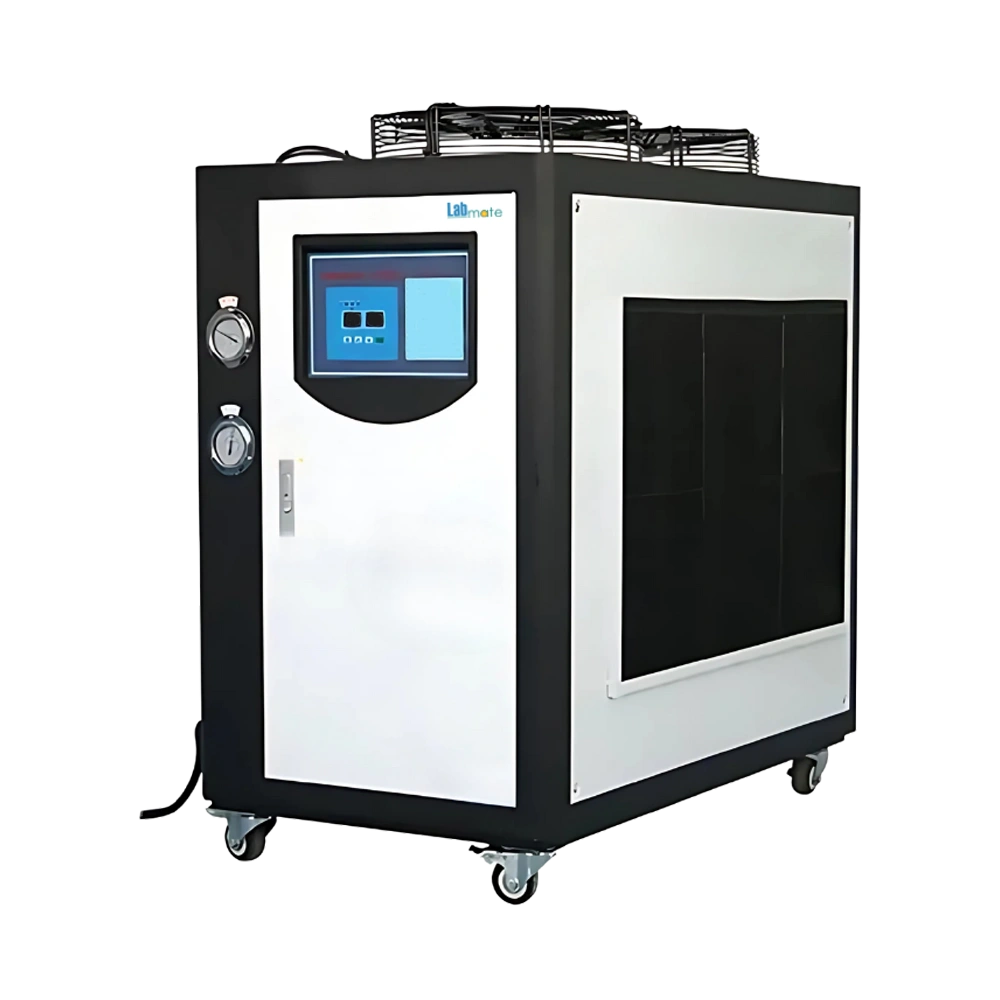

Air Cooled Chiller LMACR-A102 is a versatile and efficient cooling system designed to regulate the temperature of various industrial processes by removing excess heat from a specific environment. It features energy efficiency, operational excellence, and a leak-resistant design. The system accommodates a large water tank capacity of 140L with a flow rate of 100 to 200L/ min and exhibits a 6kW compressor motor.
Specifications
| Water Tank Capacity | 140 L |
| Cooling Capacity | 20540 W, 77300 BTU / hr |
| Flow Rate | 100 - 200 L / Min |
| Water Pump | 1 HP, 0.75 kW |
| Refrigerant Type | R22 |
| Compressor Motor | 6 kW, 8 HP |
| Condenser Fan Flow Rate | 7800 CHM |
| Fan Diameter | 450 mm × 2 set |
| Voltage/Base | 380V - 400 V / 3 Phase (50 Hz - 60 Hz) |
| Running Current | 13 Amp |
| Insulation Material | Poly-foam type rubberized tube insulation |
| Dimension (L × W × H) | 1380 × 750 × 1450 mm |
| Net Weight | 320 kg |
Features
The interior components of the chillers are constructed from durable stainless steel
Features effective insulation with poly foam rubberized tube insulation
Chillers operate using R22 as the refrigerant
Precision temperature control is maintained within a narrow range of ±1ºC by the PID temperature controller
The importation pump switch is equipped with a high-pressure function
Provision of auto cut-off during an emergency situation
Equipped with an indicator light to promptly alert users to any abnormal conditions
The compact design is well-suited for outdoor installation
Applications
Air-cooled chillers are refrigeration systems employed for dehumidifying air and cooling production process lines in both commercial and industrial settings.
Similar Products
Frequently Asked Questions
1 What is an Air Cooled Chiller LMACR-A102?
An Air Cooled Chiller LMACR-A102 is an industrial cooling unit that uses air to dissipate heat from water or process fluids, offering precise temperature control and safety features for lab and manufacturing applications.
2 How does an Air Cooled Chiller LMACR-A102 work?
An Air Cooled Chiller LMACR-A102 operates on the vapor compression refrigeration cycle.
3 Can Air Cooled Chiller LMACR-A102 be used in brewery fermentation control?
Air Cooled Chiller LMACR-A102 regulates fermentation temperatures for better product quality.
4 Can Air Cooled Chiller LMACR-A102 be used for cooling medical imaging equipment?
Air Cooled Chiller LMACR-A102 helps maintain stable temperatures for reliable medical imaging performance.
5 Does Air Cooled Chiller LMACR-A102 support cooling of blood analysis machines?
Air Cooled Chiller LMACR-A102 helps keep blood analyzers within optimal operating temperatures.
6 Can Air Cooled Chiller LMACR-A102 be used in immunoassay analyzers?
Air Cooled Chiller LMACR-A102 ensures consistent temperature for reliable immunoassay testing.
7 Is Air Cooled Chiller LMACR-A102 suitable for livestock semen storage labs?
Air Cooled Chiller LMACR-A102 provides consistent cooling essential for cryogenic preservation systems.
8 Is Air Cooled Chiller LMACR-A102 suitable for plant tissue culture labs?
Air Cooled Chiller LMACR-A102 provides precise temperature control critical for tissue culture growth.
9 Is Air Cooled Chiller LMACR-A102 suitable for spectroscopy equipment?
Air Cooled Chiller LMACR-A102 helps stabilize instrument temperatures to ensure accurate readings.
10 What kind of maintenance does Air Cooled Chiller LMACR-A102 require?
Routine maintenance typically involves cleaning the condenser, checking refrigerant levels, inspecting the pump and testing the temperature control system along with all safety features.
11 What is an Air Cooled Chiller?
An Air Cooled Chiller is an apparatus designed to use ambient air to remove heat from a process or space by circulating refrigerant through a vapor-compression cycle.
12 How does an Air Cooled Chiller work?
It operates by compressing refrigerant, extracting heat from a fluid, and dissipating it via air-cooled coils.
13 What kind of maintenance does Air Cooled Chiller require?
Regular maintenance includes cleaning condenser coils, checking refrigerant pressure, inspecting electrical components, and verifying temperature set points.
14 Can Air Cooled Chiller be used in industrial manufacturing?
It is widely used in industrial manufacturing to cool machinery, hydraulic systems and process fluids.
15 Is Air Cooled Chiller suitable for plastic molding process?
It is commonly used in plastic molding to maintain precise mold temperatures and improve cycle times and product consistency.
16 How does Air Cooled Chiller benefit hospitals and healthcare facilities?
It supports critical HVAC systems in healthcare facilities, ensuring reliable temperature control in patient rooms, operating theaters, and labs.
17 Is Air Cooled Chiller suitable for pharmaceutical production?
It is used in pharmaceutical facilities for temperature control in manufacturing, packaging, and cleanroom environments.
18 Is Air Cooled Chiller effective for greenhouse or agricultural cooling?
It is used to regulate climate conditions in greenhouses or agriculture facilities, protecting plants from heat stress and maintaining growth cycles.
19 Can Air Cooled Chiller be used in textile manufacturing?
It is used to cool dyeing machines, maintain ambient factory temperatures, and prevent yarn or fabric distortion.
20 Can Air Cooled Chiller be used in laboratories and research centers?
It is vital for temperature control in scientific equipment such as electron microscopes, laser systems, and climate chambers.
