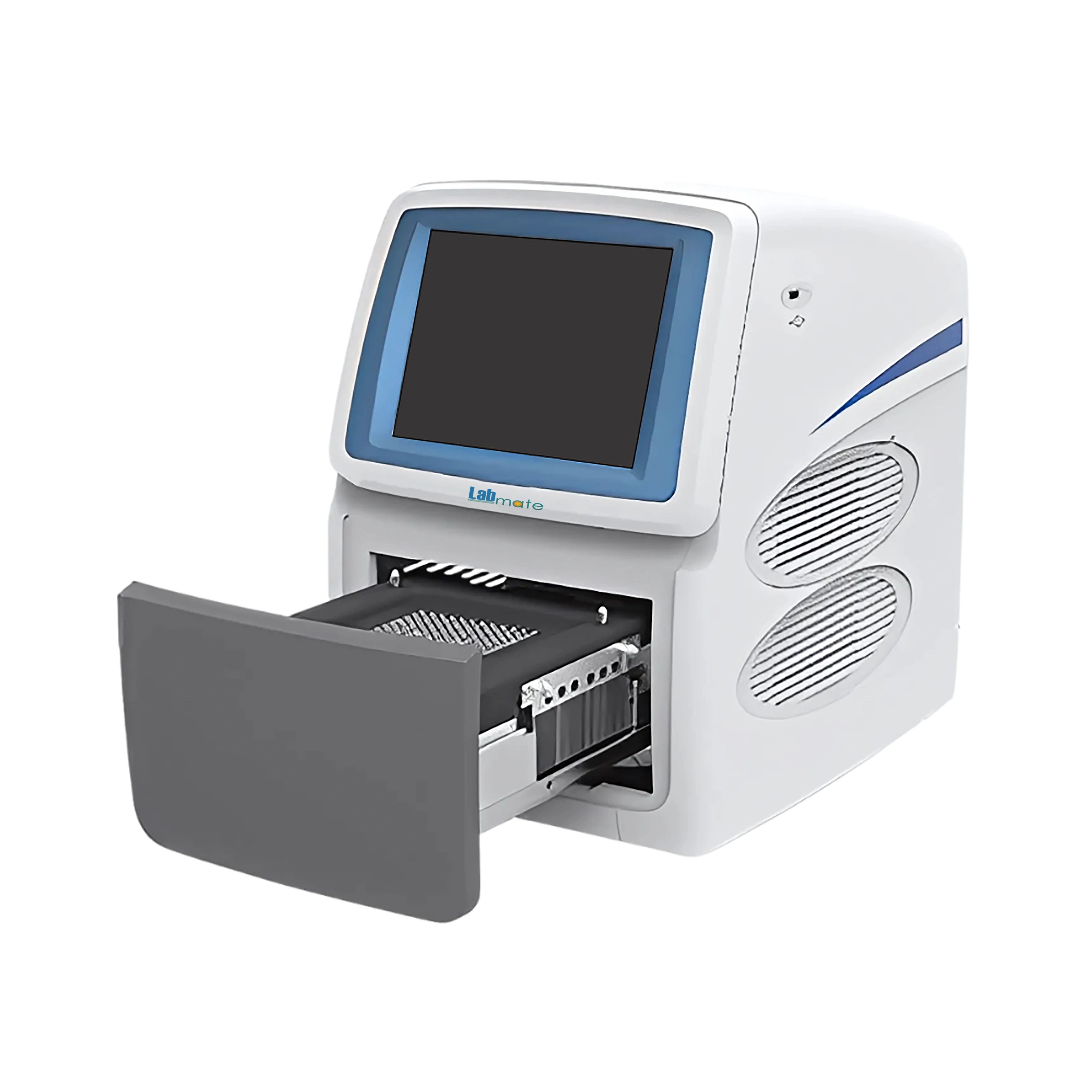

Real time PCR system LMPCS-801 is a fully integrated quantitative PCR amplification and data analysis system. It tests up to 96 samples with 7s top optical scanning for 6 channels operating under 100°C temperature range. The instrument has a heating rate of 6.1°c/s along with a cooling rate of 5°c/s operated with a PID&DSP control algorithm ensuring faster response, uniform heating and heat sinking. The 10.4 LCD touch screen has quick access for multiple functions with one-touch commands and built-in diagnostics assist in trouble shooting.
CatalogSpecifications
| Fluorescence Channels | 6 |
| Sample Capacity (Wells) | 96 |
| Reaction Volume | 0 to 100µL |
| Consumables | 0.2ml 96-well plates; 0.2ml 8-strip tubes, 0.2ml PCR single tube |
| Temperature Range | 0°C to 100°C |
| Heating/Cooling Method | Peltier |
| Maximum Heating Rate | 6.1°C/sec |
| Average Heating Rate | 4.5°C/sec |
| Maximum Cooling Rate | 5.0°C/sec |
| Average Cooling Rate | 2.8°C/sec |
| Temperature Accuracy | ±0.1°C |
| Temperature Uniformity | ±0.1°C |
| Work Environment | 10° to 30°C |
| Humidity | 20% - 80% |
| Gradient Range | 1° to 40°C |
| Gradient Block | 12 row |
| Detector | Photodiode |
| Detection Position | Excitation and scan at top |
| Detection Method | 6 channels scanning |
| Detection Time | 7 seconds |
| Multiplexing | Up to 6 targets |
| Fluorescence Linearity | r≥0.990 |
| Sample Linearity | r≥0.999 |
| Sample Repeatability | Ct value CV≤0.5% |
| Sample Dynamic Range | 1-1010 copies |
| Data Storage | Up to 1000 results |
| Communication Port | 1 Ethernet and3 USB |
| Power Consumption | 900 VA |
| Power Usage | AC 100 to 125V; 200 to 240V (50/60Hz) |
| Dimension (W×D×H) | 355×480×485 mm |
| Weight | 30 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Real time PCR system LMPCS-801 | $27,240.00 | Pack of 1 |
Features
10.4-inch touch screen intuitive operation
Message alarm indicates the status of the machine
Unique power-off function can save all the process date during sudden power outages and allows for continuation of experiment once power supply restored
Fast and uniform heating system
Concealed lid with constant temperature and isopiestic pressure
Electrically controlled elevating and automatic lock platform
Highly efficient PID&DSP control algorithm ensures faster response and strong interference resistance
LED excitation and PD-detection
More than 1000 results can be stored in device
Pre-installed templates can help user to easily edit the protocols
Validated for most applications and chemistries
Easy and convenient operation
Increased productivity with automation compatibility for 24/7 operation
Space savings with small foot print and standalone operation
High application versatility
Sensitive data analysis
Applications
The device is used for quantitative recovery of DNA and RNA from samples, including cell culture, raw material, in various fields of laboratories, pharmaceuticals, biological institutions etc.
