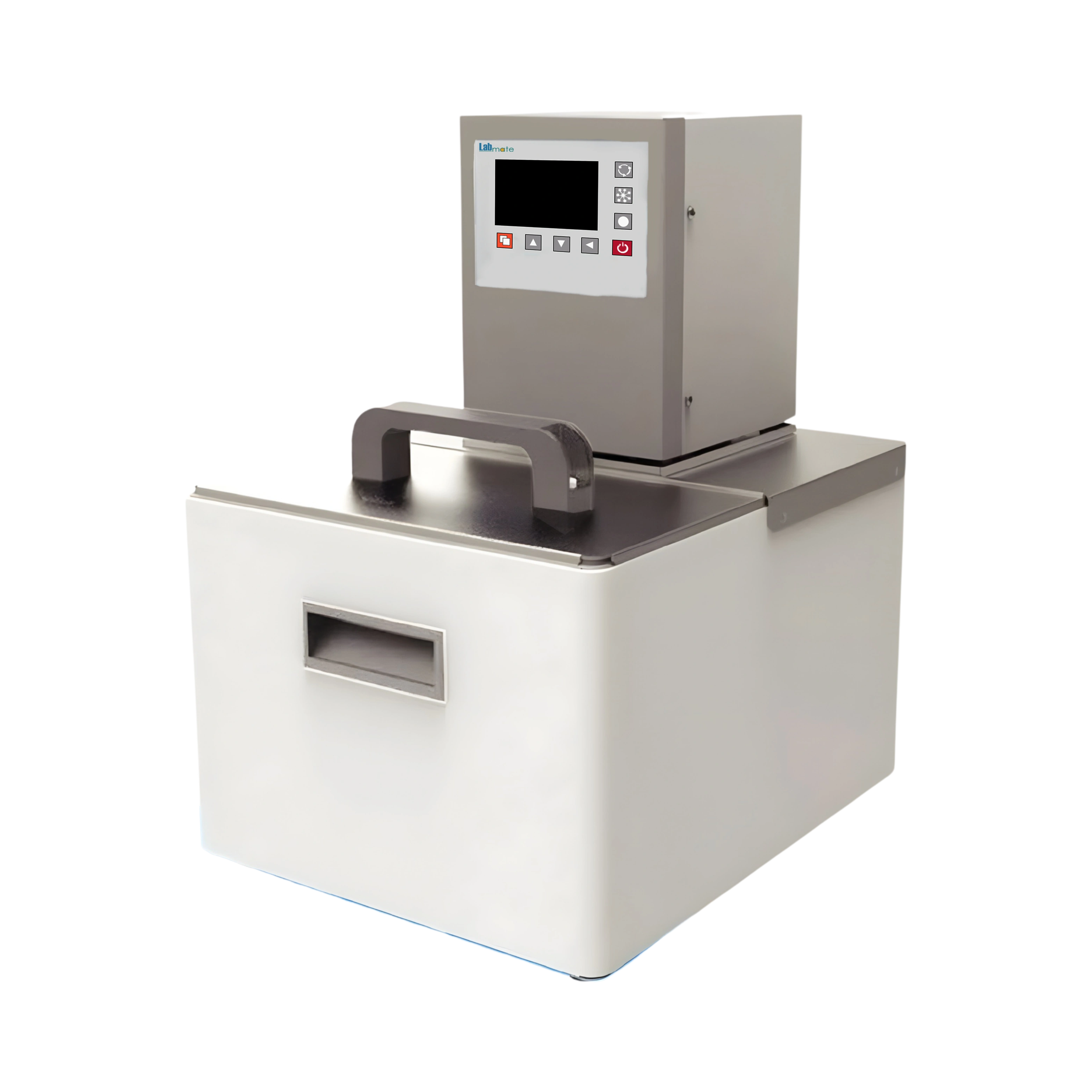

Heated Circulating Bath LMHR-A103 is designed with temperature-controlled heating element and a pump to circulate the heated fluid throughout the chamber. Our bath improved with a loading capacity of 30 L circulate water via maintaining a precise temperature at RT-100 °C. Furnished with a digital display panel that improves usability by enabling users to monitor all working parameters.
Specifications
| Capacity | 30 L |
| Temperature | RT-100 °C |
| Stability | ± 0.1 |
| Flow | 14L/min |
| Lift | 12 m |
| Power | 1.5 Kw |
| Opening | 290 × 350 mm |
| Depth | 200 mm |
| Dimension | 290 × 500 × 400 mm |
| Net Weight | 23 Kg |
| Gross Weight | 30 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Heated Circulating Bath LMHR-A103 | $ 2087.5 | Pack of 1 |
Features
Tank made up of 304 Stainless steels
Over temperature alarm for safe usage
Low water alarm indicates low water level
PID controller system
Equipped with both internal and external circulation (optional)
Optional Accessories
| Connector | G-15/6 | 304 stainless steel: DN15-6 mm |
| G-15/8 | 304 stainless steel: DN15-8 mm | |
| G-15/10 | 304 stainless steel: DN15-10 mm | |
| G-15/12 | 304 stainless steel: DN15-12 mm | |
| G-15/14 | 304 stainless steel: DN15-14 mm | |
| G-15/16 | 304 stainless steel: DN15-16 mm | |
| Hose | L - 6/8 | Silicone tube: inner diameter 6mm- outer diameter 8mm |
| L - 8/10 | Silicone tube: inner diameter 8mm- outer diameter 10mm | |
| L -10/12 | Silicone tube: inner diameter 10mm- outer diameter 12mm | |
| L -12/14 | Silicone tube: inner diameter 12mm- outer diameter 14mm | |
| L -14/16 | Silicone tube: inner diameter 14mm- outer diameter 16mm | |
| L -16/16 | Silicone tube: inner diameter 16mm- outer diameter 16mm |
Applications
Heated Circulating Bath is commonly used in laboratories for tasks such as sample incubation, chemical reactions, cell culture, and enzyme assays.
Similar Products
$ 2262.5 / Pack of 1
$ 2087.5 / Pack of 1
$ 2025 / Pack of 1
$ 1662.5 / Pack of 1
$ 1900 / Pack of 1
$ 1750 / Pack of 1
$ 1487.5 / Pack of 1
Frequently Asked Questions
1 What is a Heated Circulating Bath?
A Heated Circulating Bath is an apparatus designed to maintain precise temperatures by heating and circulating fluid.
2 How does a Heated Circulating Bath work?
It works by heating a fluid and continuously circulating it to ensure uniform temperature control.
3 Which fluids are compatible with Heated Circulating Bath?
It is compatible with water, water-glycol mixtures and heat transfer oils such as silicone or mineral oil.
4 Can Heated Circulating Bath be used continuously for long experiments?
It is engineered for continuous use and maintains stable temperatures over extended periods.
5 Can Heated Circulating Bath be calibrated?
It can be calibrated using an external thermometer or calibration standard to ensure temperature accuracy.
6 Can Heated Circulating Bath be used for sample thawing or warming?
It is ideal for controlled thawing and warming processes that requires gentle, consistent temperatures.
7 Can Heated Circulating Bath be used for automotive or industrial testing?
It is used in automotive, industrial and engineering applications for testing materials, coatings or oils under controlled temperatures.
8 What safety features are present in Heated Circulating Bath?
It is equipped with safety features such as over-temperature alarms, low-fluid sensors, automatic shut-offs and leak protection.
9 Can Heated Circulating Bath be used for distillation process?
It is used in distillation process to maintain a consistent temperature for separating liquids based on boiling points.
10 Can Heated Circulating Bath be used for environmental testing?
It is commonly used in environmental testing to simulate specific temperature conditions for testing materials, samples or equipment.
11 What is a High-Temperature Oil Bath?
A High-Temperature Oil Bath is an apparatus that uses heated oil to maintain and control high temperatures for various industrial or laboratory processes.
