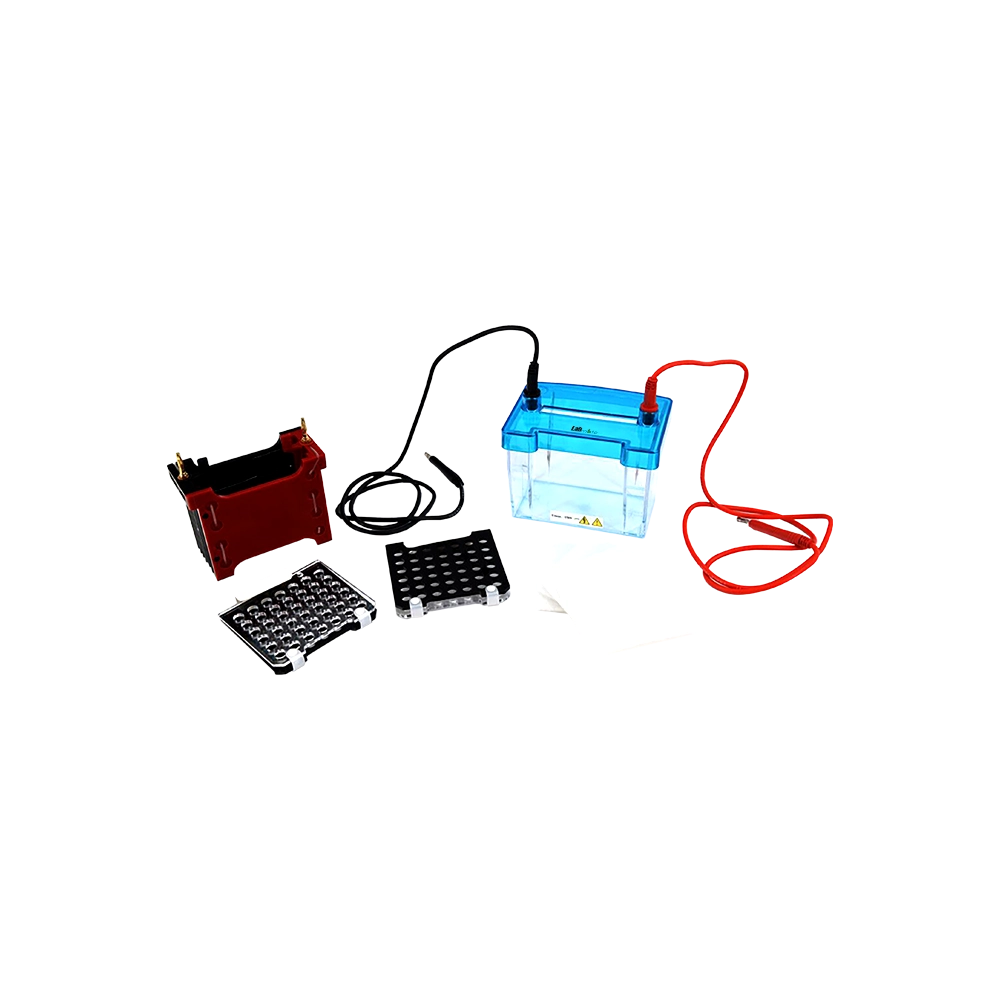

Trans-Blot Electrophoresis Cell LMES-C202 is a meticulously engineered tank body. Cell is precisely moulded to provide maximum transparency and leak-proof performance. It is composed of premium polycarbonate. Because of its platinum electrodes, reliability and longevity are guaranteed. An injection-moulded transparent buffer tank improves overall structural integrity.
Catalog Send Mail WhatsappSpecifications
| Blotting Area (L × W) | 87 × 95 mm |
| Buffer Volume | 400 ml |
| Continuous Working Time | ≥ 24 hours |
| Dimension (L × W × H) | 140 × 100 × 150 mm |
| Weight | 1.0 kg |
Features
Rapid transfer rate
Elevated transfer effectiveness
Buffer tank creates an electrically conductive environment
User-friendly design
Color-coded gel holding cassettes guarantee proper placement
Applications
Trans-Blotting Electrophoresis Cell is used for transferring proteins from gels to membranes in techniques such as Western blotting for molecular biology research.
Power Supply Selection
| Model | LMEPS-01 | LMEPS-02 | LMEPS-03 |
| Volt | 6 - 600 V | 6 - 600 V | 2 - 300 V |
| Current | 4 - 400 mA | 4 - 600 mA | 5 - 2000 mA |
| Power | 240 W | 1 - 300 W | 300 W |
| Dimensions (L × W × H) | 315 × 290 × 128 mm | 246 × 360 × 80 mm | 315 × 290 × 128 mm |
| Weight | 5 Kg | 3.2 Kg | 5 Kg |
