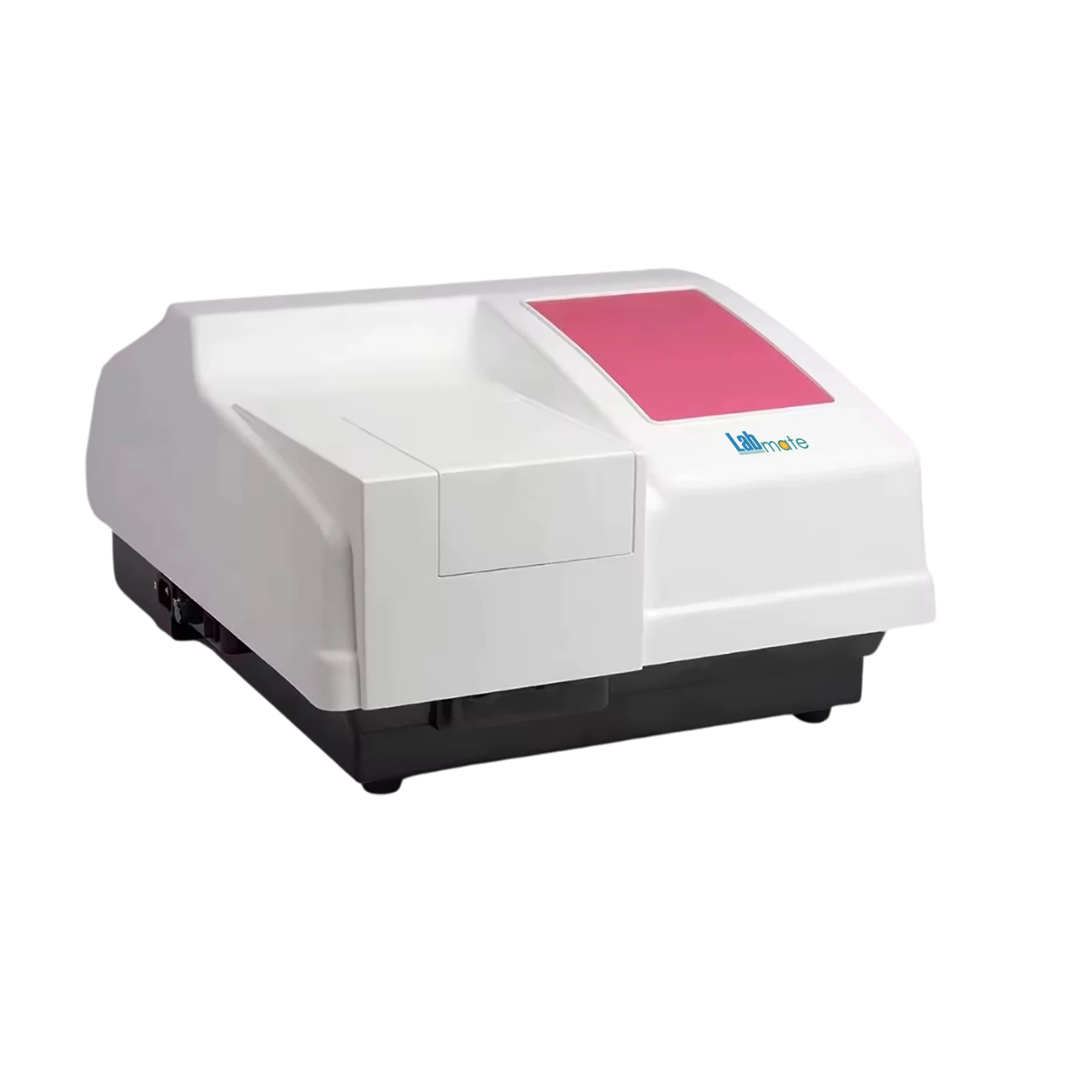

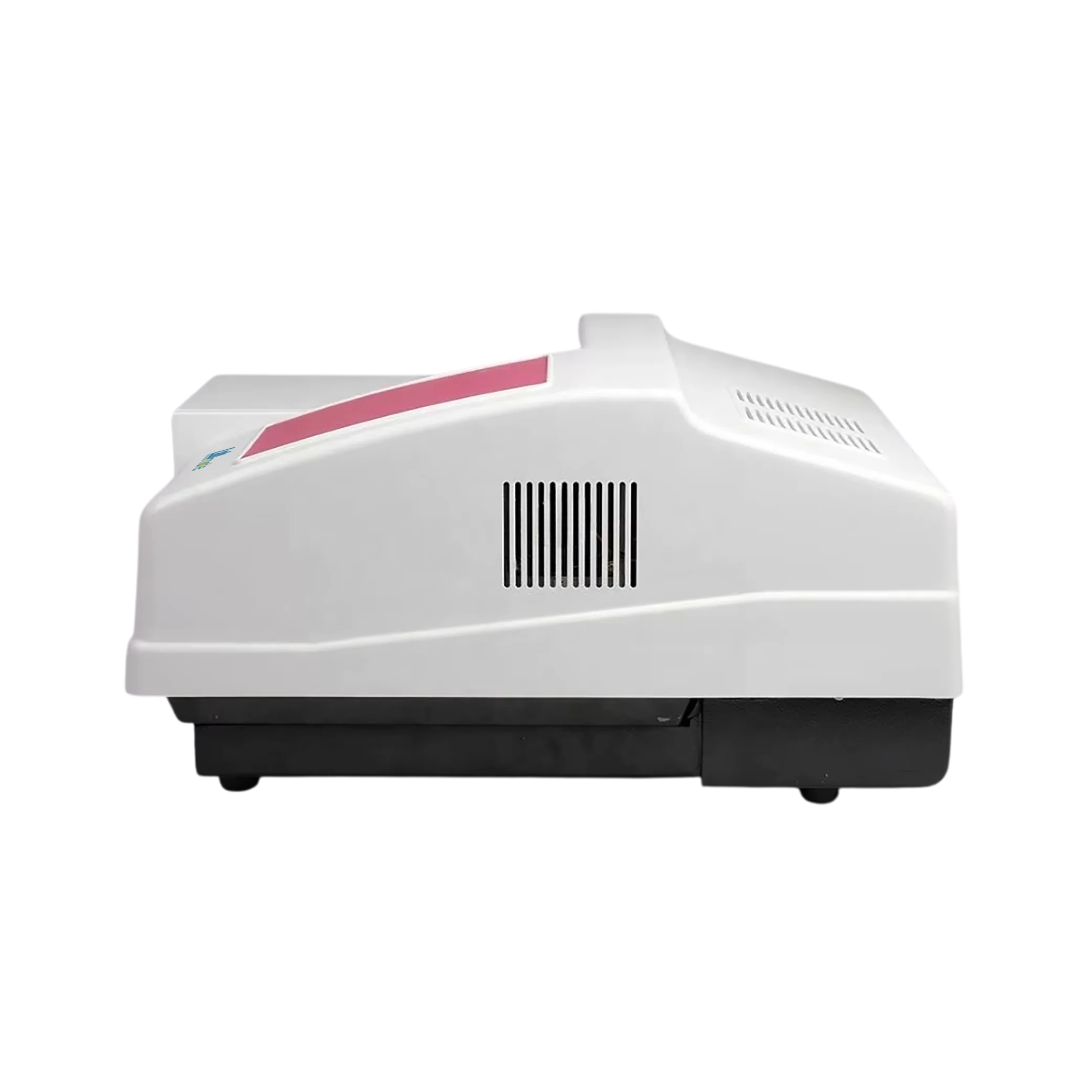

NIR Spectrophotometer LMNIR-A100

NIR Spectrophotometer LMNIR-A100

NIR Spectrophotometer LMNIR-A100 is incorporated with a grating monochromator optical system that operates at 5℃ and 35℃ temperatures. Equipped with Single-channel whole spectrum scanning covers a wavelength range from 900 to 2500 nm. Features a high-quality PTFE reference module and polystyrene wavelength standard filter for accurate calibration. Utilizes photomultiplier tube detection for sensitive and reliable measurement

Get Quote
Temperature Requirement 5 to 35℃
Humidity Requirement 5 to 85% RH
Analysis Time 1 minute or above
Wavelength Range 900 nm to 2500 nm
Wavelength Accuracy ≤ 0.2
Wavelength Reproducibility ≤ 0.05
Bandwidth 8 nm
Measurement Mode Transmission
Optical System Grating Monochromator
Stray Light ≤ 0.1%
Noise ≤ 0.0005 Abs
Port USB 2.0
Dimension 360 × 460 × 240 mm
Power Supply 90 to 250 V, 50/60Hz
Weight 12 Kg

point.png Operates on an 8 nm bandwidth for refined spectral resolution

point.png Integrated with real-time ambient temperature and humidity into spectrum file

point.png User-friendly design with no sample preparation provides no damage to samples

point.png Directed by transmission mode of measurement for analysis

point.png Designed with automatic reference calibration and monitoring wavelengths to ensure accurate and stable measurement results

Main Instrument 1 set


Power Cable 1 pc
Data Processing Software 1set
USB Cable 1pc
Fuse (2A) 2 pcs
10 mm quartz square sample cell 1 pair (2 pcs)
2 mm quartz micro sample cell 1 pair (2 pcs)

NIR Spectrophotometer plays a vital role in research, chemical, and pharmaceutical industries enhancing quality control, optimizing processes, and product development efforts.
