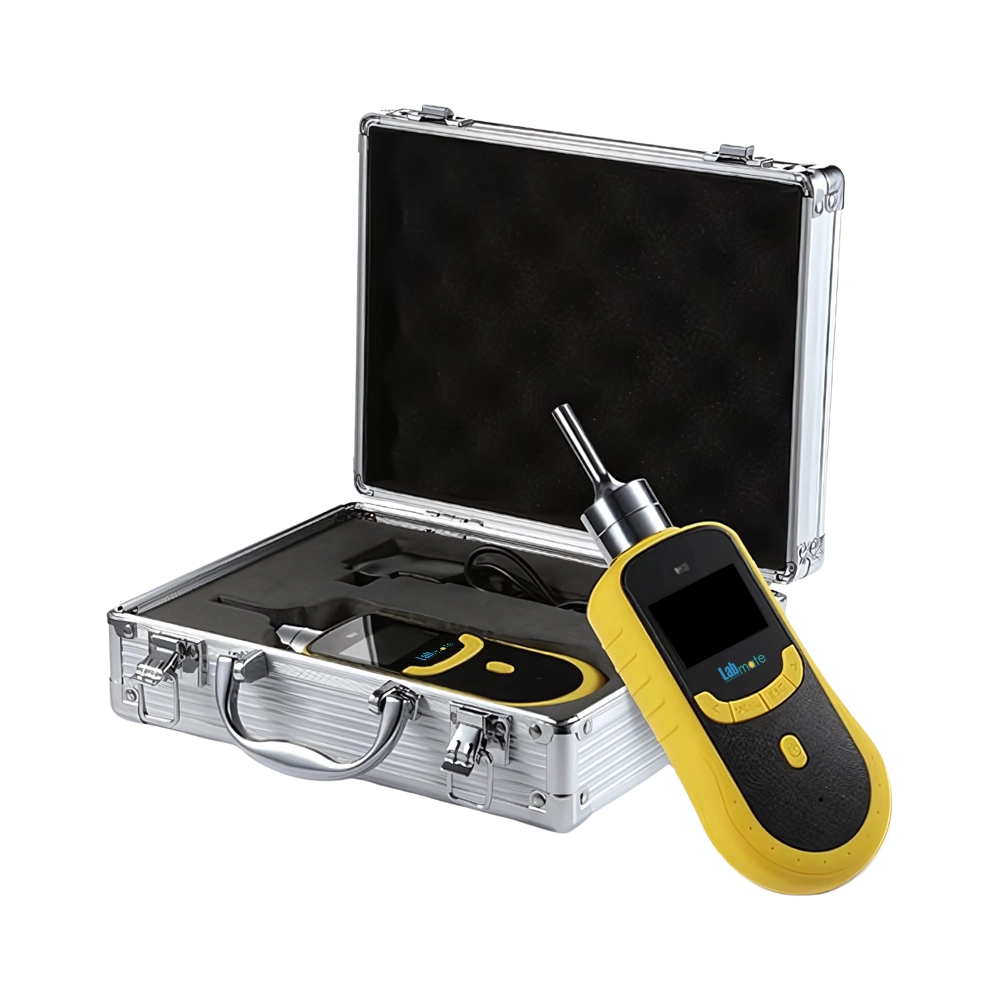

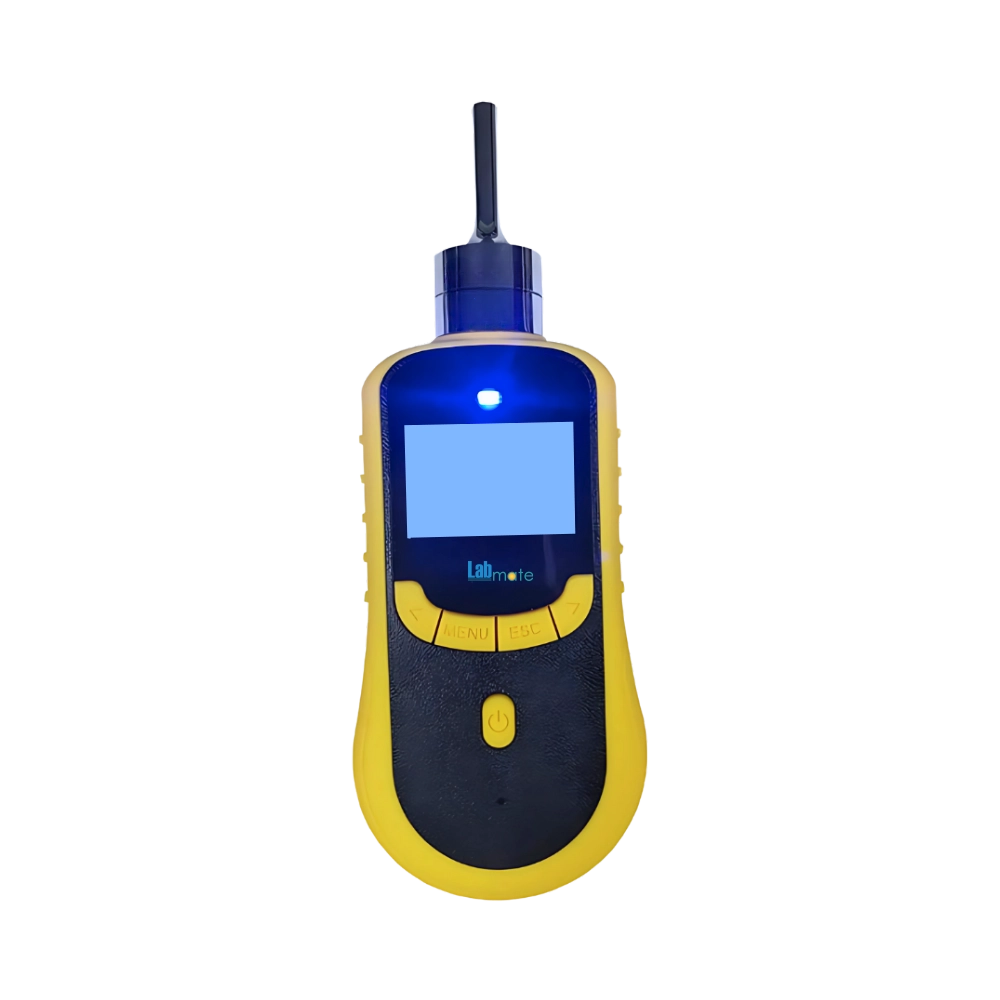

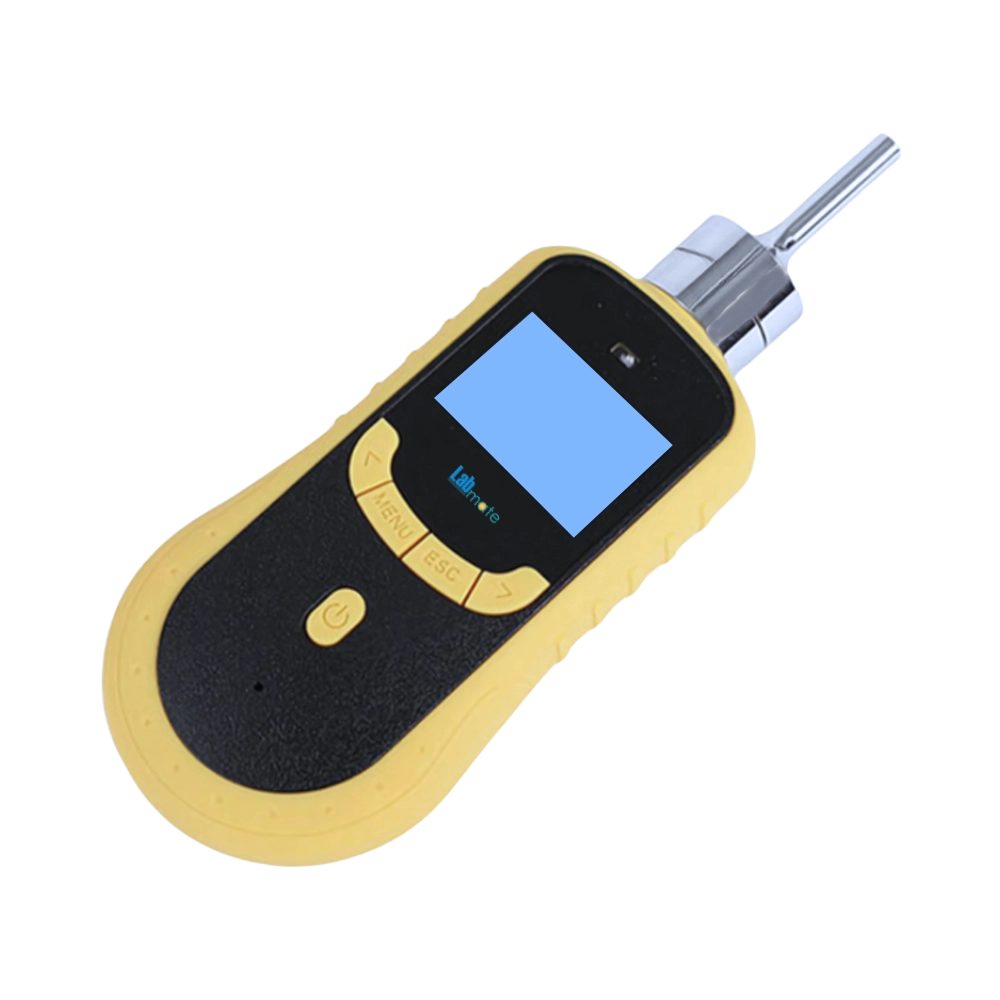

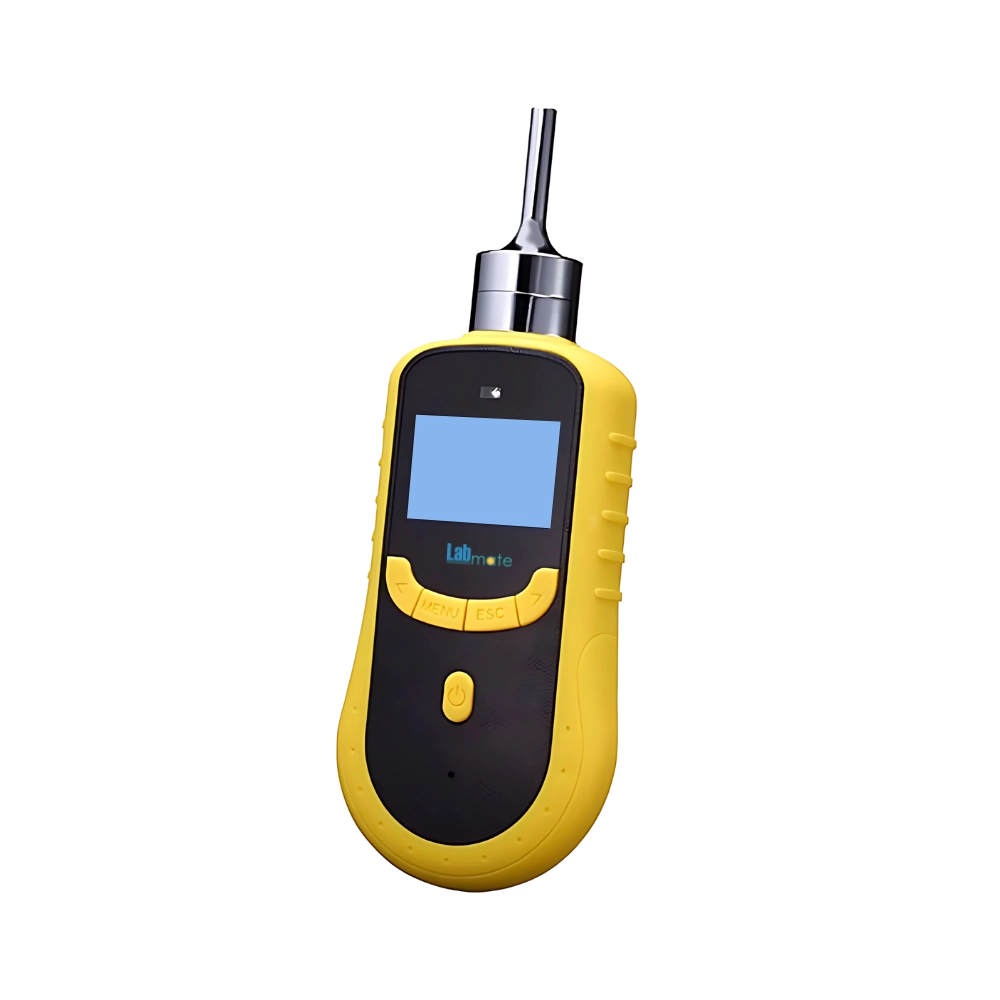

Handheld Ethylene Gas Detector LMEGD-A100 is designed to detect and measure the presence of ethylene gas in rugged and harsh environmental conditions. the detector is portable featuring a built-in sampling pump that operates at a flow rate of 1 L/min. Utilizes advanced gas sensor technology to detect ethylene gas accurately and with high sensitivity.
Specifications
| Sampling | With an internal sampling pump |
| Flow Rate | 1 L/min |
| Pumping Suction Selection | Ten grades |
| Gas | Ethylene (C2H4) |
| Storage | 100,000 data sets |
| Measure Range | 0 to 1000 ppm |
| Detection Time | 30 seconds |
| Resolution | 1ppm |
| Precision | 3 to 10% F.S. |
| Response Time | ≤ 10 s |
| Repeatability | ≤ ± 1% |
| Zero Shift | ≤ ± 1% (F.S./year) |
| Display | LCD dot matrix display |
| Temperature | -20°C to 50°C |
| Humidity | 0 to 95 % RH |
| Degree Of Protection | IP-66 |
| Alarm | Sound, light, vibration |
| Recovery Time | ≤ 10 s |
| Linearity Error | ≤ ± 1% |
| Gas Unit | Units are switchable |
| Battery | 3.6 V 2300 mAh lithium polymer rechargeable battery |
| Charging Time | 4 to 6 h |
| Operating Time | 100 h (pump off) |
| Dimensions | 205×75×32 mm |
| Weight | 300 g |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Handheld Ethylene Gas Detector LMEGD-A100 | $ 2050 | Each of 1 |
Features
Waterproof, dustproof, and explosion-proof for durability in harsh conditions
Offers measurement options in both ppm and mg/m³ for versatile use
Features an automatic calibration mode for ease of use
Option to restore to factory settings for calibration or reset needs
Equipped with audio-visual alarms, with customizable threshold values
Optional USB connectivity for data transfer
Extended working hours via a rechargeable battery
Made of dense plastic for sturdiness and protection
Includes an aluminum case for convenient device transport
Engineered to meet IP-66 standards
Optional Accessories
Data Logger
Applications
Primarily employed for ethylene gas detection, across various sectors such as the brewing and fermentation industry, cold storage facilities, agricultural research settings, chemical laboratories, paper manufacturing, and bio-pharmaceutical plants, among others.
Similar Products
$ 3362.5 / Each of 1
Frequently Asked Questions
1 What is a Handheld Ethylene Gas Detector?
A Handheld Ethylene Gas Detector is an apparatus designed to detect and measure the concentration of ethylene gas in the air.
2 How is Handheld Ethylene Gas Detector used in fruit ripening chambers?
It is used to monitor ethylene levels to ensure optimal ripening.
3 How does Handheld Ethylene Gas Detector help in greenhouse management?
It helps monitor ethylene concentration to prevent stress-induced wilting or flower drop, improving crop health and yield.
4 Is Handheld Ethylene Gas Detector useful for logistics and transport monitoring?
It can be used during the transport of fruits and vegetables to ensure that ethylene levels stay within safe thresholds, especially for ethylene-sensitive products like leafy greens and berries.
5 How do researchers use Handheld Ethylene Gas Detector in labs?
It is used to measure ethylene emissions during plant stress, ripening experiments, or genetic studies.
6 Can Handheld Ethylene Gas Detector be used to detect gas leaks in petrochemical plants?
It is used to identify potential leaks or emissions of ethylene during production, processing, or storage, ensuring worker safety and environmental compliance.
7 Can Handheld Ethylene Gas Detector be used for ventilation testing in ripening rooms?
It is widely used to check if ventilation systems are effectively removing excess ethylene gas, preventing over-ripening or safety risks in enclosed ripening chambers.
8 How is Handheld Ethylene Gas Detector used in composting or organic waste facilities?
It is used to monitor emissions, especially in enclosed composting systems, to meet environmental and odor control standards.
9 How is Handheld Ethylene Gas Detector used in ethylene pipeline inspection?
It is used for leak detection and safety inspections along ethylene pipelines and valves to prevent fire or explosion risks.
10 Can Handheld Ethylene Gas Detector be used in modified atmosphere packaging (MAP) environments?
It is used to ensure that ethylene levels remain controlled, especially for ethylene-sensitive produce.
