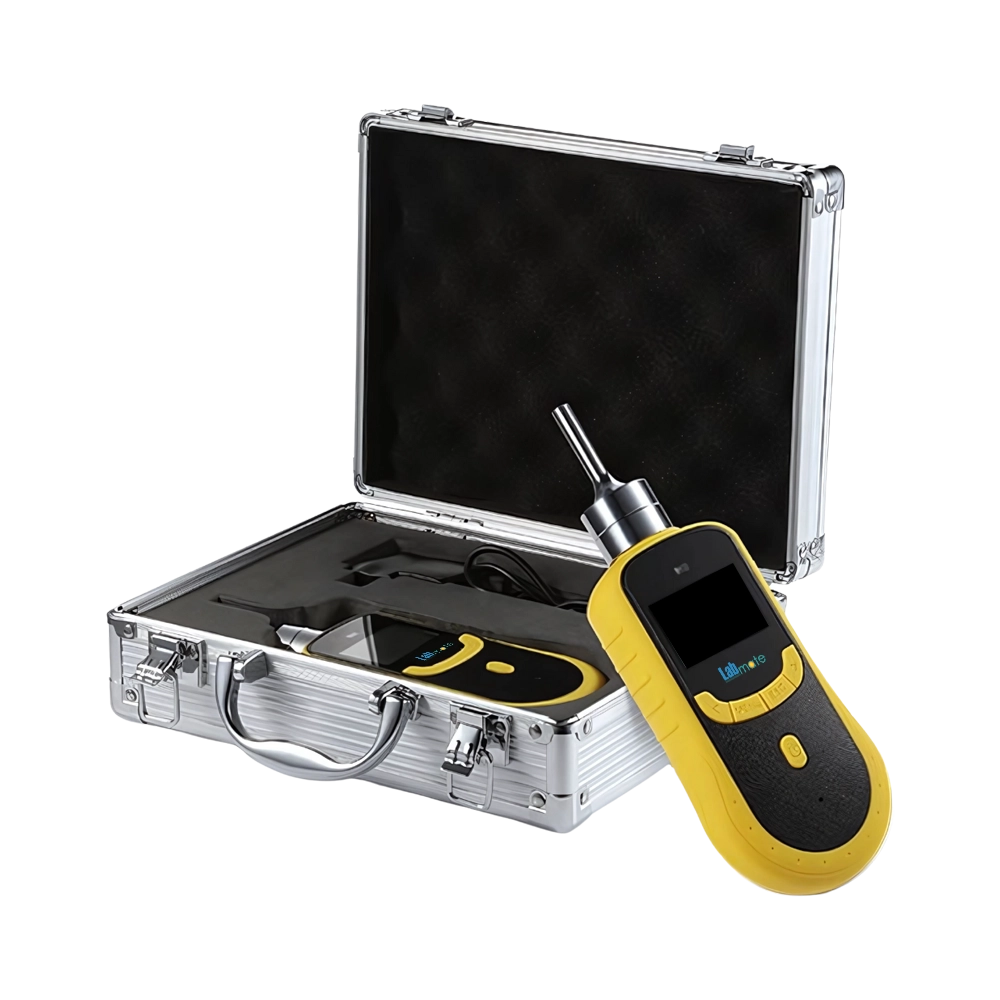

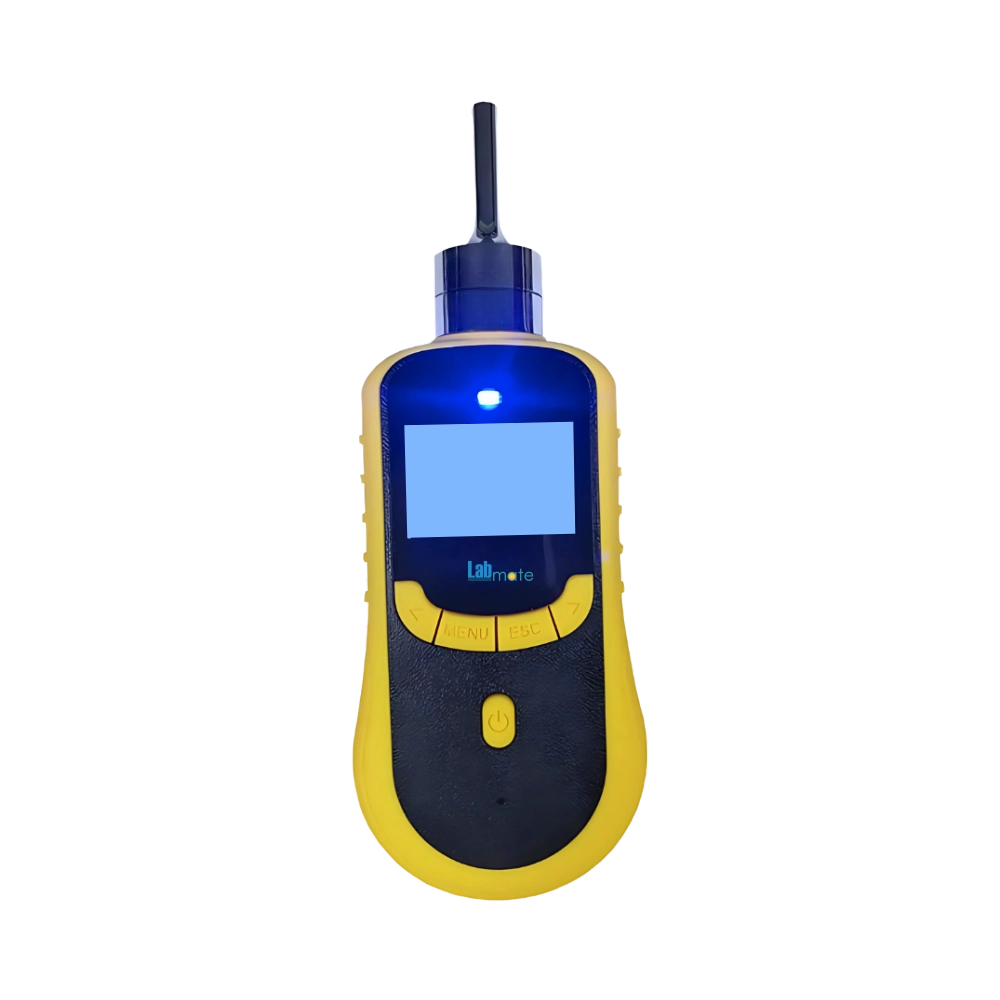

Handheld Ethylene Gas Detector LMEGD-A101

Handheld Ethylene Gas Detector LMEGD-A101 is designed to detect and measure the presence of ethylene gas in rugged and harsh environmental conditions. The detector is portable featuring a built-in micro-sampling pump that operates at a flow rate of 1 L/min. The measuring range of the detector is 0 to 10000 ppm, and it utilizes advanced gas sensor technology to detect ethylene gas accurately and with high sensitivity.

Catalog

Specifications

Sampling Method	Internal sampling pump
Flow Rate	1 L/min
Pumping Suction Grade	10
Gas Detected	Ethylene C₂H₄
Measurement Range	0 to 10000 ppm
Resolution	1 ppm
Precision	2% F.S.
Response Time	≤ 10 s
Repeatability	≤ ± 1%
Zero Shift	≤ ± 1% (F.S./year)
Display	LCD dot matrix display
Temperature Range	-20°C to 50°C
Humidity	0 to 90 % RH
Degree of Protection	Sound, light, vibration
Alarm	Sound, light, vibration
Recovery Time	≤ 10 s
Linearity Error	≤ ± 1%
Gas Unit	switchable
Operating Time	100 h (pump off)
Dimensions	340 × 240 × 140 mm
Weight	2 Kg

Pricing

Product	Price	Unit	Action
Handheld Ethylene Gas Detector LMEGD-A101	$2,460.00	Each of 1	Add to cart Buy now

Features

Monitor gas concentrations precisely with the LCD
Achieve gas collection via the adjustable sampling pump
Ensure accuracy with self-calibration and zero calibration functions
Restore factory settings instantly if needed
Maintain readings with temperature and pressure compensation
Get immediate alerts through the two-stage alarm system
Utilize the high-capacity rechargeable battery for extended use
Meet varied sampling needs with efficient pumping
Protect the detector in a durable casing
Transport conveniently with the included alloy suitcase


Standard Accessories

Aluminum suitcase Charging adapter

Optional Accessories

PC Software USB Port Data Logger

Applications

It is a multifaceted detection tool applicable across various sectors such as pharmaceuticals, food, electronics, agriculture, and more.
