Drug Dissolution Tester LMDDT-A100 is equipped with 12 vessels and 12 poles, six front and back. It offers automatic head movement, allowing quick and easy setup during testing. Equipped with magnetism-pumped circular water current for consistent heating and stable temperature. Featuring built in beeper that alerts at intervals and transitions automatically to next stage. Our tester ensures long lasting durability, corrosion resistance, and compliance with pharmaceutical standards.
Specifications
| Number Of Vessels | 12 |
| Number Of Poles | 12 |
| Position Of Vessels and Poles | 6 in front, 6 at back |
| Speed Range | 20 to 200 rpm |
| Speed Accuracy | ± 2 rpm |
| Temperature Range | Ambient to +45.0 ℃ |
| Temperature Stability | ± 0.3 ℃ |
| Preset Timing Nine Points | 1 to 999 min |
| Time Accuracy | ± 0.3 % |
| Basket Radial Run-Out | ± 1.0 mm |
| Paddle Radial Run-Out | ± 0.5 mm |
| Power Consumption | 1200W |
| Power Supply | 110V-220V, 50/60Hz |
| Dimension (L×W×H) | 960 × 540 × 480 mm |
| Packaging Dimension (L×W×H) | 1230 × 630 × 650 mm |
| Weight | 118 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Drug Dissolution Tester LMDDT-A100 | $ 7437.5 | Each of 1 |
Features
LED parameter display
Premium stainless steel construction
Automatic head movement
Intelligent control system
Stable temperature control
Real-time data display
Adjustable test settings
Uniform water heating
Standard Accessories
| Model No. | Accessory Name | Quantity |
| LMDDT-A100-SA1 | Settling basket | 14 |
Optional Accessories
| Model No. | Accessory Name |
| LMDDT-A100-OA1 | Basket |
| LMDDT-A100-OA2 | Paddle |
| LMDDT-A100-OA3 | Filter Head |
| LMDDT-A100-OA4 | Vessel (Amber) |
| LMDDT-A100-OA5 | Vessel (Clear, No Markings) |
| LMDDT-A100-OA6 | Rotating Basket Unit |
| LMDDT-A100-OA7 | Sample Nozzle |
| LMDDT-A100-OA8 | Filter Membrane (Consumable) |
Applications
Drug Dissolution Tester LMDDT-A100 detects speed and amount of drug dissolution and measures dissolution from tablet capsules and others in the prescribed liquid medium
Selection Guide
Drug Dissolution Tester LMDDT-A100 is ideal for laboratories conducting high-throughput dissolution studies, particularly in pharmaceutical research and quality control. With 12 vessels and 12 poles arranged conveniently (6 in front and 6 at the back), this model allows simultaneous testing of multiple samples, increasing efficiency and productivity. The broad speed range of 20 to 200 rpm provides flexibility to suit different dissolution profiles and drug release studies. This tester aligns with standard regulatory practices and is suitable for applications that require accurate control over test conditions. Customers seeking a robust, compliant, and efficient solution for routine or advanced dissolution experiments will find this model a perfect choice.

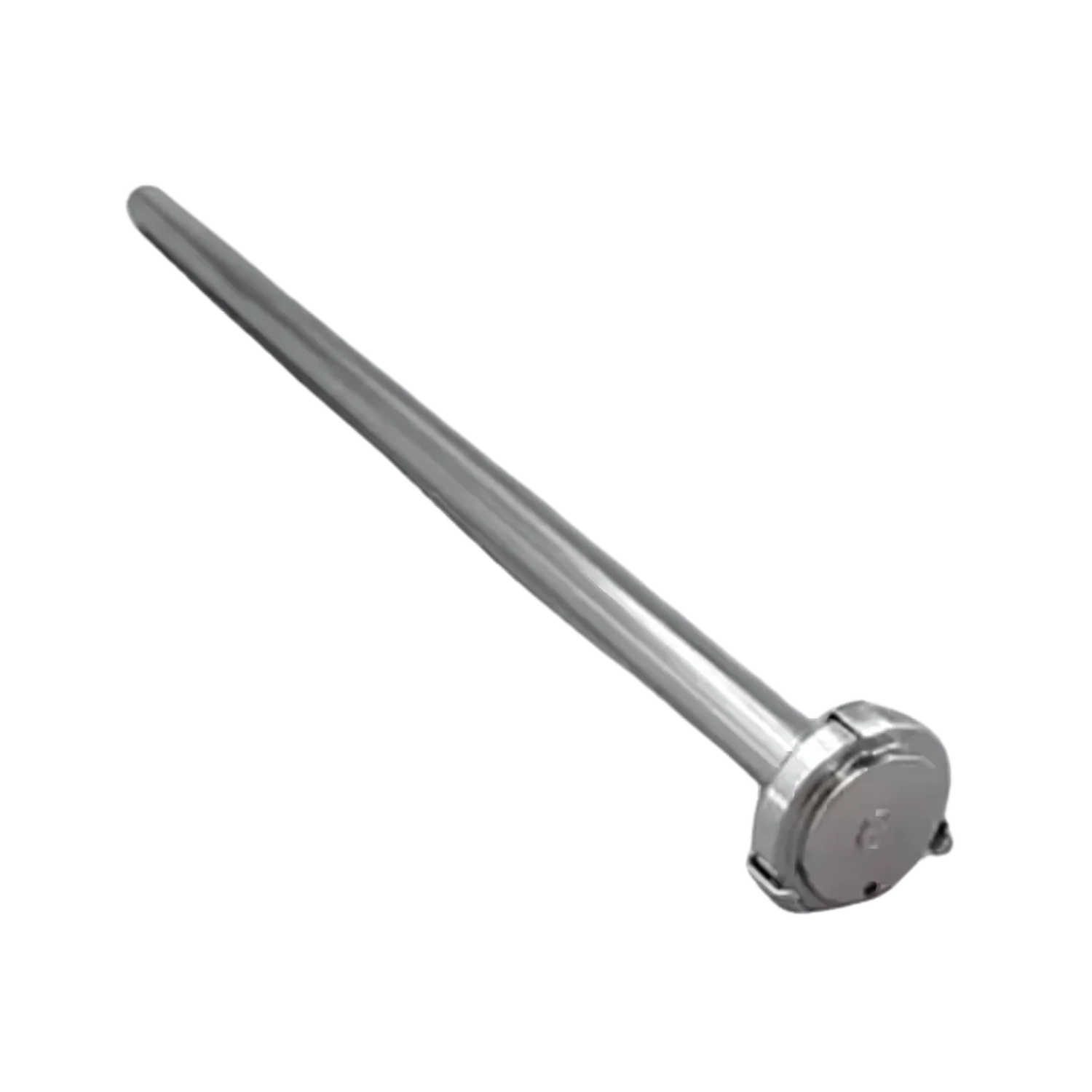

Basket Shaft- Corrosion-resistant stainless steel shaft engineered for secure basket attachment in dissolution testing applications.
Dissolution Tester Paddle – Facilitates uniform stirring of the test medium to ensure accurate drug release and dissolution rate measurement.
Filter head is a specialized piece of equipment used to filter samples collected from a dissolution test.

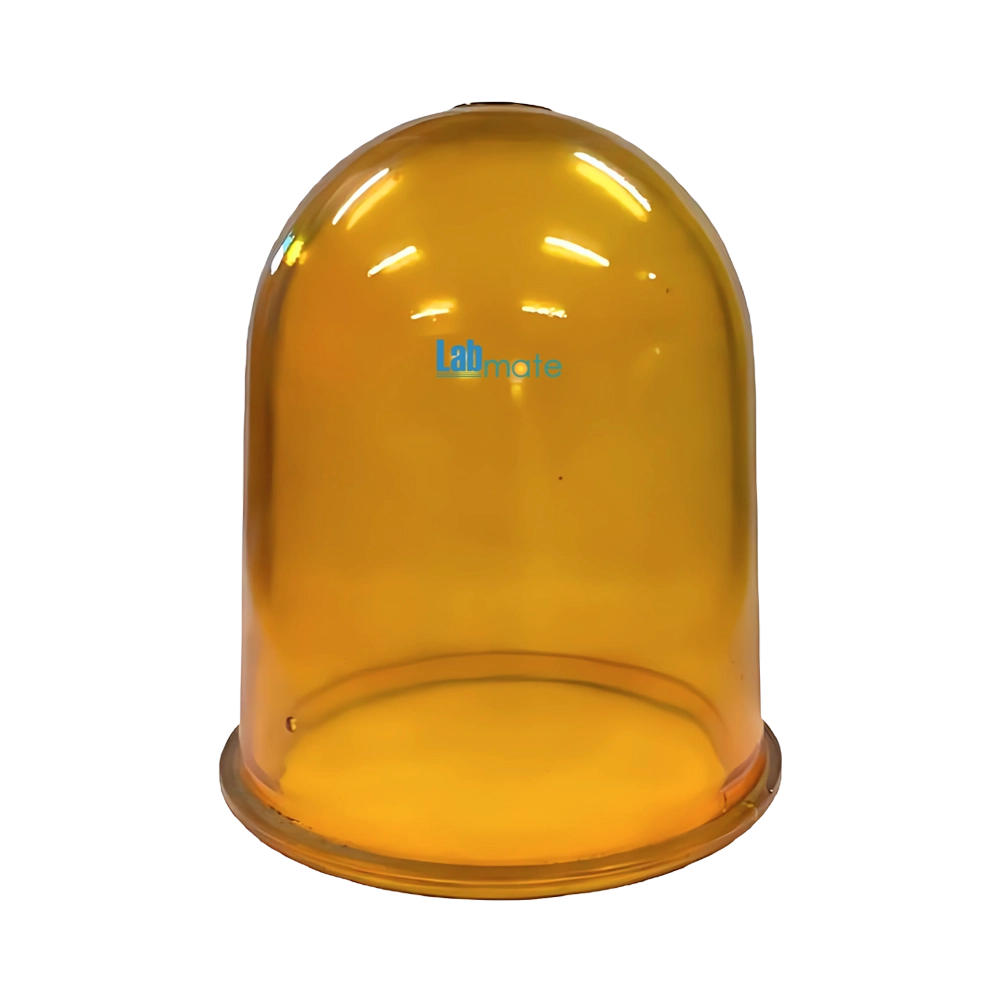

An amber vessel for a dissolution tester is used to hold light-sensitive samples during dissolution testing, protecting them from light degradation.
A clear, unmarked vessel is ideal for accurate visual observation during dissolution testing.
The rotating basket mechanism ensures even dissolution of solid dosage forms in the test medium.

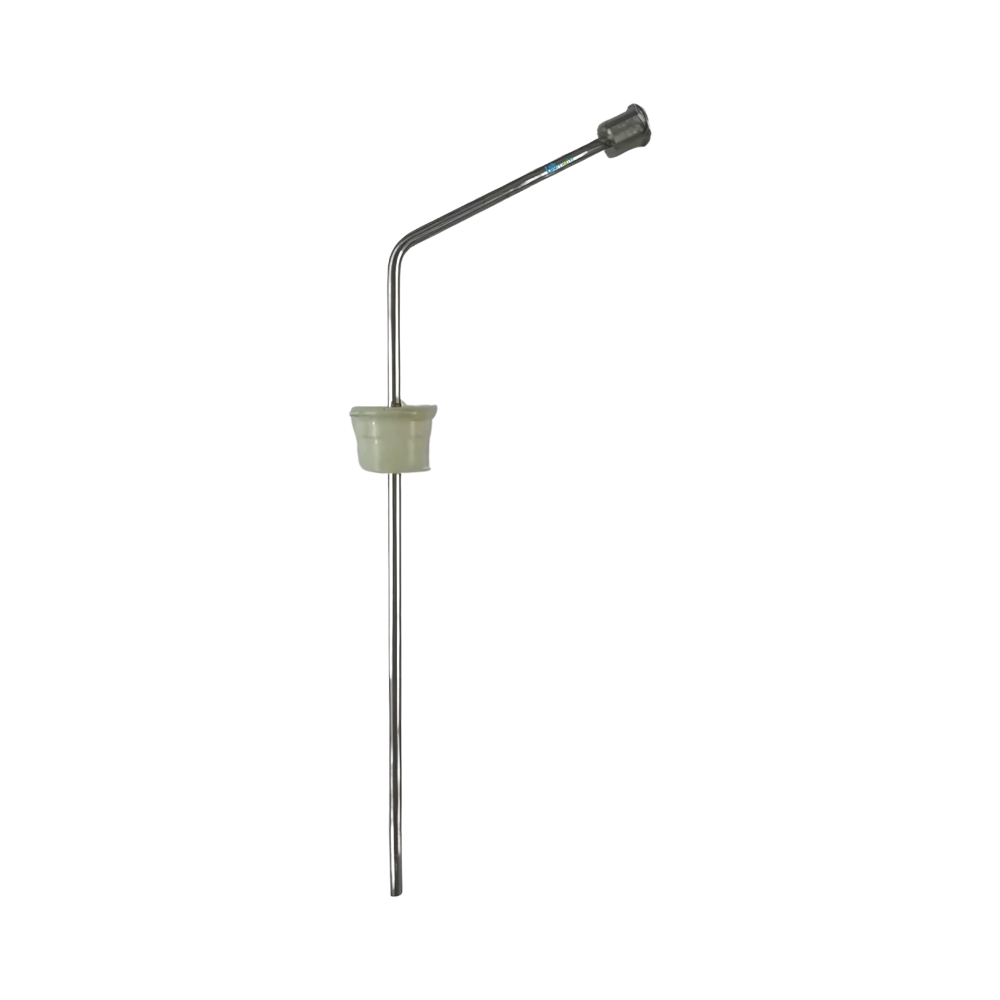

This nozzle ensures consistent sample extraction from the vessel without disrupting the dissolution process.
Ensures accurate analytical results by filtering out solid residues from the test medium.
Similar Products
$ 12382.5 / Each of 1
$ 14350 / Each of 1
$ 3975 / Box of 1
$ 10807.5 / Each of 1
Frequently Asked Questions
1 What is a Drug Dissolution Tester?
A Drug Dissolution Tester is an apparatus designed to measure the rate at which a drug dissolves in a specific medium thereby simulating conditions in human digestive system.
2 What is the role of temperature in Drug Dissolution Tester?
The temperature is set to 37°C to mimic the conditions in the human stomach or small intestine.
3 Can Drug Dissolution Tester be used for both immediate-release and controlled-release formulations?
It can be used for both immediate-release and controlled-release formulations.
4 What types of dosage forms can be tested using Drug Dissolution Tester?
It is used to test a variety of oral dosage forms such as tablets, capsules, powders, granules and suspensions.
5 Can Drug Dissolution Tester be used to predict bioavailability?
It is used to predict the bioavailability of a drug, as it provides insights into the drug absorption mechanism in the body.
6 Can Drug Dissolution Tester be used for both generic and brand-name drugs?
It is used for both generic and brand-name drugs in order to demonstrate that the release of the active ingredient is consistent and meets the regulatory standards.
7 Does pH affect Drug Dissolution Tester results?
It influences the solubility of a drug and its dissolution rate.
8 Can Drug Dissolution Tester be used for stability testing?
It is used in stability studies to assess the influence of environmental factors on the dissolution profile of a drug over time.
9 Can Drug Dissolution Tester be used for opaque or coated tablets?
It can be used for opaque or coated tablets.
10 Can Drug Dissolution Tester be used to assess bioequivalence?
It is used to compare the dissolution profiles of a brand-name drug and a generic drug, ensuring that both products release the active ingredients at the same rate thereby helping in assessing bioequivalence.
