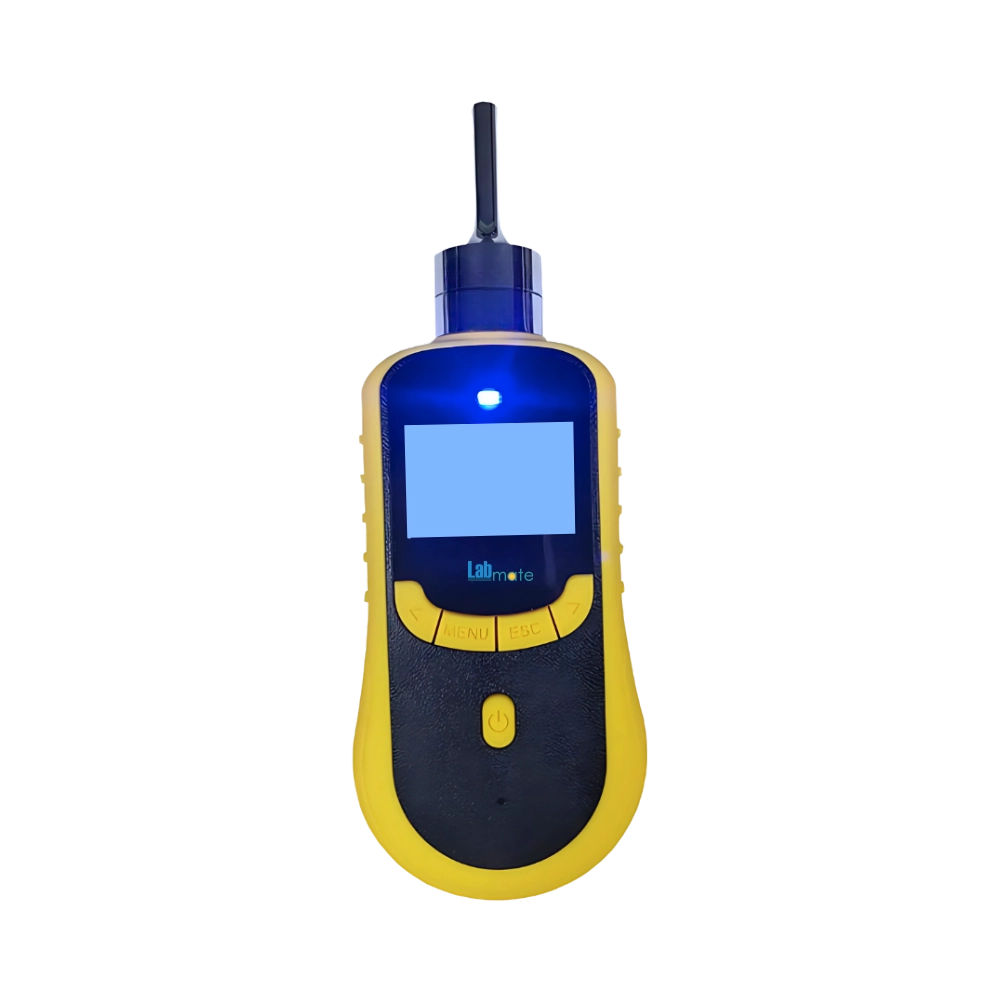

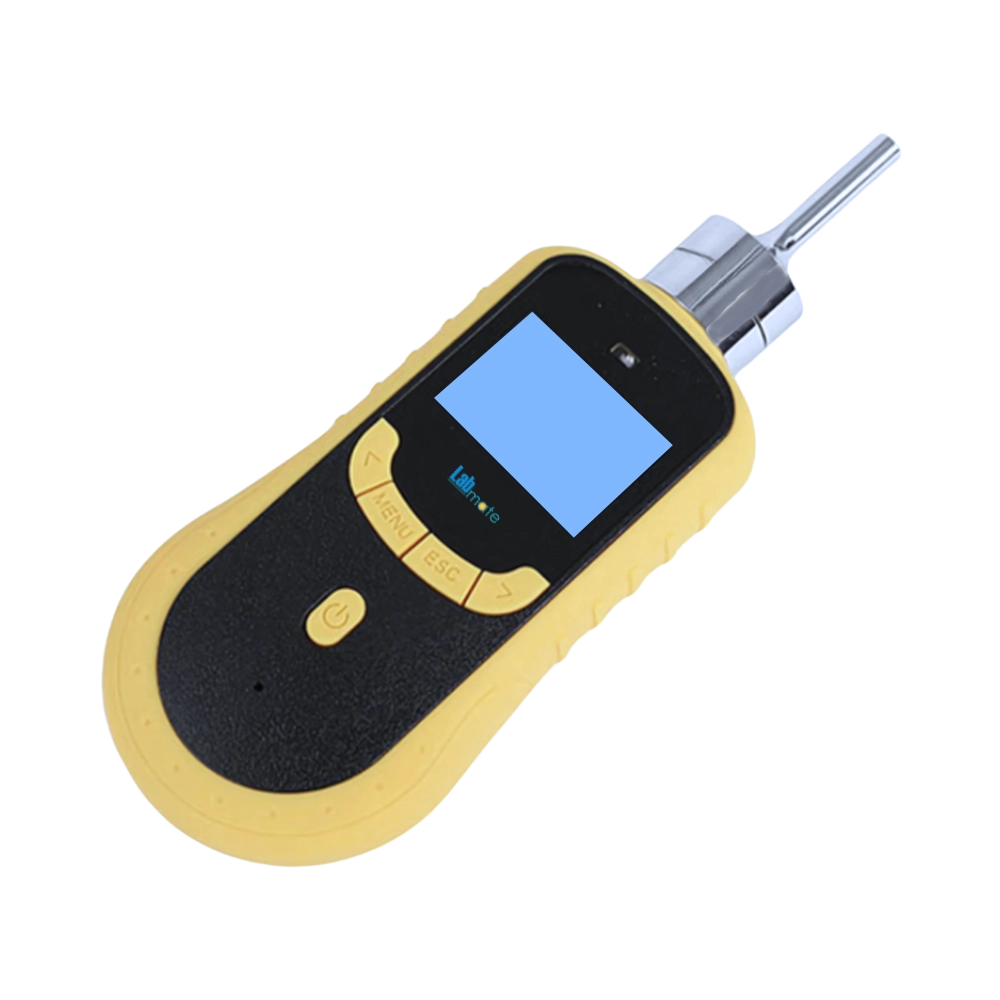

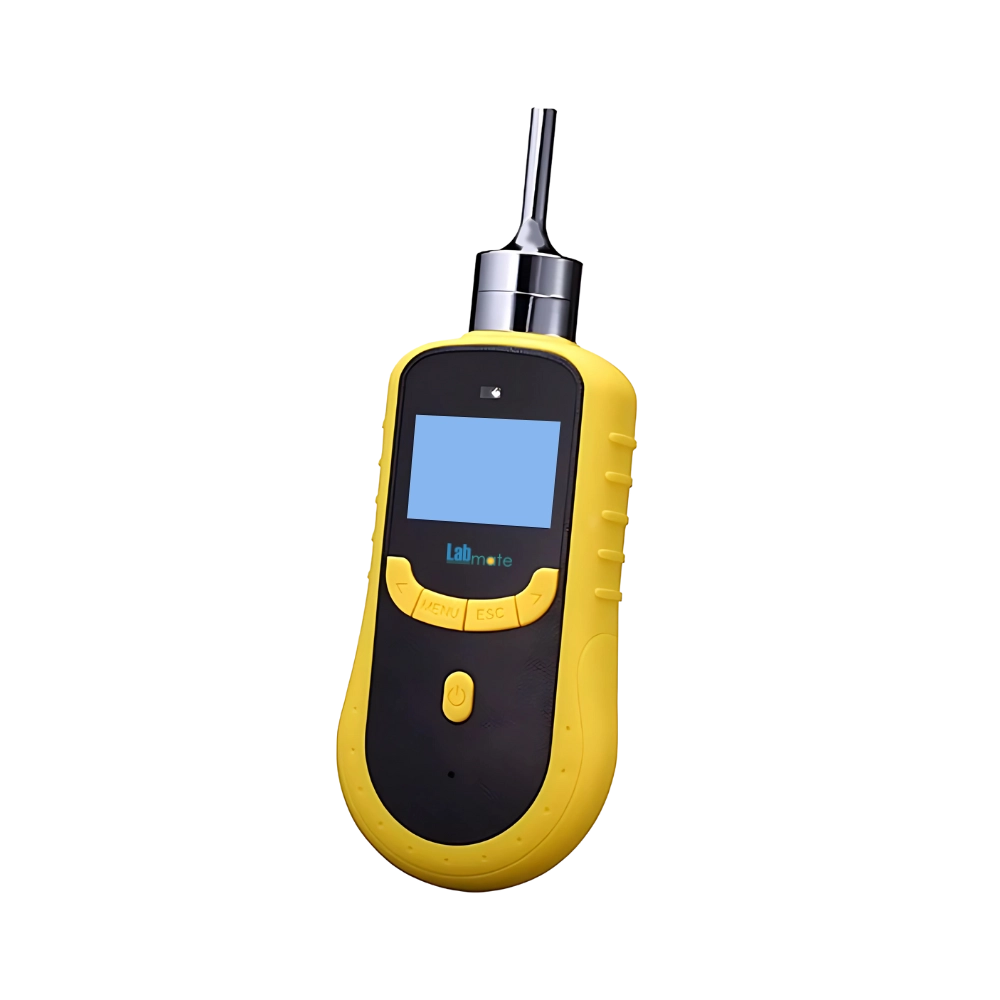

Portable Hydrogen Sulfide Gas Detector LMHGD-A100 quickly detects and measures H₂S gas within a range of 0 to 5000 ppm with exceptional accuracy. It features an internal sampling pump with high sampling capabilities and a high flow rate for better operation. Encased in a compact, rugged, high-intensity engineering plastic housing, its portable design allows versatility in various situations and environments.
Specifications
| Gas Detected | Hydrogen Sulfide (H₂S) |
| Detection Principle | Electrochemistry |
| Sampling Method | Pumping suction |
| Flow Rate | up to 1L/min |
| Pumping Suction Grade | 10 |
| Measure Range | 0-10ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm (option) |
| Resolution | 0.001ppm (0-10ppm), 0.01ppm (0-50ppm,0-100ppm), 0.1ppm (0-500ppm), 1ppm (0-1000ppm) |
| Precision | 1 % fs |
| Signal Output | High-speed data transmission by USB, available for data downloading and printing |
| Response Time | ≤ 10 s |
| Repeatability | ≤ ± 1 % |
| Zero Shift | ≤ ± 1 % (fs /year) |
| Operating Language | English |
| Temperature | -40° C to 70 °C |
| Explosion-Proof | Exia II CT4 |
| Alarm Mode | Sound, light, vibration |
| Recovery Time | ≤ 10 s |
| Linearity Error | ≤ ± 1 % |
| Display | LCD dot matrix display |
| Gas Unit | switchable |
| Humidity | 0 to 95 % RH |
| Degree Of Protection | IP66 |
| Operating Time | 100 hours (pump off) |
| Dimension | 205 × 75 × 32 mm |
| Net Weight | 300 g |
| Gross Weight | 800 g |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Hydrogen Sulfide Gas Detector LMHGD-A100 | $ 1537.5 | Each of 1 |
Features
Built-in micro sampling pump that offers 10 grades of suction for precise gas intake
Enables quick data transfer via USB, allowing download and print data efficiently
Equipped with self-calibration and zero calibration functions to enhance accuracy

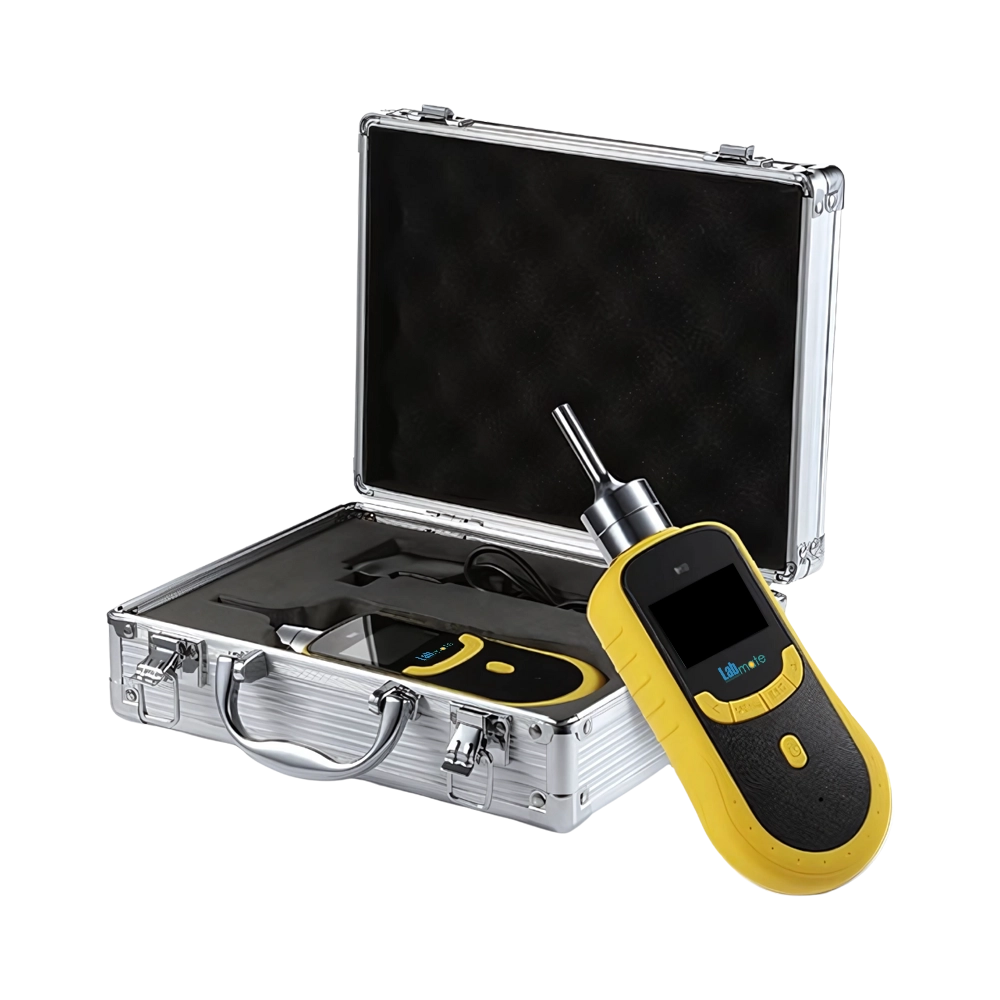

Housed in a sturdy aluminum suitcase and includes a charging adapter
Features a two-stage alarm with sound and light alerts
Switchable between gas concentration units, including ppm and mg/m³ Employs a high-capacity rechargeable lithium polymer battery for extended use
Enhanced with LCD matrix display showcases gas type, unit, and concentration
Utilizes a pumping sampling method, and the pumping suction
Applications
It finds applications across a spectrum of industries including petrochemicals, chemicals, agriculture, environmental protection, electronics, food processing, and pharmaceuticals.
Similar Products
$ 1162.5 / Each of 1
Frequently Asked Questions
1 What is a Portable Hydrogen Sulfide Gas Detector?
A Portable Hydrogen Sulfide Gas Detector is an apparatus designed to detect the presence of hydrogen sulfide gas in the air and alerts users when levels exceed safety thresholds.
2 How does Portable Hydrogen Sulfide Gas Detector work?
It works by using a sensor that reacts with hydrogen sulfide gas to measure its concentration and trigger alarms if levels are unsafe.
3 Can Portable Hydrogen Sulfide Gas Detector be used in confined spaces?
It is essential for confined spaces like tanks, sewers, and manholes to ensure safe entry and continuous monitoring of hydrogen sulfide gas levels.
4 Is Portable Hydrogen Sulfide Gas Detector suitable for offshore oil rigs?
It is widely used on offshore platforms to protect workers from hydrogen sulfide leaks during drilling, production, or maintenance.
5 Is Portable Hydrogen Sulfide Gas Detector usable in wastewater treatment plants?
It is commonly used in wastewater treatment facilities to monitor for hydrogen sulfide buildup during sludge processing, tank inspections, or maintenance work.
6 Can Portable Hydrogen Sulfide Gas Detector be used in mining operations?
It is essential for underground mining operations to detect hazardous gas levels, to ensure worker safety in confined and low-ventilation areas.
7 Can Portable Hydrogen Sulfide Gas Detector be used in agricultural settings?
It can be used in agricultural environments, such as animal manure pits, where hydrogen sulfide gas is a byproduct of decomposition, helping protect workers from dangerous exposure.
8 Is Portable Hydrogen Sulfide Gas Detector suitable for laboratory environments?
It can be used in laboratories, especially when dealing with chemicals or processes that might release hydrogen sulfide, ensuring the safety of laboratory personnel.
9 How does Portable Hydrogen Sulfide Gas Detector benefit workers in chemical processing plants?
It provides a reliable way to monitor for hydrogen sulfide leaks during chemical reactions or storage, ensuring the safety of employees working in potentially hazardous conditions.
10 Can Portable Hydrogen Sulfide Gas Detector be used in emergency evacuations?
It can be carried by evacuation teams to detect dangerous gas concentrations in affected areas, providing real-time data to guide safe exit routes and response plans.
