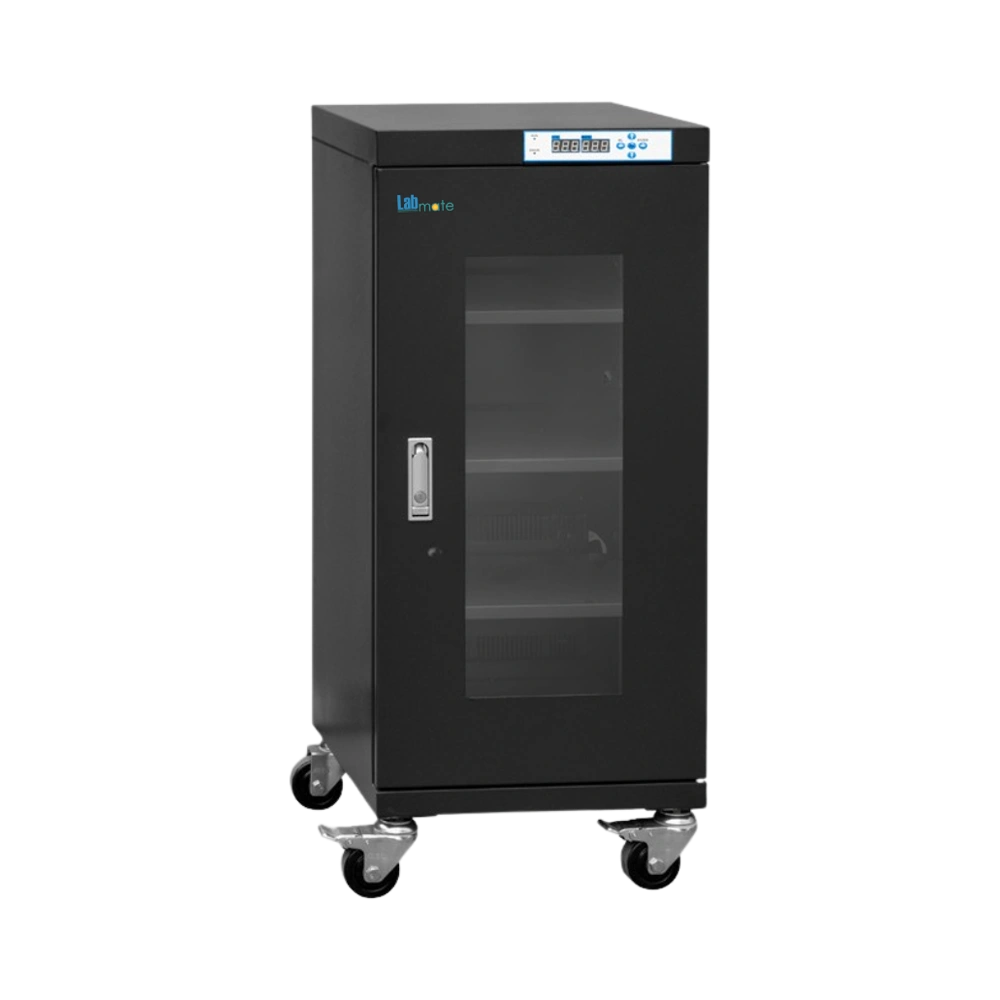

Desiccator Dry Cabinet LMDCC-A101 is designed with a spacious 160 L capacity for moisture-free storage over extended periods. Built with electrostatic discharge (ESD) safe materials to prevent static build-up and protect sensitive components. It features a durable black finish resistant to chemical exposure and surface degradation. It offers an ergonomic handle and balanced hinge for smooth door access and effective sealing. Our Desiccator Dry Cabinet includes a transparent observation window to monitor contents without opening.
Specifications
| Storage Capacity | 160 L |
| Humidity Range | 20% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 1 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 446 × 422 × 848 mm |
| Exterior Dimension(W×D×H) | 448 × 450 × 1010 mm |
| Net Weight | 31 Kg |
| Gross Weight | 43 Kg |
Features
Stable Humidity Control
Rapid Recovery Time
3 Adjustable Shelves
Digital LED Display
Corrosion-Proof Interior
Optional Accessories
| Model no. | Accessory |
| LMDCC-A101-A1 | Over Humidity Buzzer Alarm |
| LMDCC-A101-A2 | Open Door Buzzer Alarm |
| LMDCC-A101-A3 | Three-Color Flashing Light Alarm |
| LMDCC-A101-D1 | Data Logging System With USB Interface |
| LMDCC-A101-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-A101 is ideal for safe storage of optical fibers, lenses, and other delicate components that requires consistent humidity control.

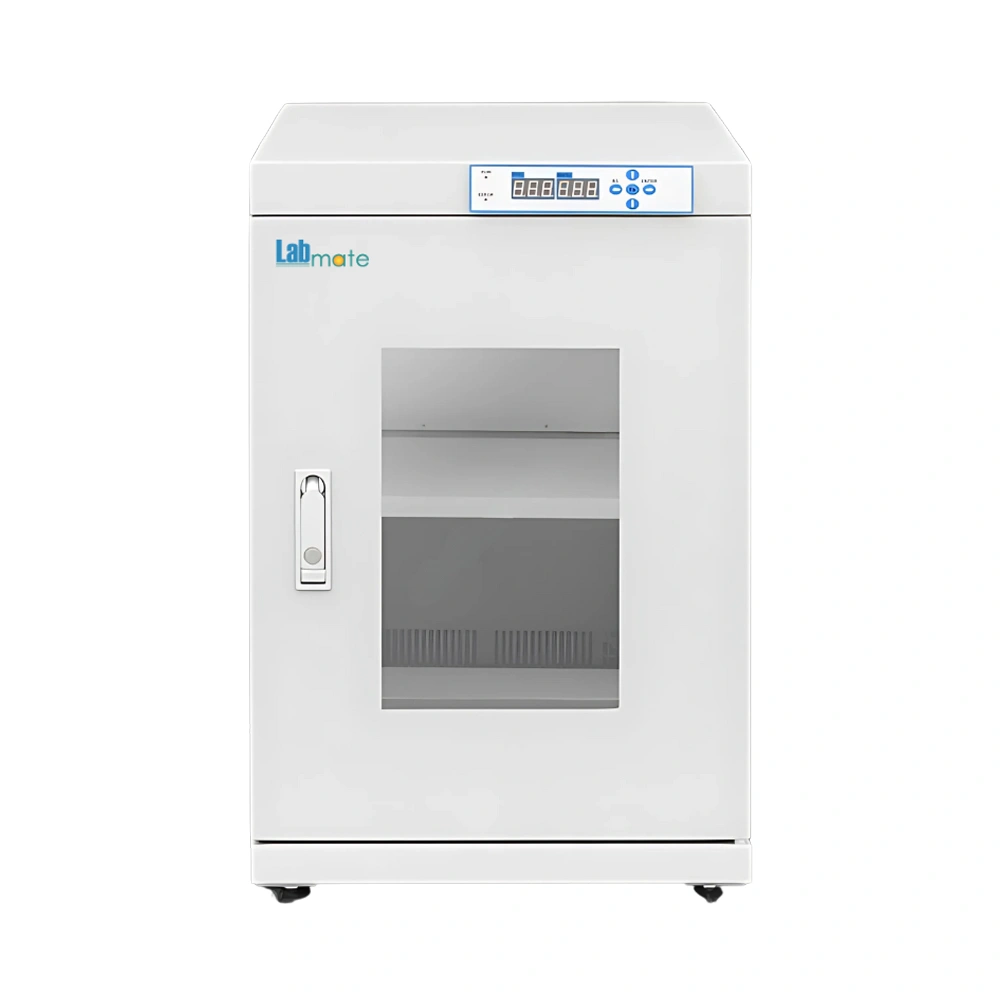

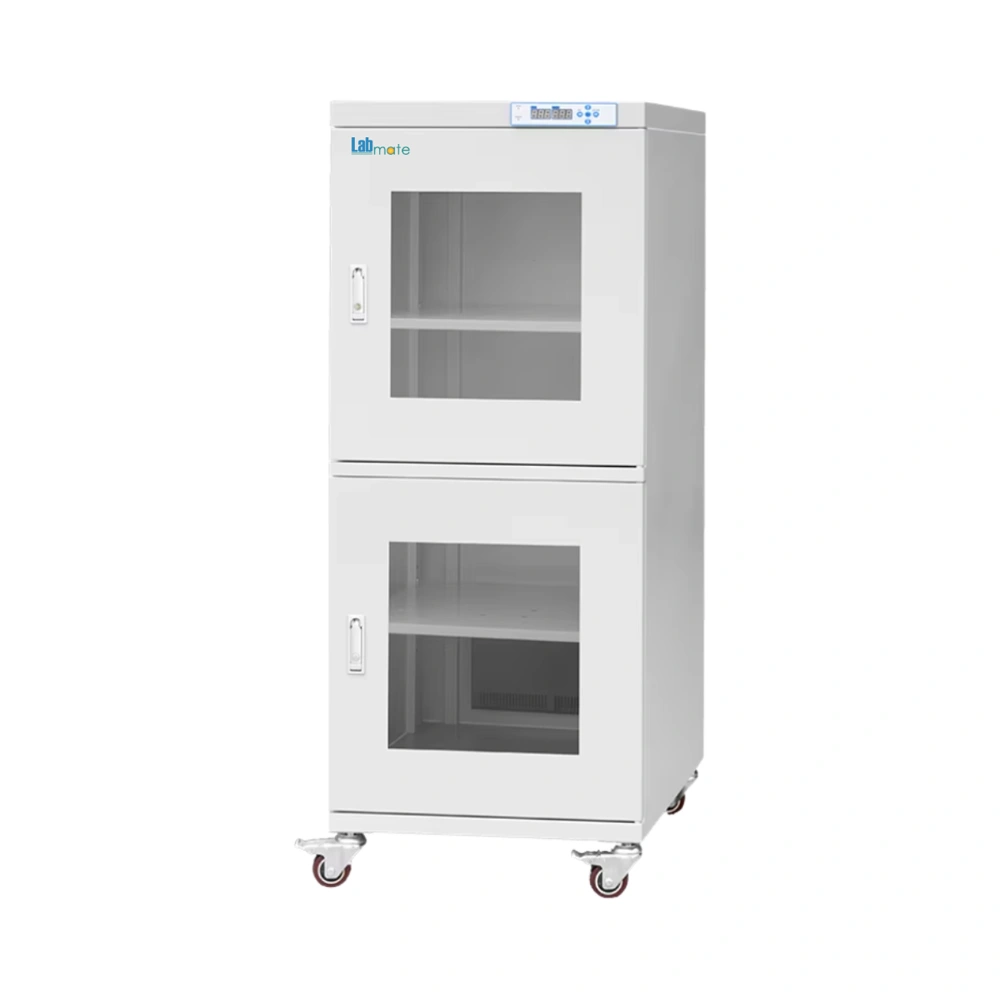

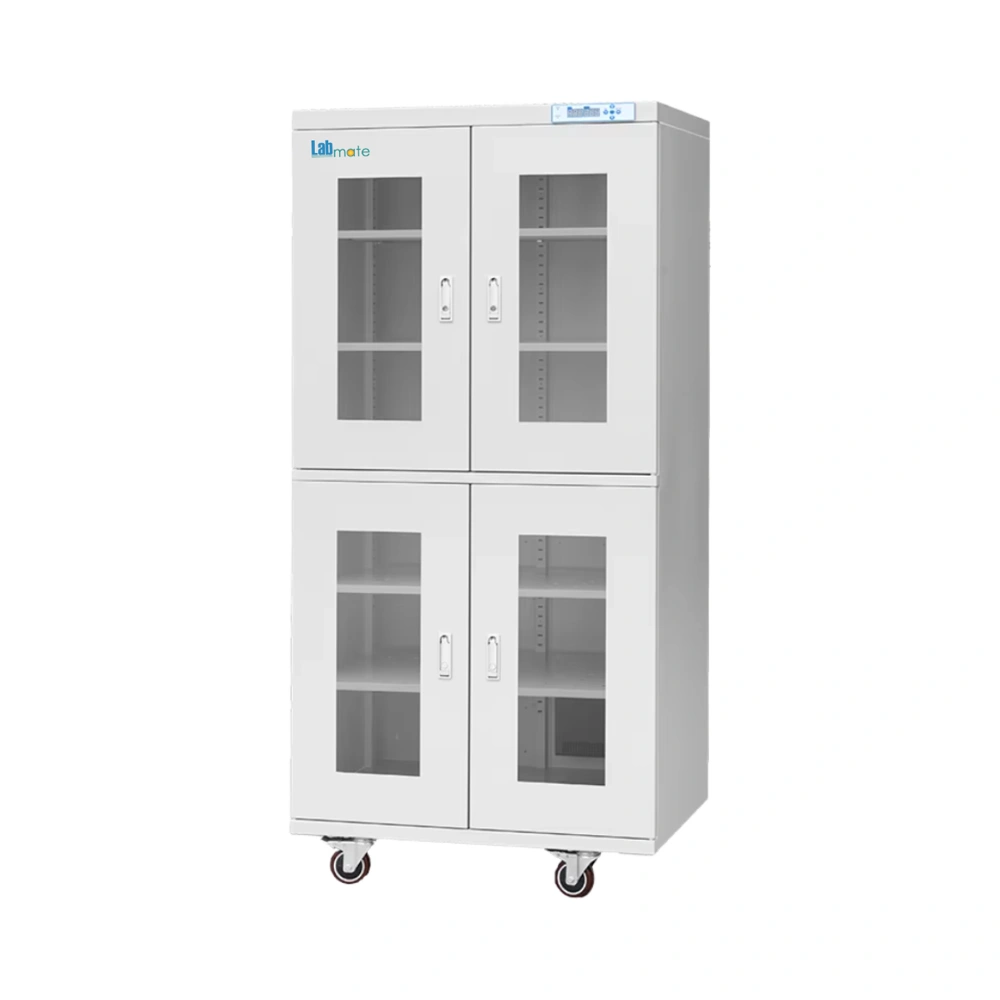

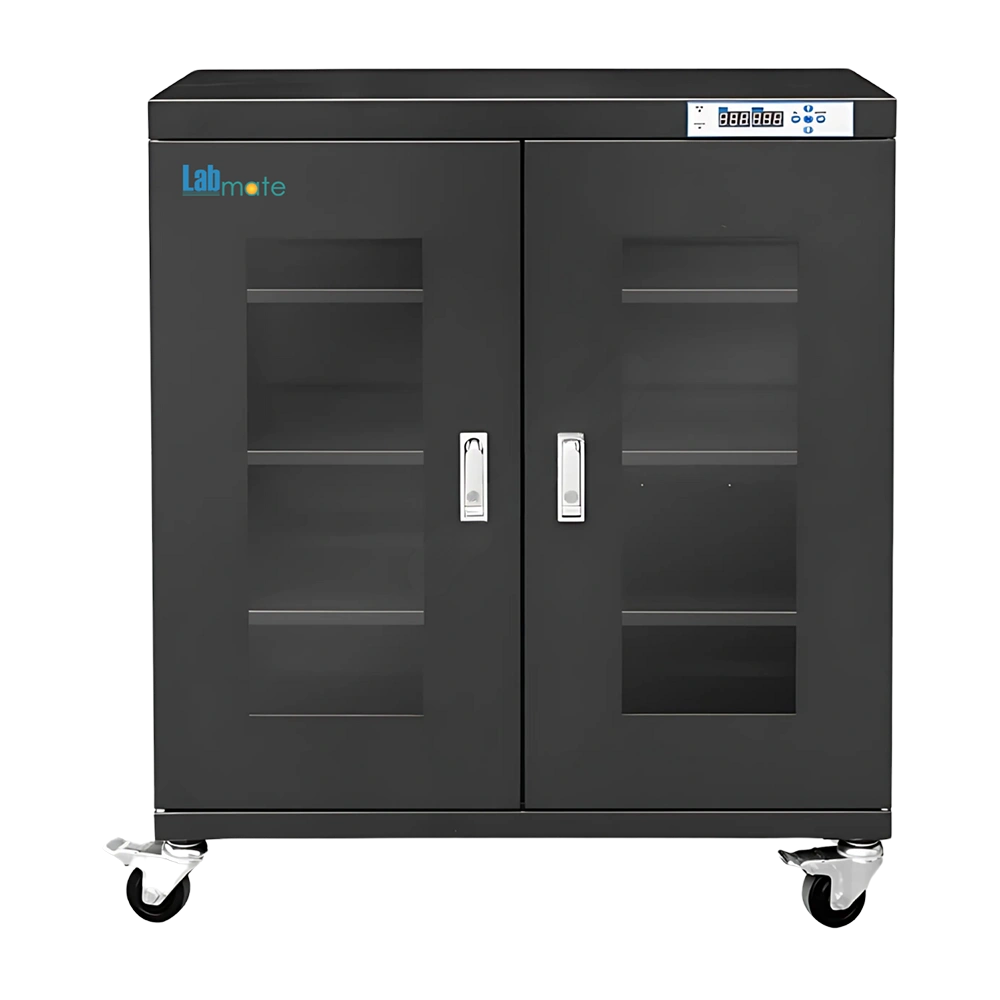

Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
