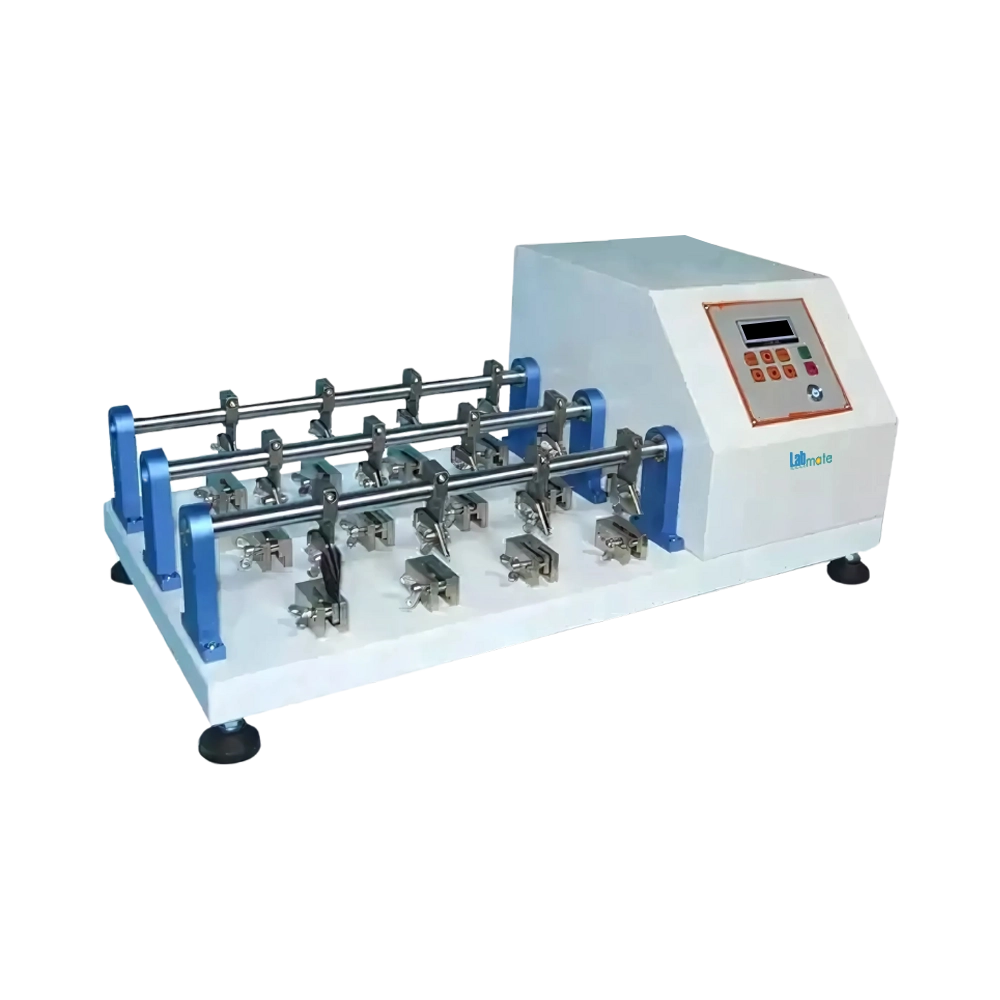

Flexometer LMFLM-A100 is designed with 12 workstations, allowing for the simultaneous testing of various samples. It operates at a testing speed of 100 ±5 cycles per minute. Constructed from stainless steel with a scratch-resistant finish, it ensures exceptional durability and reliability. Engineered to test the flexibility and bending resistance of materials such as leather and rubber.
Specifications
| Clamping Tool | 12 Workstations |
| Test Piece Size | 70×45 mm |
| Bending Angle | 22.5˚ |
| Counter | LCD 0 to 999, 999 |
| Speed | 100 ±5 cpm |
| Power | 0.2 W |
| Power Supply | AC 220V 50Hz |
| Dimensions | 78 × 46 × 32 cm |
| Weight | 78 kg |
Features
Allows customization of key parameters like flex cycles and speed
Employs a precise mechanism for consistent testing
Securely anchors the material specimen during testing

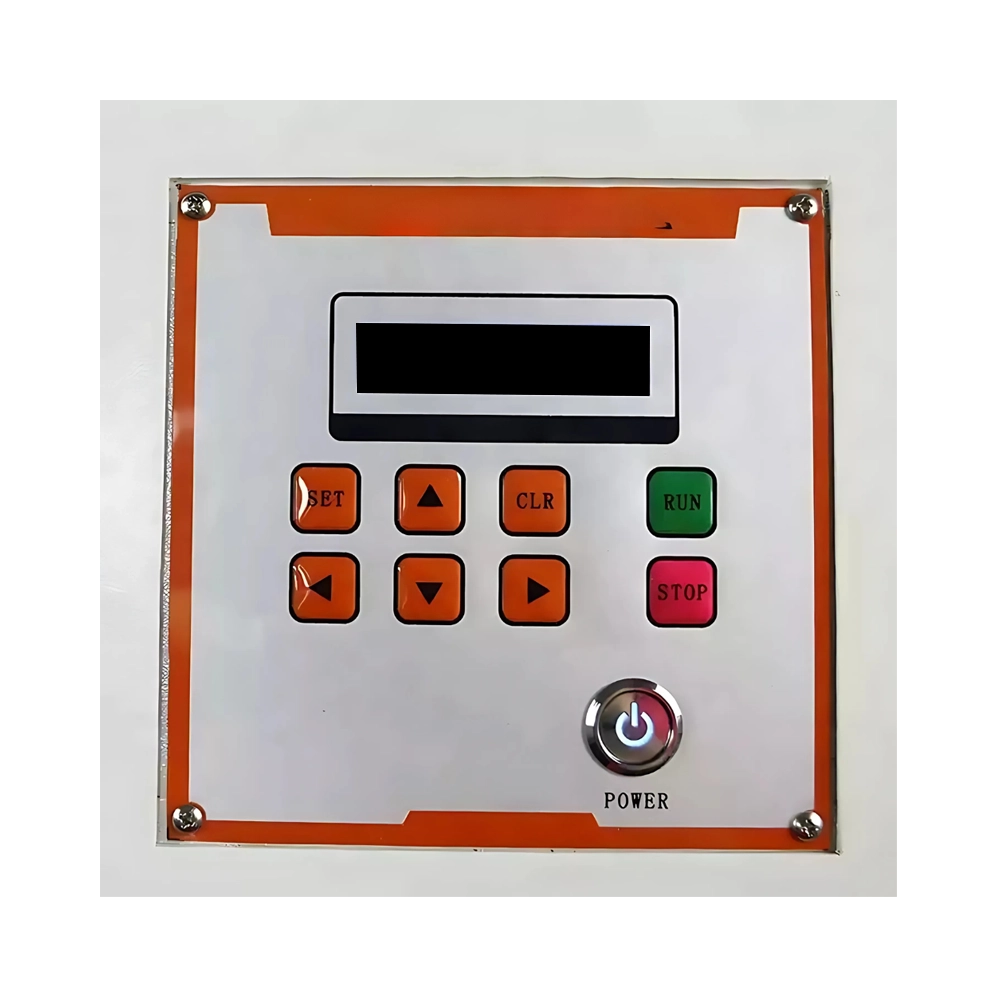

Equipped with a counter to track the number of flex cycles during testing
Operators can inspect the material for signs of wear and tear during the test
Facilitates quick and accurate calibration
Ensure optimal testing with minimal power consumption
Includes safety measures for operator well-being during testing
Applications
Flexometer is used in various industries such as Plastic and Polymer Industries, Quality Control Laboratories, Research and Development, and more for evaluating the flexibility and bending properties of materials.
Frequently Asked Questions
1 What is a Flexometer?
A Flexometer is an apparatus designed to test the flexibility & bending resistance of materials such as leather & rubber.
2 How does a Flexometer work?
It works by measuring the bending angle of an object.
3 Does Flexometer track number of flex cycles?
It is equipped with a counter to track number of flex cycles during testing.
4 Is it possible to inspect the material during test?
It is possible to inspect the material for signs of wear & tear during test.
5 The accuracy of Flexometer is dependent upon what factors?
It depends on Flexometer type, calibration as well as design.
6 Is Flexometer easy to use?
It is user-friendly & provides reliable results.
