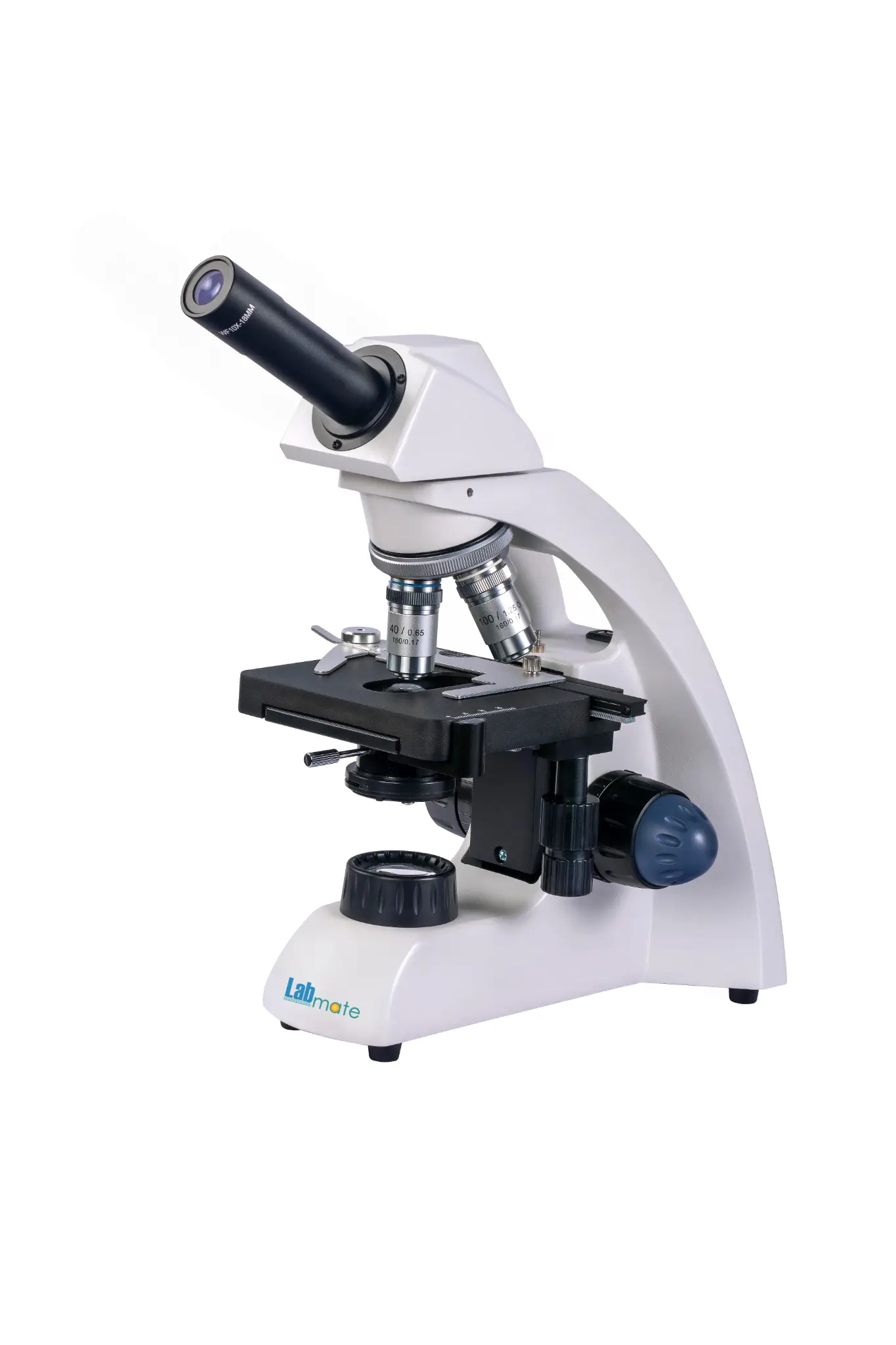

Biological microscope LMBM-414

Overview

Biological microscope LMBM-414 is an ergonomically designed monocular viewing head microscope inclined at an angle of 45° with a zoom magnification range from 40 to 1600X. Equipped with microscope and CCD camera that can be linked together for digital microscopic photography. For observation of the specimen, high-quality 195 achromatic objectives are used.

Specifications :
Optical System Finite Optical System
Viewing Head Monocular viewing head, 45° inclined, 360° rotation
Magnification 40X to 1600X
Objectives 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Eyepiece Wide field WF10X/18mm and Wide field WF16X/15mm
Nosepiece Inward, quadruple revolving nosepiece
Focusing system Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm
Stage Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm
Condenser Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob
Illumination 3W LED lamp, brightness adjustable
Power External power supply (adapter), AC 100V to 240V, DC 5V/2A
Voltage 220 V, 50 Hz
Weight 10 kg
Features :
  • -  Finite optical system for effective imaging
  • -  High zoom magnification range for obtaining clear images
  • -  Monocular (45° inclined) viewing head for convenience of the user
  • -  Built-in handle for easy access
  • -  CCD camera attachment for digital photography
Optional Accessories :

Upper light source


Phone adapter
Digital Camera 3 MP for Trinocular
Digital Camera 5 MP for Trinocular

Applications :

It is widely used for microscopic examination across medical, tissue culture, gemology, metallurgy, electrical board inspection, and other fields.
