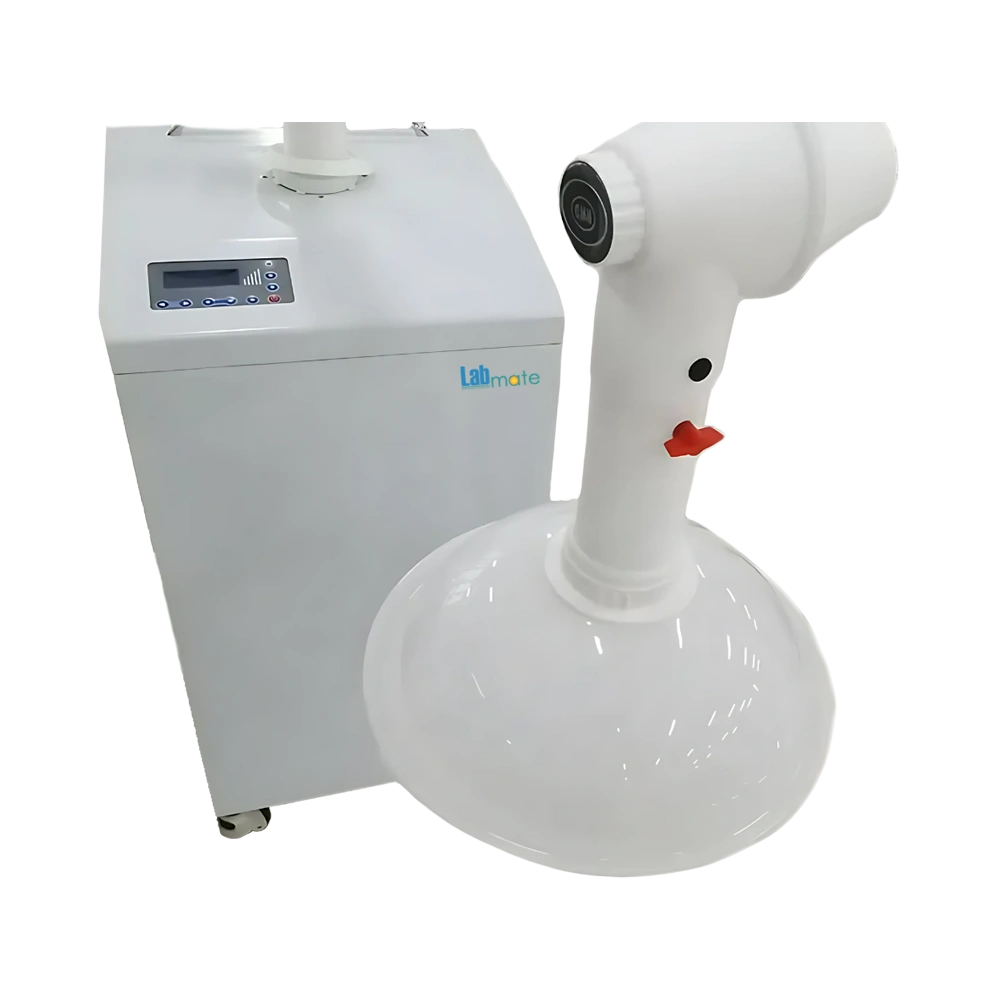

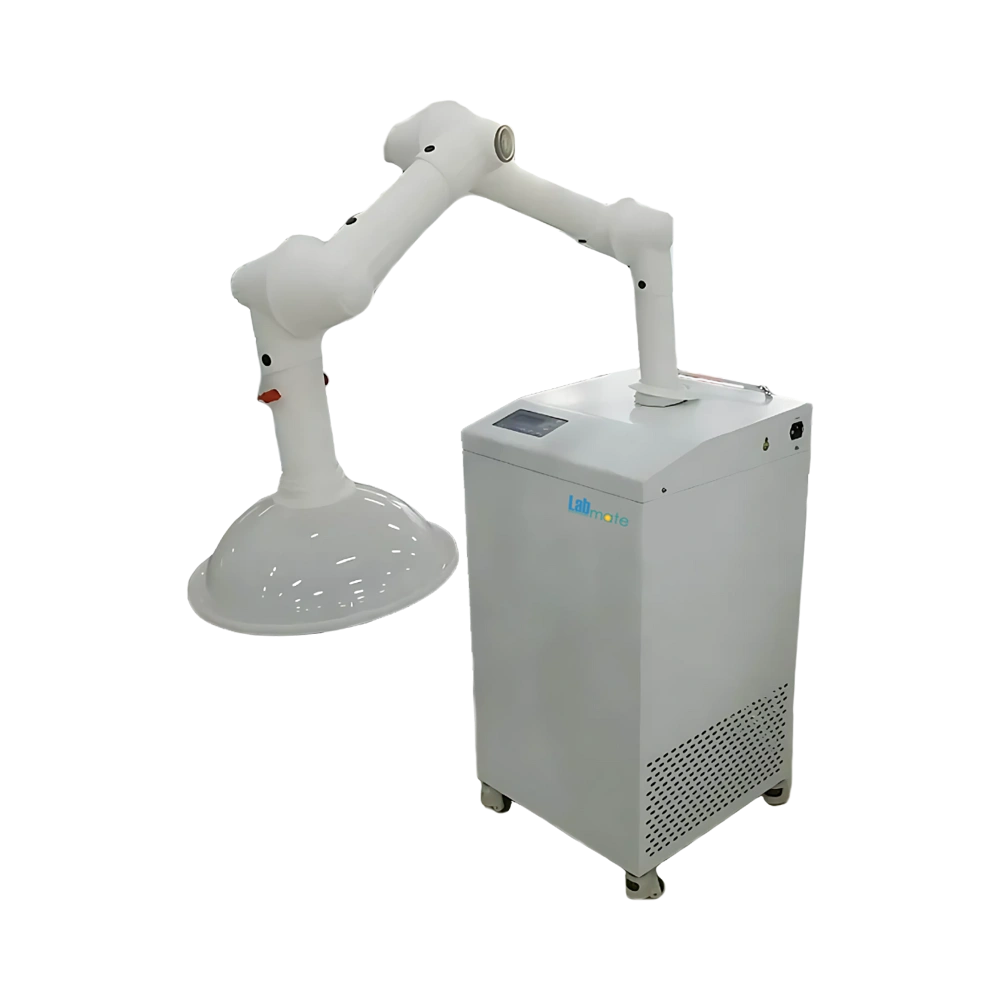

Fume Extractor LMFE-A100 is meticulously engineered for the collection, filter, and removal of harmful airborne contaminants such as welding smoke, dust, chemical vapors, fumes, and particulate matter, thus preventing their dispersion into the surrounding environment. It adopts a quick airflow velocity of 0.3 to 0.6 m/s with low noise creation. It has been thoughtfully designed with a vertical laminar flow system, facilitating the smooth movement of air along the space between the inner arms of the conical filters.
Catalog Send Mail WhatsappSpecifications
| Airflow Velocity | 0.3 to 0.6 m/s |
| Filter Efficiency | 99.999 % efficiency at 0.3 µm |
| Suction Inlet Diameter | 375 mm |
| Noise | ≤ 75 dB (A) |
| External Size | 500 × 500 × 980 mm |
| Package Size | 810 × 510 × 600 mm (Extracting arm) 630 × 630 × 1175 mm (Purification system) |
| Power Supply | AC 110/ 220 V ± 10 %, 50/60 Hz |
| Power Rated | 180 W |
| Weight | 15 kg (Extracting arm), 61 kg (Purification system) |
Features
Effortlessly mobile, user-friendly installation and operation
Equipped with an effective airflow system with an exhaust fan, featuring primary and high-efficiency filters, as well as an activated carbon filter
High-efficiency particulate air (HEPA) filters are used to trap and remove airborne contaminants ensuring an impressive 99.999% filtering efficiency at 0.3 µm
Employs a universal arm with full 360° mobility
The motor is equipped with a safeguard against burnout via an overload protection circuit
Applications
It finds application in medical research laboratories, precision instrument environments, bio-pharmaceutical facilities, and microorganism research studies.
Frequently Asked Questions
1 What is a Fume Extractor?
A Fume Extractor is an apparatus designed to remove hazardous fumes, gases and airborne contaminants from the air.
2 How does a Fume Extractor work?
It works by drawing in polluted air through a series of filters, which trap the particles of smoke and fumes.
3 What types of fumes can be removed using Fume Extractor?
It can capture a wide range of hazardous fumes such as welding fumes, chemical vapors and smoke from adhesives.
4 What is the difference between a Fume Extractor and a Ventilation System?
Fume Extractor is used to capture and filter hazardous fumes, smoke and particulate matter whereas Ventilation System moves air throughout a building or area.
5 Can Fume Extractor be used in pharmaceutical manufacturing?
It is used in pharmaceutical manufacturing to remove airborne particulates, gases and solvents during processes such as mixing, granulation and tablet coating.
6 What is the difference between a Fume Extractor and a Dust Collector?
Fume Extractor captures chemical vapors, odors and toxic gases whereas Dust Collector focuses on handling solid particulates.
7 What kind of maintenance does the Fume Extractor require?
Regular maintenance includes proper cleaning of the apparatus, replacement of filters and checking of fan for dust removal.
8 What types of filters does Fume Extractor use?
It utilizes HEPA filters and Activated Carbon filters.
