Horizontal Pulse Vacuum Sterilizer LMPVS-A118

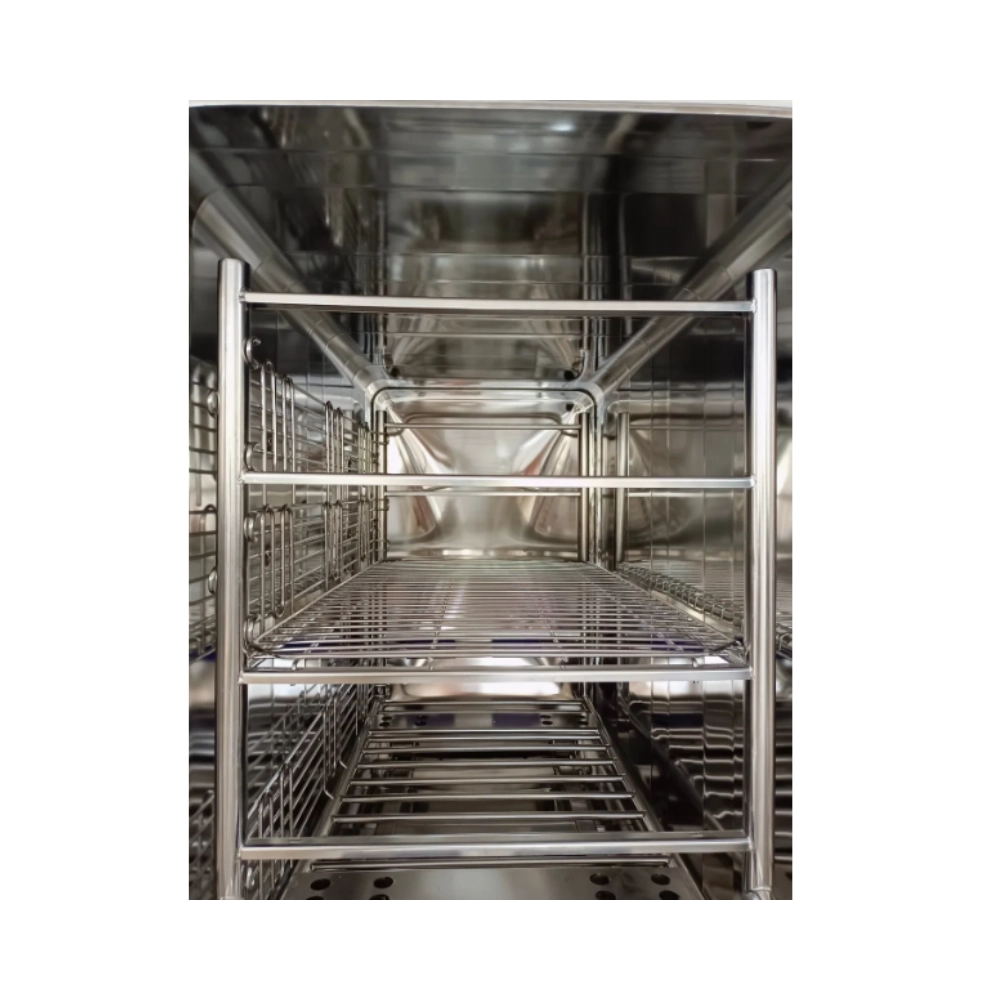

Laboratory-grade Horizontal Pulse Vacuum Sterilizer with digital controls and safety lock door

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A118
Brand: Labmate
SKU: LMPVS-A118
Rating: 4.8 (484 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 features volume of 1.2 m³. Its microcomputer control and multiple sterilization modes ensure automated operation. Its vacuum detection function offers effective air removal and maintains optimal conditions. Its stainless-steel construction, reinforced by advanced welding techniques and electrolytic polishing offers durability. Our Horizontal Pulse Vacuum Sterilizer is ideal for laboratories, research institutes, and clinical sterilization.

Catalog Send Mail Whatsapp

Specifications

Volume	1.2 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	3.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	1500×680×1180mm
Housing Dimensions	1780×1460×2040 mm
Weight	1700 kg

Features

Double door structure

Touch screen display

Adjustable parameters

Multi-channel steam intake

Multi-stage heating

V-shaped base

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 enables advanced sterilization of medical equipment, instruments, media, and labware, making it suitable for microbiology labs, pharmaceutical units, and clinical settings.

Pulse Vacuum Sterilizer with Multi-stage heating

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Volume: 2.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A118?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A118 is a steam-based sterilizer that uses vacuum pulses to remove air and ensure efficient sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A118 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 works on the principle of vacuum air removal followed by saturated steam sterilization.

3 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A118 suitable for sterilizing clinical instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 is suitable for sterilizing clinical instruments to maintain hygiene and prevent infections.

4 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A118 be used in microbiology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 is commonly used in microbiology laboratories for sterilizing culture media and tools.

5 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A118 sterilize equipment used in nanotechnology research?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 sterilizes laboratory instruments and materials used in nanotechnology research to avoid contamination.

6 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A118 used for sterilizing plant tissue culture materials?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 is used to sterilize plant tissue culture media and instruments in agricultural research.

7 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A118 be used in stem cell research laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 sterilizes vessels and instruments used in stem cell research to maintain aseptic conditions.

8 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A118 sterilize waste materials in laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 can sterilize biohazardous waste before disposal.

9 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A118 be used in environmental microbiology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 sterilizes sampling tools and culture media used in environmental microbiology.

10 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A118 sterilize equipment used in vaccine production laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A118 sterilizes containers and instruments critical to aseptic processing in vaccine development.
