Horizontal Pulse Vacuum Sterilizer LMPVS-A121

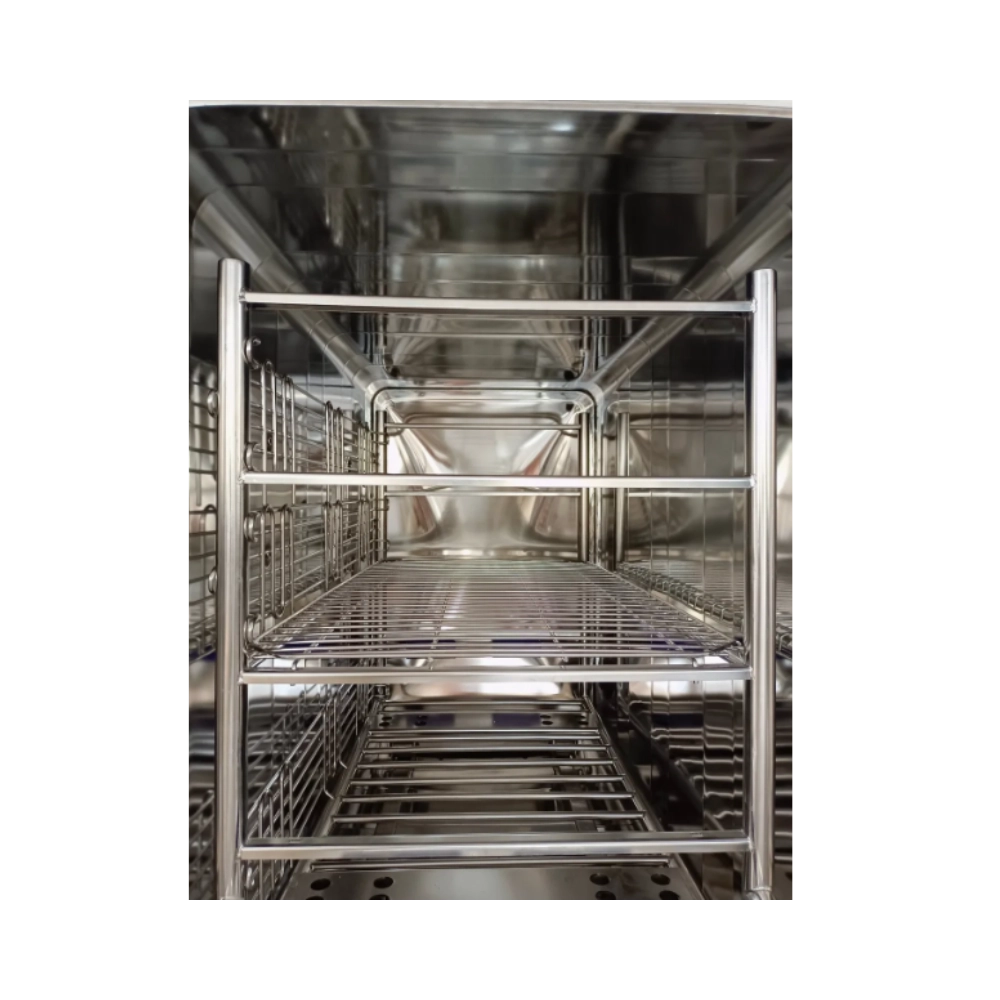

Stainless steel Pulse Vacuum Sterilizer with safety indicators

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A121
Brand: Labmate
SKU: LMPVS-A121
Rating: 5 (423 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 provides 2.5 m³ chamber capacity. Its microcomputer control system and multiple sterilization modes ensure efficient, and flexible operation. Its multi-channel steam intake and multi-stage heating enable even temperature distribution. Its V-shaped cavity base enables efficient drainage, with durable stainless-steel body for longevity. Our Horizontal Pulse Vacuum Sterilizer is ideal for industrial and research settings for high-capacity sterilization.

Catalog Send Mail Whatsapp

Specifications

Volume	2.5 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	4.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	2100×1000×1200 mm
Housing Dimensions	2400×2000×2100 mm
Weight	2700 kg

Features

Double door structure

Colour touch screen

Adjustable parameters

Vacuum detection function

Specialized welding technology

Electrolytic polishing

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 is best suited for sterilizing reusable instruments, surgical tools, lab glassware, culture media, contaminated waste, and sensitive lab equipment in clinical labs, pharma plants, and industrial R&D environments.

Horizontal Pulse Vacuum Sterilizer with Vacuum detection function

Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Volume: 2.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A121?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A121 is a steam sterilizer that uses pulse vacuum technology for deep and efficient sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A121 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 works on the principle of pulse vacuum steam sterilization.

3 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilize sensitive stem cell culture equipment?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilizes delicate stem cell culture instruments without damaging them.

4 How frequently should Horizontal Pulse Vacuum Sterilizer LMPVS-A121 be used in laboratory environments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 should be used routinely before sterilizing instruments and materials to ensure contamination-free operations.

5 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A121 suitable for sterilizing contaminated waste in laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilizes contaminated laboratory waste, reducing biohazard risks during disposal.

6 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A121 support microbiology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilizes culture media, petri dishes, and instruments to prevent microbial contamination in microbiology laboratories.

7 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A121 used for sterilizing pharmaceutical instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilizes pharmaceutical instruments to ensure aseptic conditions during drug production.

8 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A121 effective for sterilizing dialysis equipment?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilizes compatible dialysis equipment to prevent infections.

9 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A121 assist in sterilizing nanomaterial research tools?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilizes nanomaterial research tools ensuring contamination-free experiments.

10 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A121 assist in sterilizing drug formulation containers?

Horizontal Pulse Vacuum Sterilizer LMPVS-A121 sterilizes drug formulation containers to prevent contamination during processing.
