Horizontal Pulse Vacuum Sterilizer LMPVS-A110

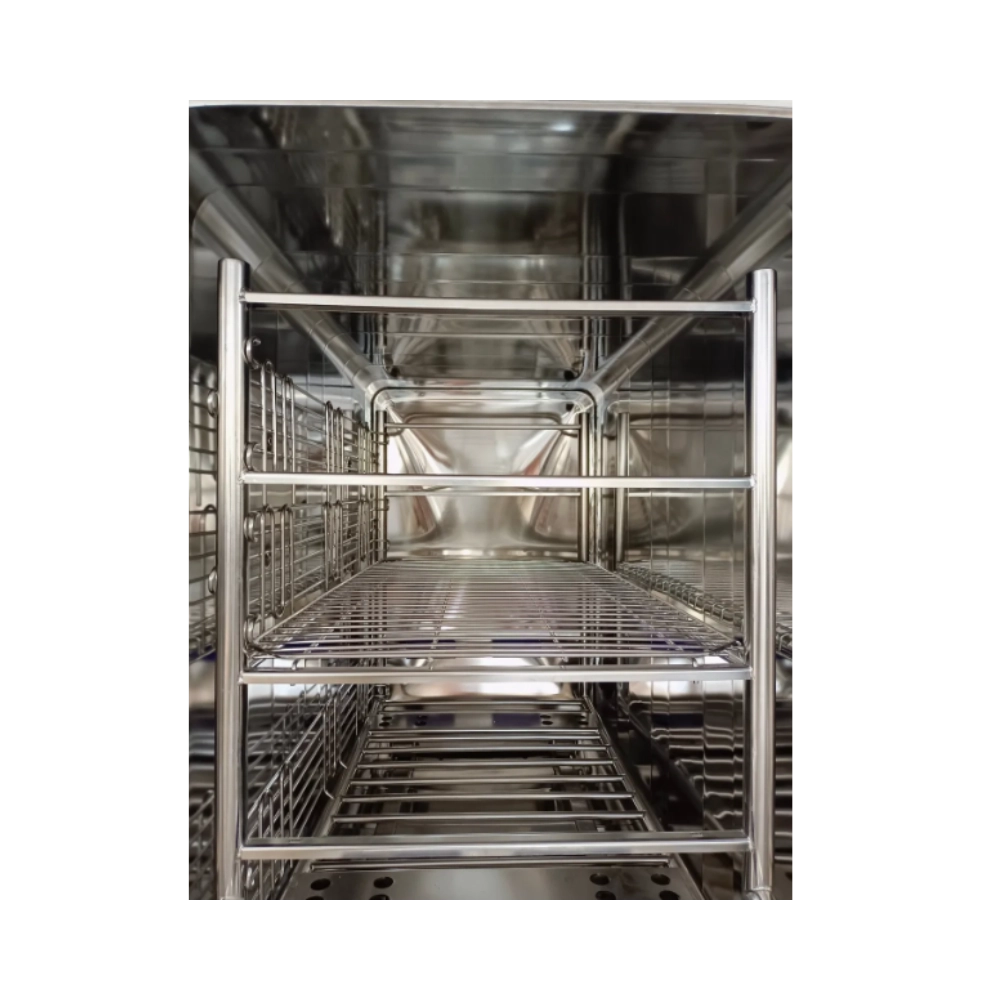

Horizontal Pulse Vacuum Sterilizer with stainless steel construction

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A110
Brand: Labmate
SKU: LMPVS-A110
Rating: 4.8 (452 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 provides capacity of 0.6 m³. It offers multiple sterilization modes with customizable settings, controlled by automated microcomputer system. Its vacuum detection function ensures airtight performance, while the V-shaped cavity base enhances drainage efficiency. Its stainless-steel construction, with advanced welding and electrolytic polishing, ensures durability. Our Horizontal Pulse Vacuum Sterilizer is ideal for sterilizing food processing equipment, media, glassware, fabrics.

Catalog Send Mail Whatsapp

Specifications

Volume	0.6 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	2.4 kW
Power Supply	380V, 50Hz
Chamber Dimension	1180×610×910 mm
Housing Dimensions	1440×1280×1940 mm
Weight	1200 kg

Features

Single door design

Colour touch screen

Multi-channel steam intake

Multi-stage heating

Built-in safety mechanisms

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 is suitable for sterilizing solid, non-porous materials such as surgical tools, glassware, laboratory equipment, medical instruments, textiles, medical fabrics like gauze or bandages and culture media.

Pulse Vacuum Sterilizer with automated microcomputer

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Volume: 1.2 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A110?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A110 is a steam sterilizer that uses alternating vacuum and steam pulses for thorough and efficient sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A110 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 works on the principle of pulse vacuum steam sterilization.

3 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A110 be used in nanotechnology research laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 is used in nanotechnology laboratories for sterilizing sensitive experimental equipment.

4 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A110 be used in tissue engineering laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 is used to sterilize scaffolds and instruments in tissue engineering laboratories.

5 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A110 be used in plant pathology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 sterilizes tools and containers used in plant pathology research laboratories.

6 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A110 used in enzyme production laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 is used to sterilize fermenters and containers in enzyme production laboratories.

7 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A110 useful in genetic diagnostics laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 is used in genetic diagnostics laboratories to sterilize pipette tips, centrifuge tubes, and reagent containers.

8 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A110 applicable in wastewater treatment research?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 sterilizes samples and lab equipment in wastewater treatment research laboratories.

9 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A110 used in forensic DNA laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 sterilizes instruments and consumables used in forensic DNA analysis to prevent contamination.

10 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A110 suitable for Biosafety Level 1 laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A110 is ideal for sterilizing non-pathogenic materials typically handled in Biosafety Level 1 laboratories.
