Horizontal Pulse Vacuum Sterilizer LMPVS-A115

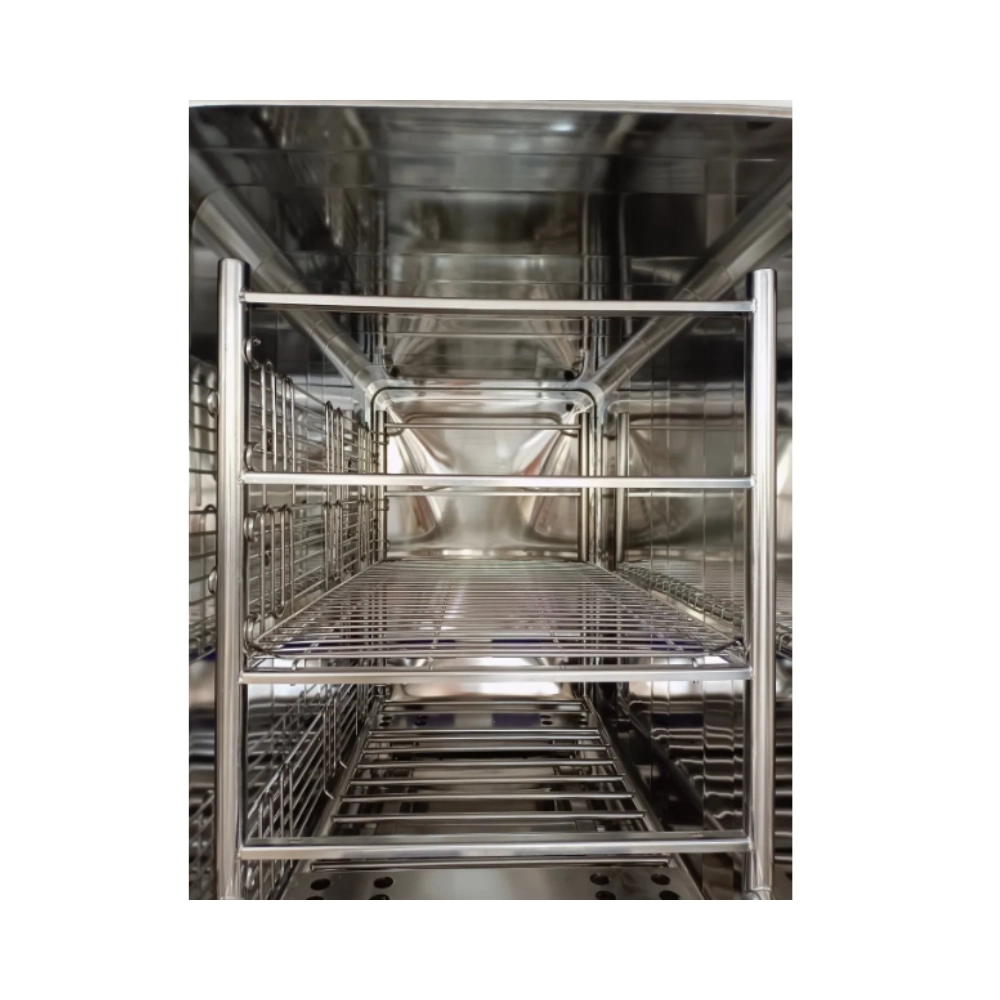

Pulse Vacuum Sterilizer stainless steel build, and touch screen display

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A115
Brand: Labmate
SKU: LMPVS-A115
Rating: 4.8 (482 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 offers 0.8 m³ chamber volume. It features multi-channel steam intake and stage-wise heating for even temperature distribution. Its multiple sterilization modes and vacuum detection function ensure reliable performance. Its four-sided V-shaped cavity base, enhance drainage performance and prevent water retention. Our Horizontal Pulse Vacuum Sterilizer is optimal for sterilizing porous materials, equipment, glassware, and media.

Catalog Send Mail Whatsapp

Specifications

Volume	0.8 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	2.4 kW
Power Supply	380V, 50Hz
Chamber Dimension	1480×610×910 mm
Housing Dimensions	1740×1280×1940 mm
Weight	1400 kg

Features

Double door design

Microcomputer control

Touch screen display

Stainless steel build

Advanced welding technology

Electrolytic polishing

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 is best suited for sterilizing large volumes of equipment, glassware, media and porous materials, such as textiles and fabrics in laboratories, research facilities, and industrial settings.

Horizontal Sterilizer with multiple sterilization modes

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Volume: 1.2 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Volume: 2.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A115?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A115 is a steam-based sterilizer that uses pulse vacuum cycles to sterilize equipment efficiently.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A115 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 works on the principle of vacuum air removal followed by steam sterilization.

3 3. Can Horizontal Pulse Vacuum Sterilizer LMPVS-A115 be used in biotechnology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 is used in biotech labs to sterilize fermenters, flasks, and media.

4 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A115 suitable for veterinary clinics?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 is suitable for sterilizing surgical and diagnostic tools in veterinary practices.

5 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A115 used for sterilizing plant tissue culture materials?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 sterilizes media and instruments for plant tissue culture research.

6 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A115 help in nanotechnology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 sterilizes labware and culture media, reducing contamination risks in nanotech research.

7 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A115 suitable for sterilizing water sampling containers?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 sterilizes containers used in water quality testing.

8 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A115 sterilize raw materials used in biofertilizer production?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 sterilizes raw materials to eliminate unwanted microbes before fermentation.

9 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A115 sterilize lab instruments used in clinical diagnostics?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 sterilizes laboratory instruments to maintain accuracy in clinical diagnostic tests.

10 Does Horizontal Pulse Vacuum Sterilizer LMPVS-A115 support sterilization of dental clinic instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A115 is suitable for sterilizing dental tools and equipment.
