Horizontal Pulse Vacuum Sterilizer LMPVS-A114

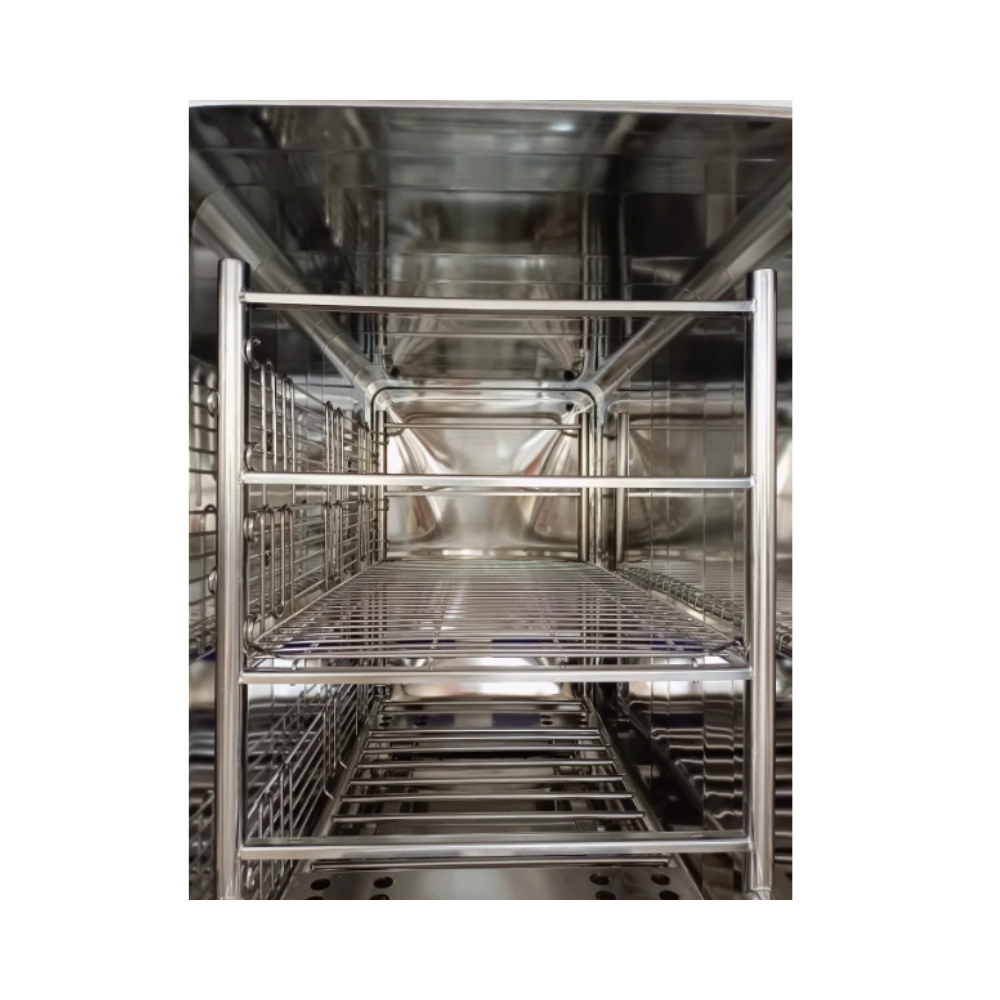

Pulse Vacuum Sterilizer with single front door and integrated control system

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A114
Brand: Labmate
SKU: LMPVS-A114
Rating: 4.8 (448 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 provides capacity of 0.8 m³. Its automated sterilization process is controlled by microcomputer, with real-time parameters displayed on touch screen. It incorporates multi-channel steam intake for enhanced efficiency, utilizing external steam for optimal performance. Its main body features advanced welding technology and food-grade electrolytic polishing on the inner surface. Our Horizontal Pulse Vacuum Sterilizer is ideal for microbiology labs, pharmaceutical units, and clinical settings.

Catalog Send Mail Whatsapp

Specifications

Volume	0.8 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	2.4 kW
Power Supply	380V, 50Hz
Chamber Dimension	1480×610×910 mm
Housing Dimensions	1740×1280×1940 mm
Weight	1400 kg

Features

Single door design

Multiple sterilization modes

Multi-stage heating

Stainless steel build

Four-sided V-shaped cavity base

Vacuum detection function

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 is optimal for microbiology labs, pharmaceutical units, and clinical settings, offering advanced sterilization of instruments, media, and labware.

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Volume: 1.2 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Volume: 2.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A114?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A114 uses steam and vacuum technology to sterilize instruments efficiently.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A114 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 works on the principle of vacuum air removal followed by steam sterilization.

3 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A114 be used in microbiology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 is used in microbiology labs to sterilize culture media and laboratory tools.

4 Does Horizontal Pulse Vacuum Sterilizer LMPVS-A114 support sterilization of clinical instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 supports the sterilization of clinical instruments to reduce infection risks in healthcare settings.

5 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A114 be used in dental clinics?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 is suitable for sterilizing dental instruments and tools.

6 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A114 used for sterilizing food processing tools?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 is used to sterilize food processing tools that are compatible with steam sterilization.

7 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A114 sterilize laboratory glassware used in chemical analysis?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 can safely sterilize chemical analysis glassware.

8 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A114 sterilize culture media for nanobiotechnology experiments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 sterilizes culture media to maintain sterile conditions in nanobiotechnology studies.

9 Does Horizontal Pulse Vacuum Sterilizer LMPVS-A114 sterilize plant tissue culture materials?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 sterilizes plant tissue culture media and instruments used in agricultural research.

10 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A114 suitable for sterilizing tools used in DNA extraction?

Horizontal Pulse Vacuum Sterilizer LMPVS-A114 is suitable for sterilizing DNA extraction tools to ensure accurate forensic analysis.
