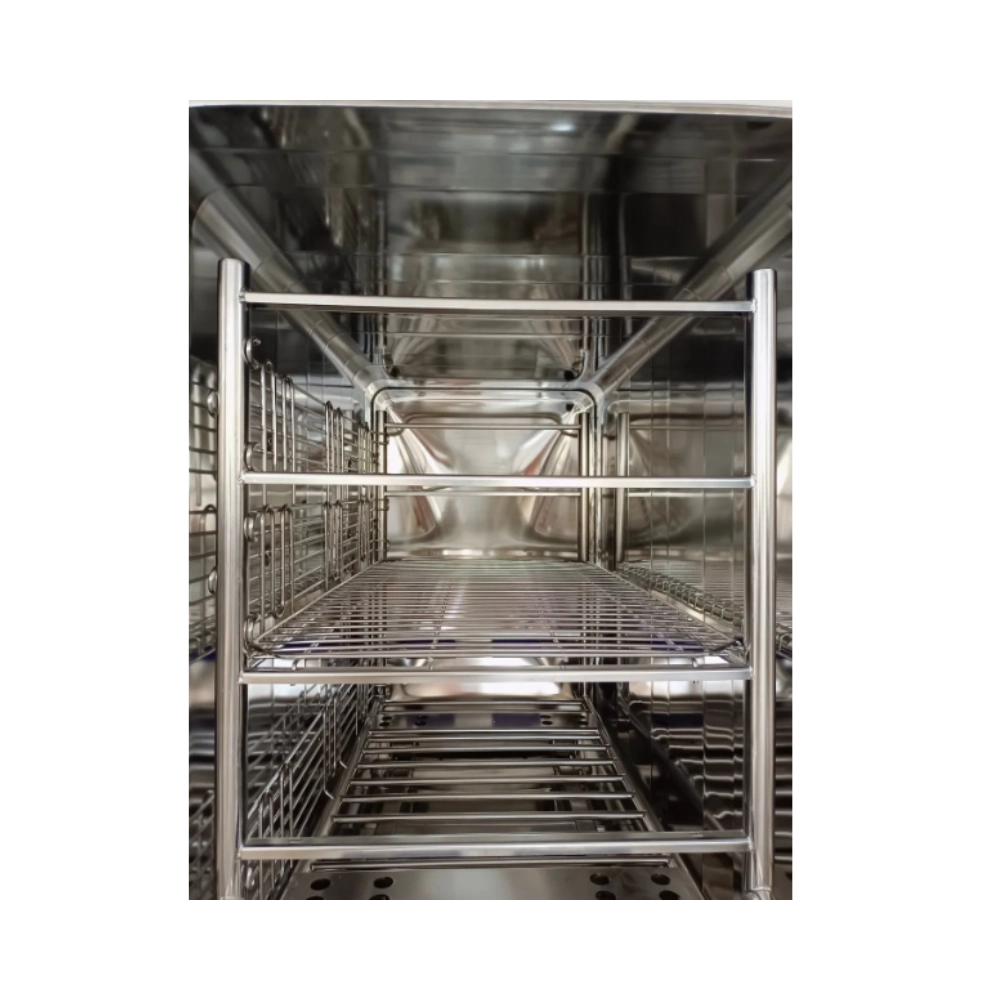

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A101
Brand: Labmate
SKU: LMPVS-A101
Rating: 4.8 (432 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 offers volume of 0.25 m³. Its automatic microcomputer control with colour touch screen enables intuitive operation. Constructed with stainless steel for durability, the V-shaped cavity base optimizes drainage efficiency. It features various sterilization modes for diverse purposes and automatic water control for optimal performance. Our Horizontal Pulse Vacuum Sterilizer is ideal for sterilizing solid, liquid, metal, and fabric materials.

Catalog Send Mail Whatsapp

Specifications

Volume	0.25 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	1.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	1000 × 500 × 500 mm
Housing Dimensions	1260 × 1200 × 1740 mm
Weight	750 kg

Pricing

Product	Price	Unit	Action
Horizontal Pulse Vacuum Sterilizer LMPVS-A101	$ 43387.5	Each of 1

Features

Double-door design

Integrated steam generator

Pressure controller and safety valve

Multi-channel steam intake

Multi-stage heating

Vacuum detection with low leakage

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 ensures elimination of microbial contaminants from solid, liquid, metal, and fabric materials, ensuring hygiene and safety in medical, pharmaceutical, and industrial environments.

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 47725 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 39050 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 40675 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 94900 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 41750 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 40675 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 43375 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 53687.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 59650 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 58025 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 75925 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 56400 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 49350 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 52062.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

$ 8337.5 / Each of 1

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A101?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A101 is a fully automatic sterilization system that uses steam and vacuum pulses for deep air removal and uniform sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A101 work?

Portable Pressure Steam Sterilizer LMPSS-A101 works on the principle of vacuum-assisted steam sterilization.

3 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A101 used in pharmaceutical production?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 is used in pharmaceutical production to sterilize containers, tools, and materials before filling.

4 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A101 be used in food testing laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 is suitable for sterilizing lab equipment used in food quality and safety testing.

5 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A101 be used in veterinary hospitals?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 is ideal for sterilizing surgical instruments and equipment used in veterinary care.

6 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A101 used in laboratories handling genetically modified organisms (GMOs)?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 is used in GMO laboratories to sterilize materials and prevent cross-contamination between modified and non-modified samples.

7 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A101 be used in neurological surgical centers?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 sterilizes delicate neurosurgical instruments that require precision and contamination control.

8 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A101 suitable for environmental testing laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 is suitable for sterilizing glassware and sampling equipment in environmental testing laboratories.

9 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A101 used in aquaculture laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 sterilizes tools and containers used in aquaculture to prevent pathogen spread.

10 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A101 be used in forensic DNA laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A101 sterilizes tools and sample containers to maintain DNA sample integrity.
