Horizontal Pulse Vacuum Sterilizer LMPVS-A120

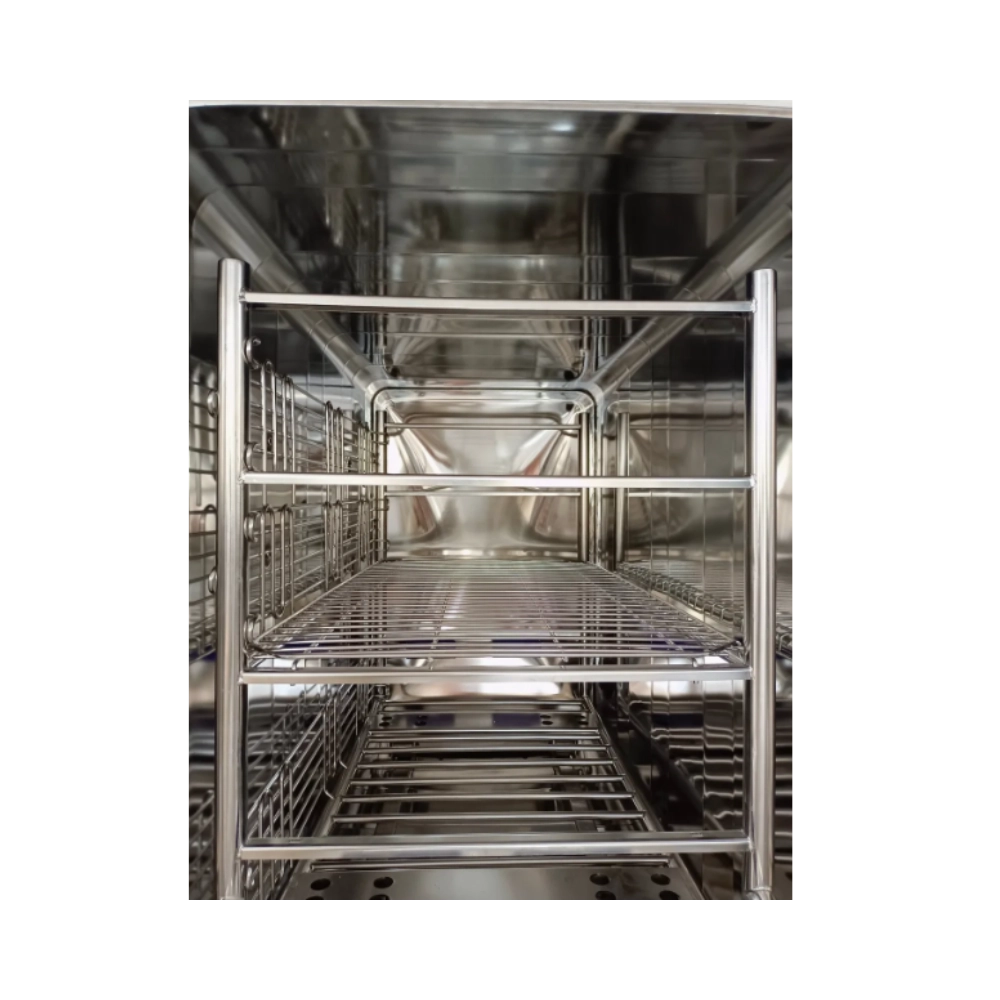

Horizontal Pulse Vacuum Sterilizer with touchscreen interface and gauge indicators

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A120
Brand: Labmate
SKU: LMPVS-A120
Rating: 4.7 (499 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 provides 2.0 m³ chamber capacity. Its double door structure and V-shaped base offer superior sealing and drainage. It features durable stainless-steel body and intuitive interface with colour touchscreen display. Its multi-channel steam intake and multi-stage heating enable uniform temperature distribution.Our Horizontal Pulse Vacuum Sterilizer effectively sterilizes instruments, media, and labware in research and healthcare.

Catalog Send Mail Whatsapp

Specifications

Volume	2.0 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	4.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	2600×680×1180 mm
Housing Dimensions	2880×1460×2060 mm
Weight	2400 kg

Features

Microcomputer control

Multiple sterilization modes

Adjustable parameters

Vacuum detection function

Specialized welding technology

Electrolytic polishing

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 effectively sterilizes laboratory instruments, media, glassware, dressings, surgical tools and culture media, making it suitable for research labs, clinical settings, pharmaceutical units, and educational institutions.

Vacuum Sterilizer with multi-channel steam intake

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A120?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A120 is a steam sterilizer that uses pulse vacuum technology for deep, efficient sterilization and drying.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A120 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 works on the principle of pulse vacuum steam sterilization.

3 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A120 be used in dental clinics?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 is suitable for dental clinics to sterilize handpieces, wrapped tools, and hollow instruments.

4 What role does Horizontal Pulse Vacuum Sterilizer LMPVS-A120 play in sterilizing water treatment laboratory instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilizes laboratory instruments used for water quality testing and analysis.

5 Does Horizontal Pulse Vacuum Sterilizer LMPVS-A120 assist in sterilizing seeds for planting?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilizes seeds by eliminating surface pathogens and contaminants, promoting better germination rates and healthier crop yields.

6 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilize food sampling tools?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilizes food sampling tools and containers, keeping samples uncontaminated for accurate testing and quality control.

7 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilize delicate clinical instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 uses pulse vacuum cycles to sterilize delicate clinical instruments effectively without causing damage.

8 How is Horizontal Pulse Vacuum Sterilizer LMPVS-A120 used in biofertilizer production?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilizes raw materials, media, and equipment in biofertilizer production to prevent contamination.

9 How often should the Horizontal Pulse Vacuum Sterilizer LMPVS-A120 be used in stem cell laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 should be routinely used before stem cell culture to keep environments contamination-free.

10 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilize delicate forensic instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A120 sterilizes delicate forensic instruments using controlled vacuum pulse cycles without damaging sensitive equipment.
