Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A104
Brand: Labmate
SKU: LMPVS-A104
Rating: 4.9 (486 reviews)

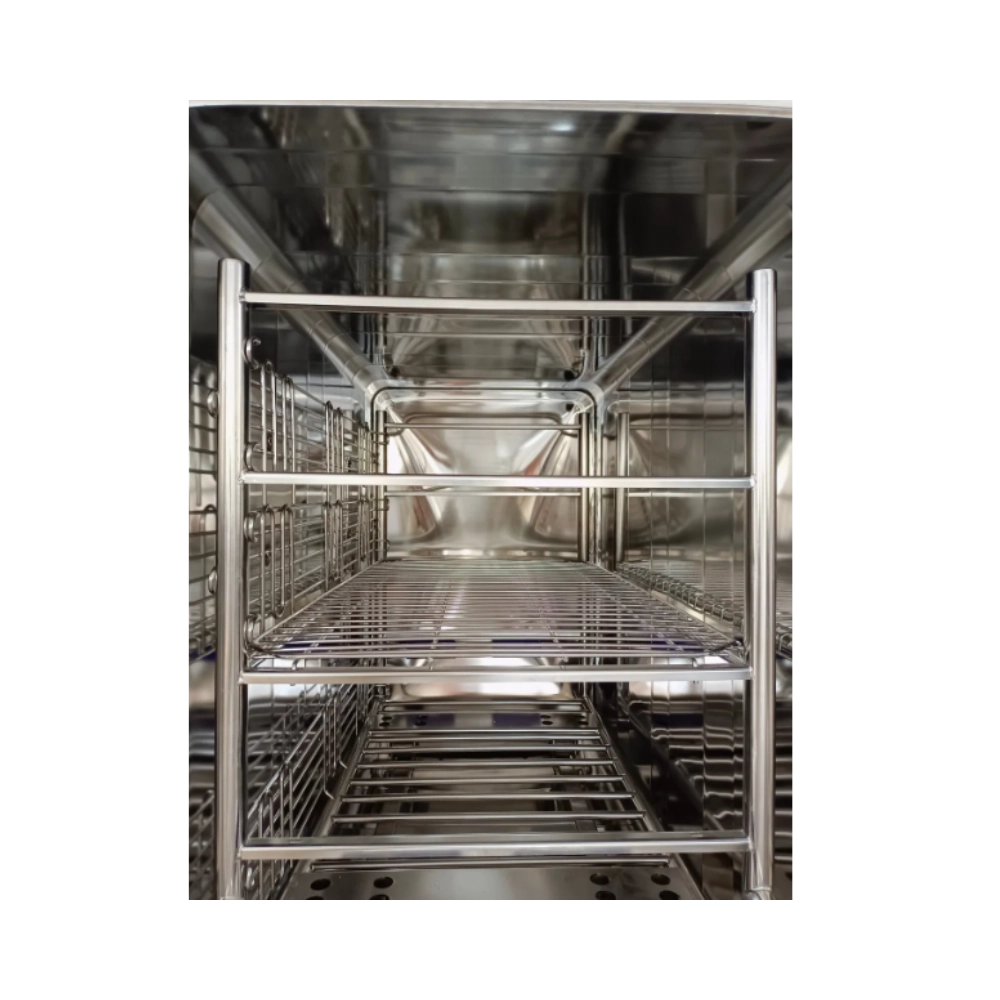

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is equipped with 0.36 m³ volume. Its single-door design facilitates easy access, while the V-shaped cavity base ensures efficient drainage. It features multi-channel steam intake and multi-stage heating for uniform temperature distribution. Its integrated steam generator and auto water management enables consistent steam supply. Our Horizontal Pulse Vacuum Sterilizer is ideal for industrial, medical and laboratory equipment sterilization.

Catalog Send Mail Whatsapp

Specifications

Volume	0.36 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	1.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	1000×600×600 mm
Housing Dimensions	1260×1270×1740 mm
Weight	800 kg

Pricing

Product	Price	Unit	Action
Horizontal Pulse Vacuum Sterilizer LMPVS-A104	$ 43375	Each of 1

Features

Microcomputer-controlled automation

Colour touch screen display

Stainless steel construction

Pressure controller with safety valve

Multiple sterilization modes

Vacuum leak detection system

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is best suited for efficient sterilization of equipment in medical, industrial, laboratory environments, including surgical instruments, glassware, and surgical tools.

Horizontal Pulse Vacuum Sterilizer with V-shaped cavity base

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 39050 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 47725 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 45000 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 52062.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 59650 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 61275 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 52062.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 49350 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 42300 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Volume: 1.2 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 73212.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 75925 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 56400 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 43387.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 40675 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 53687.5 / Each of 1

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A104?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is a sterilizer that uses vacuum and steam pulses to achieve deep and efficient sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A104 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 operates on the principle of pulse vacuum steam sterilization.

3 What types of materials can be sterilized using the Horizontal Pulse Vacuum Sterilizer LMPVS-A104?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 effectively sterilize solids, porous items, textiles, and heat-resistant liquids.

4 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A104 be used in pharmaceutical manufacturing?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is widely used in the pharmaceutical industry for sterilizing equipment and containers.

5 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A104 effective for sterilizing medical fabrics?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is effective for sterilizing medical fabrics by ensuring deep steam penetration and thorough drying.

6 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A104 be used in research laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is well-suited for research laboratories where sterile conditions are critical for experiments and sample integrity.

7 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A104 appropriate for dental clinics?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is suitable for dental clinics needing safe and thorough sterilization of instruments.

8 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A104 sterilize waste before disposal?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is used to sterilize biohazardous waste to reduce contamination risk before disposal.

9 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A104 be used in biotechnology facilities?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is suitable for biotechnology facilities to sterilize culture media, instruments, and laboratory tools.

10 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A104 be used in veterinary clinics?

Horizontal Pulse Vacuum Sterilizer LMPVS-A104 is ideal for veterinary clinics to sterilize surgical tools and medical supplies.
