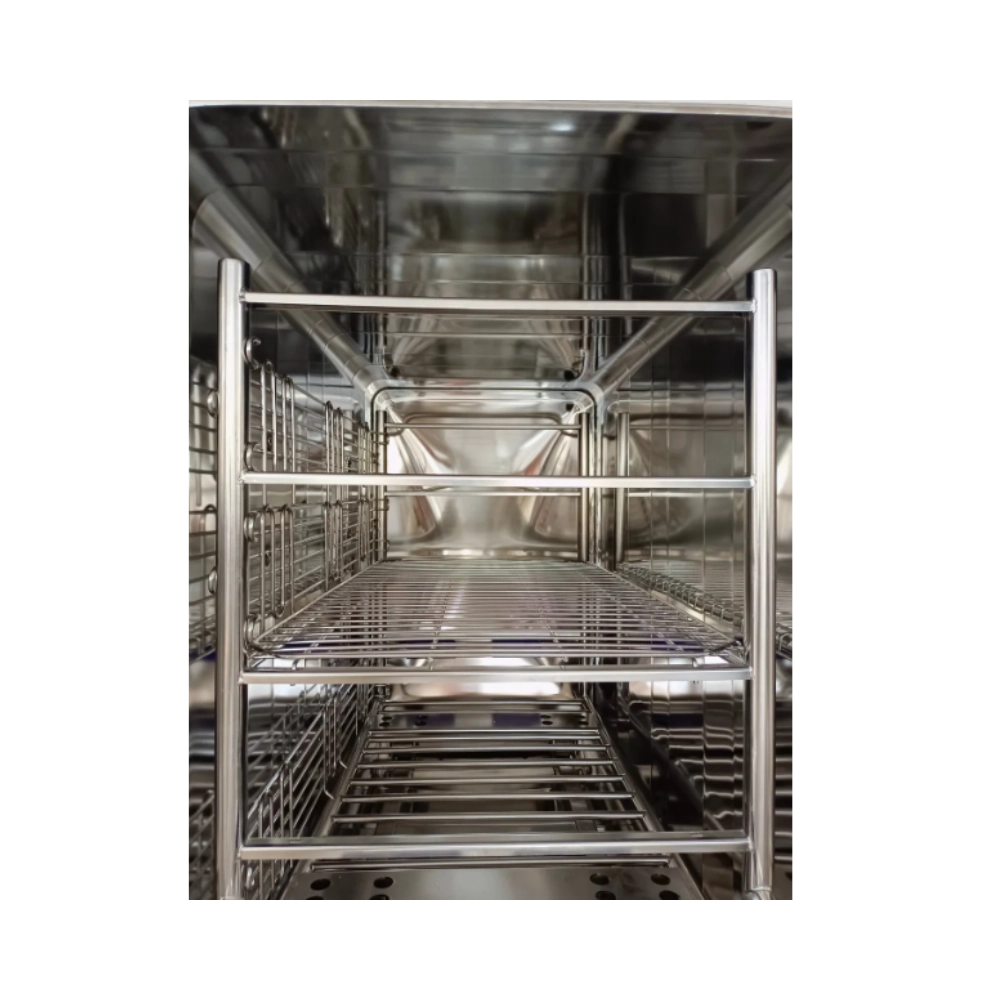

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A100
Brand: Labmate
SKU: LMPVS-A100
Rating: 4.9 (471 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 offers volume of 0.25 m³. Its automatic microcomputer control with colour touch screen enables intuitive operation. Its stainless-steel build ensures durability, while the V-shaped cavity base enhances drainage efficiency. It features multi-channel steam intake and multi-stage heating for uniform temperature distribution. Our Horizontal Pulse Vacuum Sterilizer is ideal for sterilizing solid, liquid, metal, and fabric materials.

Catalog Send Mail Whatsapp

Specifications

Volume	0.25 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	1.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	1000 × 500 × 500 mm
Housing Dimensions	1260 × 1200 × 1740 mm
Weight	750 kg

Pricing

Product	Price	Unit	Action
Horizontal Pulse Vacuum Sterilizer LMPVS-A100	$ 41750	Each of 1

Features

Single-door design

Integrated steam generator

Automatic water management

Pressure controller and safety valve

Multiple sterilization modes

Vacuum detection with low leakage

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 is ideal for sterilizing solid, liquid, metal, and fabric materials, efficiently removing microbial contaminants in medical, pharmaceutical, and industrial settings.

Horizontal Pulse Vacuum Sterilizer with touch screen

Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 43375 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 53687.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 47725 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

$ 8337.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 43387.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 42300 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 94900 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 75925 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 52062.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 53687.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 58025 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Volume: 2.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 82425 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 61275 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 49350 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 59650 / Each of 1

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A100?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A100 is a fully automatic sterilization system that uses steam and vacuum pulses to achieve effective and uniform sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A100 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 works on the principle of high-pressure saturated steam sterilization.

3 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A100 used in research institutions?

Research institutions use Horizontal Pulse Vacuum Sterilizer LMPVS-A100 to sterilize instruments, containers, and media for experimental reliability.

4 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A100 ensure sterility of instruments used in infection control?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 uses deep vacuum cycles and steam sterilization to ensure instruments are sterile and safe for use in infection control.

5 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A100 suitable for sterilizing culture media in biotechnology labs?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 effectively sterilizes culture media in biotechnology labs to maintain aseptic conditions.

6 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A100 assist in sterilizing liquid waste?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 sterilizes unsealed liquid waste through controlled steam and vacuum cycles to eliminate pathogens.

7 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A100 aid in pharmaceutical quality control?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 sterilizes samples and lab equipment used in pharmaceutical quality control for reliable testing.

8 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A100 be used to sterilize dairy processing equipment?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 is used to sterilize dairy processing equipment to prevent microbial contamination.

9 Does Horizontal Pulse Vacuum Sterilizer LMPVS-A100 help in sterilizing tools used for DNA extraction?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 sterilizes tools used for DNA extraction to prevent contamination and ensure reliable results.

10 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A100 be used to sterilize marine research equipment?

Horizontal Pulse Vacuum Sterilizer LMPVS-A100 sterilizes marine research equipment to prevent contamination during oceanic studies.
