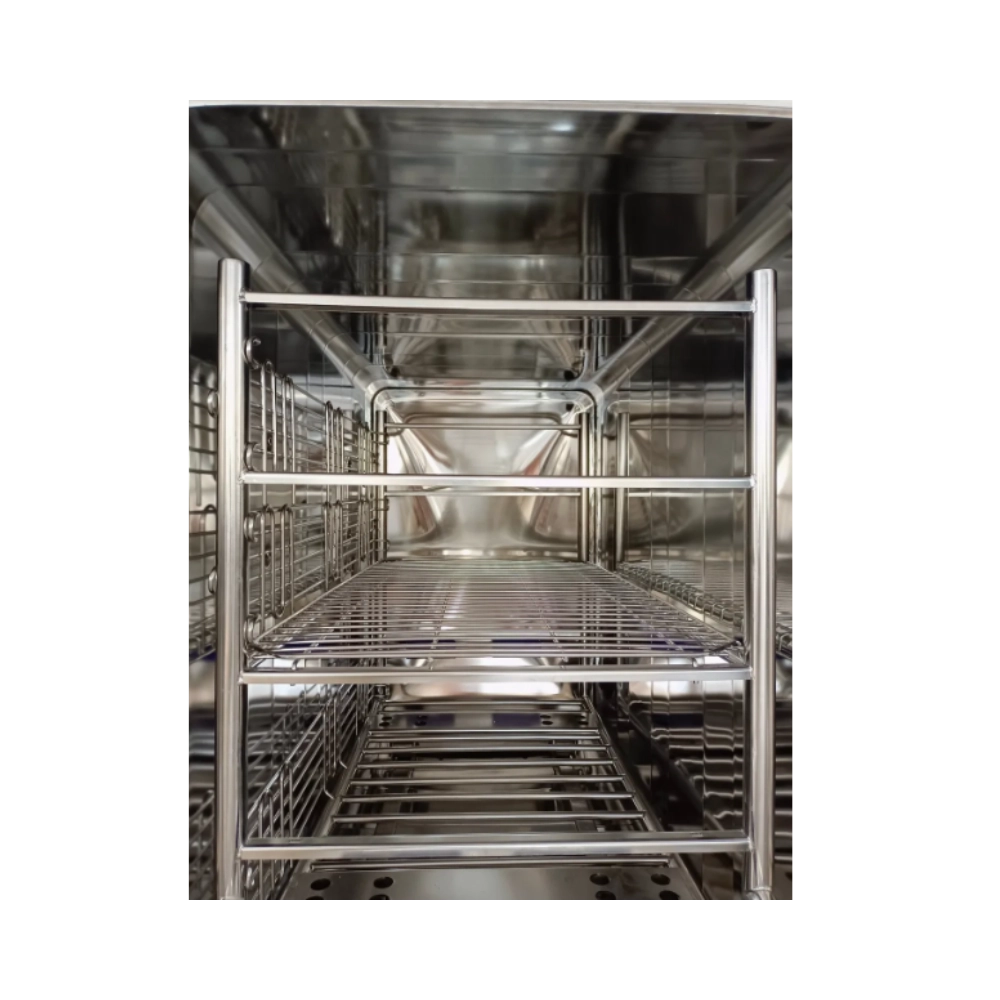

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A106
Brand: Labmate
SKU: LMPVS-A106
Rating: 4.9 (484 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 provides capacity of 0.36 m³. It offers range of sterilization modes with adjustable settings, controlled by automated microcomputer system. Its electrolytic polishing meets food-grade standards and ensures multi-channel steam heating with external steam. Its stainless-steel construction, reinforced by advanced welding techniques ensures durability. Our Horizontal Pulse Vacuum Sterilizer is ideal for sterilizing food processing equipment, media, glassware, fabrics.

Catalog Send Mail Whatsapp

Specifications

Volume	0.36 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	1.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	1000×600×600 mm
Housing Dimensions	1260×1270×1740 mm
Weight	800 kg

Features

Single door design

Colour touch screen

Multi-stage heating

Vacuum detection function

Four-sided V-shaped cavity base

Built-in safety mechanisms

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is best suited for sterilizing food processing equipment, containers, media, glassware, scientific instruments, surgical tools, fabrics, and other medical supplies in food industry, healthcare and laboratories.

Sterilizer with automated microcomputer system

Horizontal Pulse Vacuum Sterilizer LMPVS-A107

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Volume: 1.2 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A106?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is a steam sterilizer that uses alternating vacuum and steam pulses to ensure deep, uniform, and efficient sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A106 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 works on the principle of pulse vacuum steam sterilization.

3 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A106 sterilize pharmaceutical equipment?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is ideal for sterilizing pharmaceutical equipment to ensure contamination-free processes.

4 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A106 ideal for pathology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is ideal for pathology labs where sterile slides, blades, and instruments are required.

5 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A106 used in botanical research laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is used in botanical research labs to sterilize plant tissue culture tools and vessels.

6 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A106 applicable for marine biology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is applicable for marine biology laboratories for sterilizing dissection kits and sampling tools.

7 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A106 applicable for DNA testing laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is applicable for DNA testing laboratories to sterilize pipettes, tubes, and instruments.

8 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A106 used in cancer research facilities?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is used in cancer research facilities to sterilize labware and biopsy processing tools.

9 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A106 be used in stem cell research?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is used in stem cell research labs to sterilize culture vessels and processing tools.

10 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A106 used in immunology research laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A106 is used in immunology research labs to sterilize pipettes, tubes, and antigen containers.
