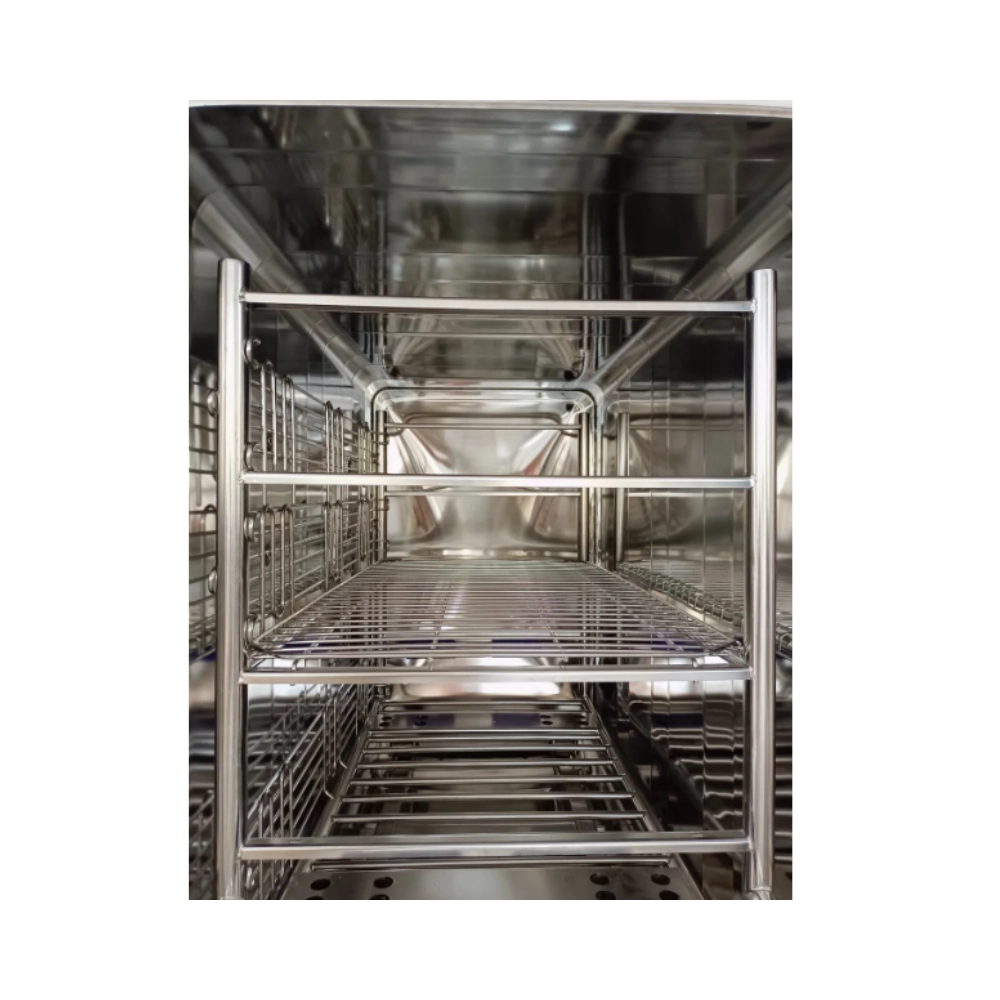

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A103
Brand: Labmate
SKU: LMPVS-A103
Rating: 4.8 (406 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 incorporates chamber volume of 0.25 m³. Its automatic microcomputer control and colour touch screen offer intuitive operation. It features multi-channel steam intake and stage-wise heating for uniform temperature and energy efficiency. Its four-sided V-shaped cavity base, enhance drainage performance and prevent water retention. Our Horizontal Pulse Vacuum Sterilizer effectively sterilizes solids, liquids, metals, and fabrics in various settings.

Catalog Send Mail Whatsapp

Specifications

Volume	0.25 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Supply	380V, 50Hz
Power Consumption	1.2 kW
Chamber Dimension	1000 × 500 × 500 mm
Housing Dimensions	1260 × 1200 × 1740 mm
Weight	750 kg

Pricing

Product	Price	Unit	Action
Horizontal Pulse Vacuum Sterilizer LMPVS-A103	$ 40675	Each of 1

Features

Double door design

Stainless steel build

Advanced welding technology

Vacuum detection

Multiple sterilization modes

Electrolytic polished surface

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 ensures hygiene and safety by removing microbial contaminants from solids, liquids, metals, and fabrics in medical, research, and manufacturing settings.

Horizontal Sterilizer with colour touch screen

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 43387.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 40675 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A104

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 43375 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 56400 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 53687.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 39050 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 41750 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 58025 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 75925 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

$ 8337.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 52062.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 53687.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 52062.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 61275 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Volume: 2.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 82425 / Each of 1

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A103?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A103 is an autoclave that uses vacuum pulses and steam for effective sterilization of equipment.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A103 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 works by using pressurized steam to sterilize instruments through high temperature and pressure.

3 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A103 be used in tissue culture laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 is used in tissue culture labs to sterilize media, containers, and instruments critical for aseptic growth.

4 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A103 benefit pharmaceutical quality control?

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 benefits pharmaceutical quality control by sterilizing glass ampoules, stoppers, and measuring instruments before testing.

5 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A103 be used in pathology laboratories?

Pathology laboratories use the Horizontal Pulse Vacuum Sterilizer LMPVS-A103 to sterilize dissection instruments, biopsy trays, and sample holders.

6 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A103 assist in virology research laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 assists virology labs by sterilizing viral culture media, flasks, and safety containers to prevent contamination.

7 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A103 assist in ensuring asepsis in stem cell research?

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 ensures asepsis by sterilizing culture media containers, tools, and vessels used in stem cell research.

8 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A103 used in forensic science laboratories?

Forensic laboratories use Horizontal Pulse Vacuum Sterilizer LMPVS-A103 to sterilize sample containers and evidence-handling tools.

9 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A103 be applied in biofertilizer production laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 is applied in biofertilizer labs to sterilize fermenters, flasks, and media preparation vessels.

10 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A103 be used in vaccine formulation laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A103 is used in vaccine formulation labs to sterilize vials, mixing equipment, and biosafety containers.
