Horizontal Pulse Vacuum Sterilizer LMPVS-A119

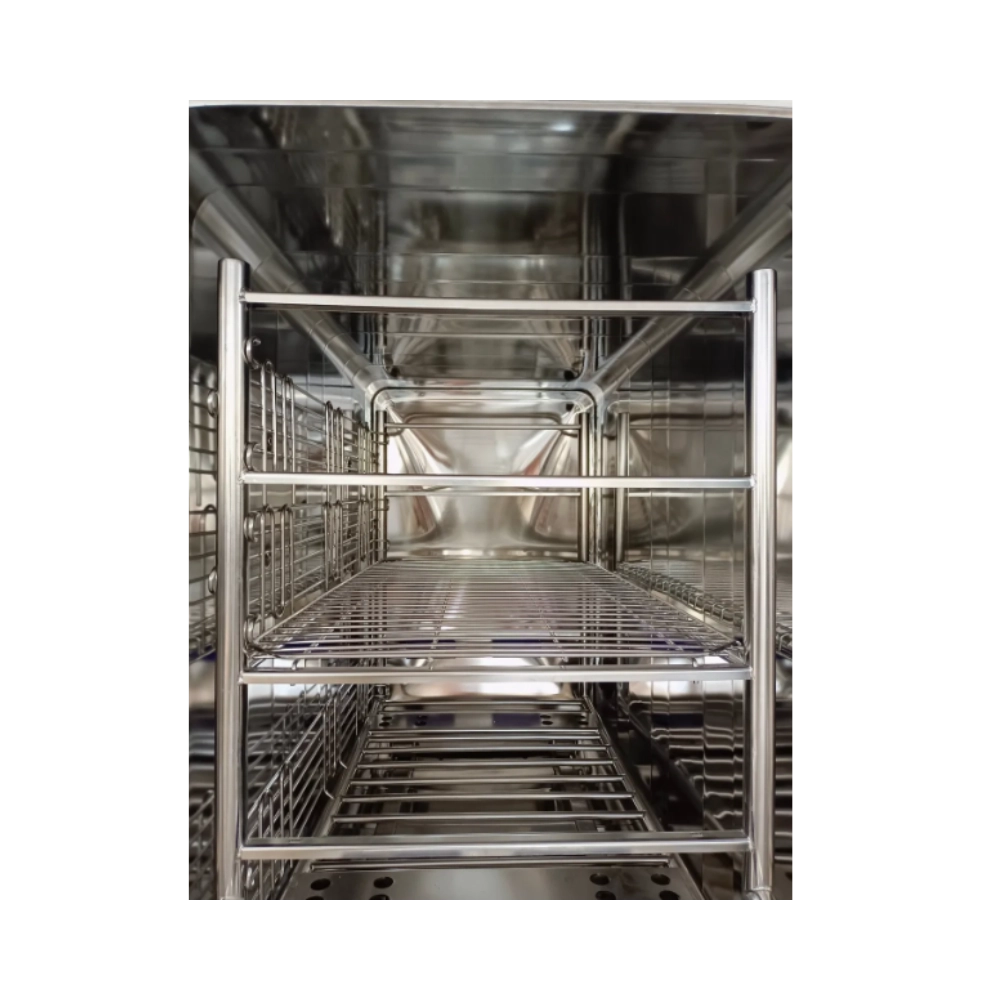

Front-access Horizontal Pulse Vacuum Sterilizer with corrosion-resistant stainless-steel body

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A119
Brand: Labmate
SKU: LMPVS-A119
Rating: 4.9 (468 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 is equipped with 1.5 m³ volume. It offers range of sterilization modes with adjustable settings, controlled by automated microcomputer system. Its double door structure combined with touch screen display enables efficient, and intuitive operation. Its V-shaped cavity base ensures efficient drainage and prevents water accumulation during sterilization cycles. Our Horizontal Pulse Vacuum Sterilizer is ideal for research labs, healthcare environments, and pharmaceutical settings.

Catalog Send Mail Whatsapp

Specifications

Volume	1.5 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	3.2 kW
Power Supply	380V, 50Hz
Chamber Dimension	1900×680×1180 mm
Housing Dimensions	2180×1460×2040 mm
Weight	1850 kg

Features

Vacuum detection function

Stainless-steel Build

Advanced welding technique

Electrolytic polishing

Multi-channel steam intake

Multi-stage heating

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 supports high-volume sterilization of medical supplies, industrial materials, and research equipment across hospitals, laboratories, clinics, pharmaceutical units, and food industries.

Horizontal Sterilizer with automated microcomputer system

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A101

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A108

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A102

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A115

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A112

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Volume: 1.2 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A119?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A119 is a steam-based sterilizer that uses vacuum pulses to remove air and ensure thorough, efficient sterilization.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A119 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 works on the principle of vacuum air removal followed by sterilization with saturated steam.

3 Can the Horizontal Pulse Vacuum Sterilizer LMPVS-A119 sterilize tools used in genetic engineering laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 sterilizes tools and vessels used in genetic engineering to ensure aseptic conditions.

4 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A119 sterilize labware used in biotechnology research?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 effectively sterilizes flasks, tubes, and other labware used in biotechnology laboratories.

5 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A119 used for sterilizing biofertilizer production tools?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 sterilizes tools and media used in biofertilizer production to prevent contamination.

6 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A119 applicable in regenerative medicine research?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 sterilizes labware and instruments essential for regenerative medicine and tissue engineering.

7 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A119 be used in cytogenetics laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 is used in cytogenetics laboratories to sterilize pipettes, slides, and sample containers for chromosome analysis.

8 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A119 support marine biology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 sterilizes sample jars, nets, and lab instruments used in marine biology research.

9 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A119 be used in mycology laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 sterilizes petri dishes, culture media, and spore-handling tools in fungal research.

10 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A119 applicable in DNA sequencing laboratories?

Horizontal Pulse Vacuum Sterilizer LMPVS-A119 ensures contamination-free conditions by sterilizing pipettes, trays, and reaction tubes used in DNA sequencing.
