Horizontal Pulse Vacuum Sterilizer LMPVS-A116

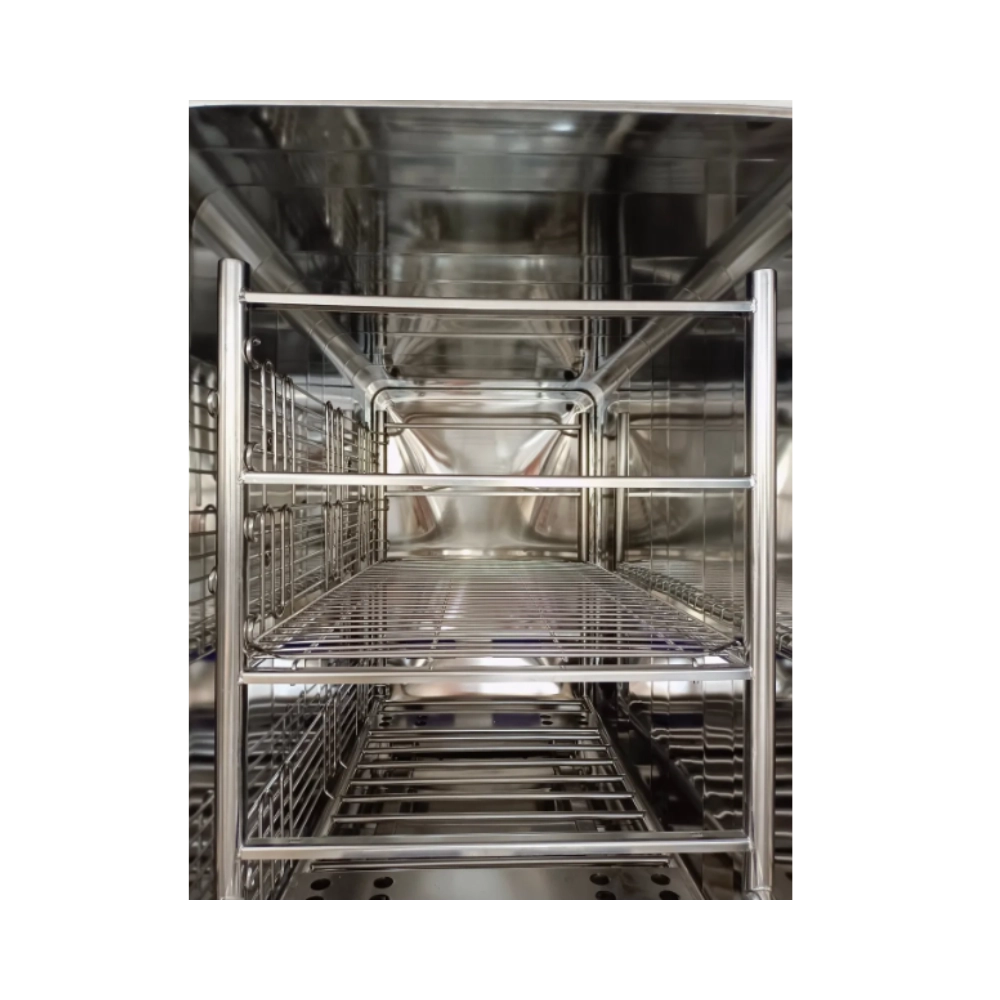

Pulse Vacuum Sterilizer with single front door and integrated control system

Horizontal Pulse Vacuum Sterilizer LMPVS-A116

Name: Horizontal Pulse Vacuum Sterilizer LMPVS-A116
Brand: Labmate
SKU: LMPVS-A116
Rating: 4.8 (414 reviews)

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 is equipped with 1.0 m³ chamber volume. Its multiple sterilization modes with intelligent microcomputer control facilitates streamlined operation. It includes adjustable parameters and vacuum detection function, for efficient sterilization with minimal leakage. It features single door structure and V-shaped base for superior sealing and drainage. Our Horizontal Pulse Vacuum Sterilizer is optimal for maintaining sterility of glassware, reagents, and lab instruments.

Catalog Send Mail Whatsapp

Specifications

Volume	1.0 m³
Design Temperature	144°C
Sterilization Temperature Range	105°C to 139°C
Inner Cavity Design Pressure	-0.1 to 0.3 MPa
Inner Cavity Working Pressure	-0.1 / 0.25 MPa
Jacket Design Pressure	0.3 MPa
Jacket Working Pressure	0.25 MPa
Inner Cavity Water Pressure Test	0.39 MPa
Jacket Water Pressure Test	0.52 MPa
Temperature Uniformity	±1°C
Limiting Vacuum	-94.3 kPa
Leakage Rate	Less than or equal to 1.3 kPa / 10 min
Temperature Difference	15°C
Power Consumption	2.4 kW
Power Supply	380V, 50Hz
Chamber Dimension	1800×610×910 mm
Housing Dimensions	2060×1280×1940 mm
Weight	1600 kg

Pricing

Product	Price	Unit	Action
Horizontal Pulse Vacuum Sterilizer LMPVS-A116	$ 59650	Each of 1

Features

Multi-channel steam intake

Stage-wise heating

Touch screen display

Stainless steel build

Advanced welding technology

Electrolytic polishing

Applications

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 is suitable for microbiology labs, clinical diagnostics, research facilities, and academic institutions for sterilizing laboratory instruments, media and glassware.

Horizontal Pulse Vacuum Sterilizer LMPVS-A113

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 58025 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A121

Volume: 2.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 94900 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A114

Volume: 0.8 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 52062.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A100

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 41750 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A106

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 40675 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A122

Sterilizing chamber volume: 150L Φ440×1000mm
Working pressure: 0.22Mpa
Working temperature: 134℃
Temperature adjust range: 115-134℃
Time for sterilization: 0-99min

$ 8337.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A118

Volume: 1.2 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 73212.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A110

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 47725 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A111

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 49350 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A120

Volume: 2.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 82425 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A109

Volume: 0.6 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 53687.5 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A103

Volume: 0.25 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 40675 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A119

Volume: 1.5 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 75925 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A117

Volume: 1.0 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 61275 / Each of 1

Horizontal Pulse Vacuum Sterilizer LMPVS-A105

Volume: 0.36 m³
Design Temperature: 144°C
Sterilization Temperature Range: 105°C to 139°C
Inner Cavity Design Pressure: -0.1 to 0.3 MPa
Inner Cavity Working Pressure: -0.1 / 0.25 MPa

$ 45000 / Each of 1

Frequently Asked Questions

1 What is a Horizontal Pulse Vacuum Sterilizer LMPVS-A116?

A Horizontal Pulse Vacuum Sterilizer LMPVS-A116 is a steam-based sterilization unit designed for efficient sterilization of laboratory and clinical equipment.

2 How does Horizontal Pulse Vacuum Sterilizer LMPVS-A116 work?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 works on the principle of vacuum air removal followed by steam sterilization.

3 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A116 used for sterilizing food processing equipment?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 is used to sterilize food processing equipment, ensuring hygienic food production.

4 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A116 used in water treatment plants?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilizes equipment and containers used in water treatment facilities.

5 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilize nanotechnology lab equipment?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilizes delicate nanotechnology lab instruments to prevent contamination.

6 Is Horizontal Pulse Vacuum Sterilizer LMPVS-A116 suitable for sterilizing biofertilizer production materials?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilizes raw materials used in biofertilizer production to eliminate contaminants.

7 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilize clinical diagnostic instruments?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilizes clinical diagnostic tools to ensure accurate test results.

8 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilize bio-safety cabinets?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilizes removable components from bio-safety cabinets, such as trays and filters, to reduce contamination risks.

9 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilize tools used in forensic sample processing?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilizes forensic tools and instruments to prevent cross-contamination of evidence.

10 Can Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilize equipment used in stem cell research?

Horizontal Pulse Vacuum Sterilizer LMPVS-A116 sterilizes culture vessels, pipettes, and tools used in stem cell research to maintain aseptic conditions.
