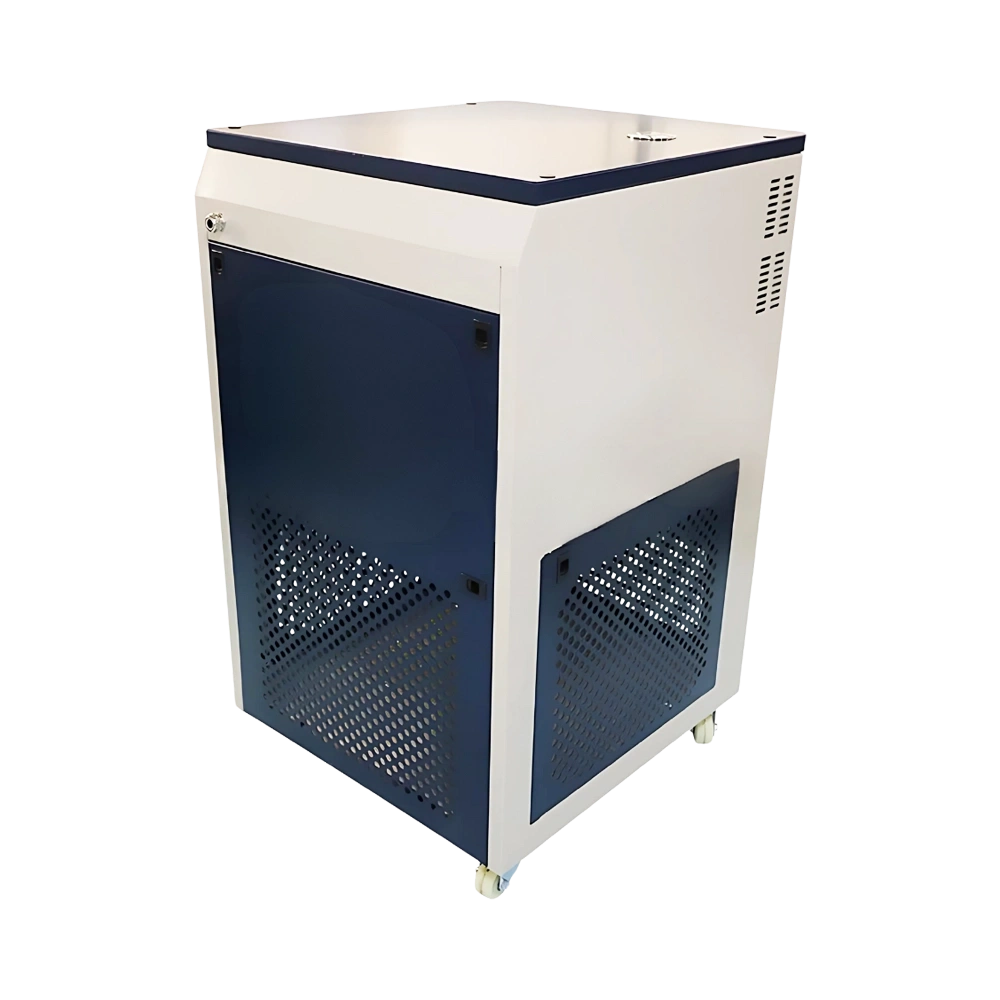

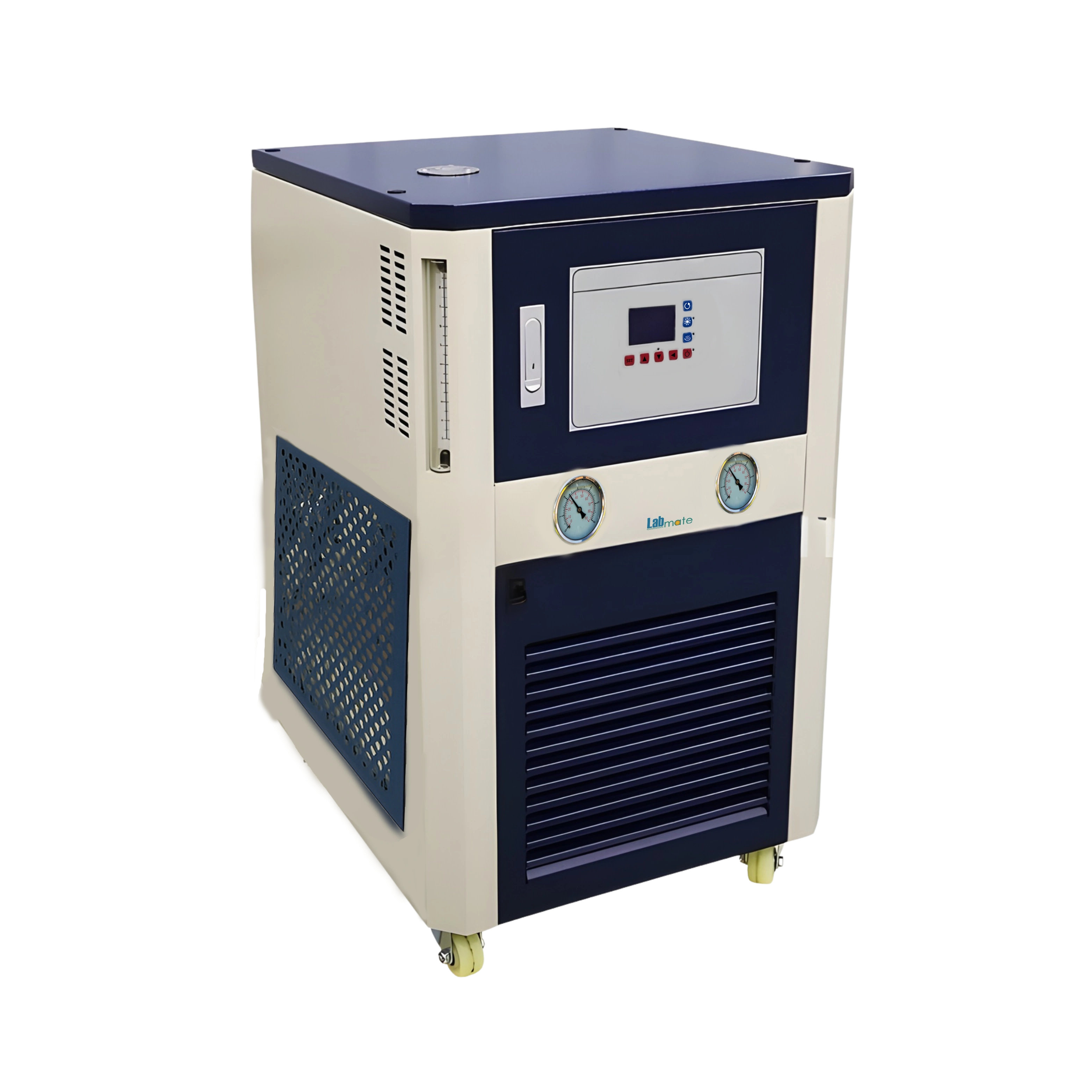

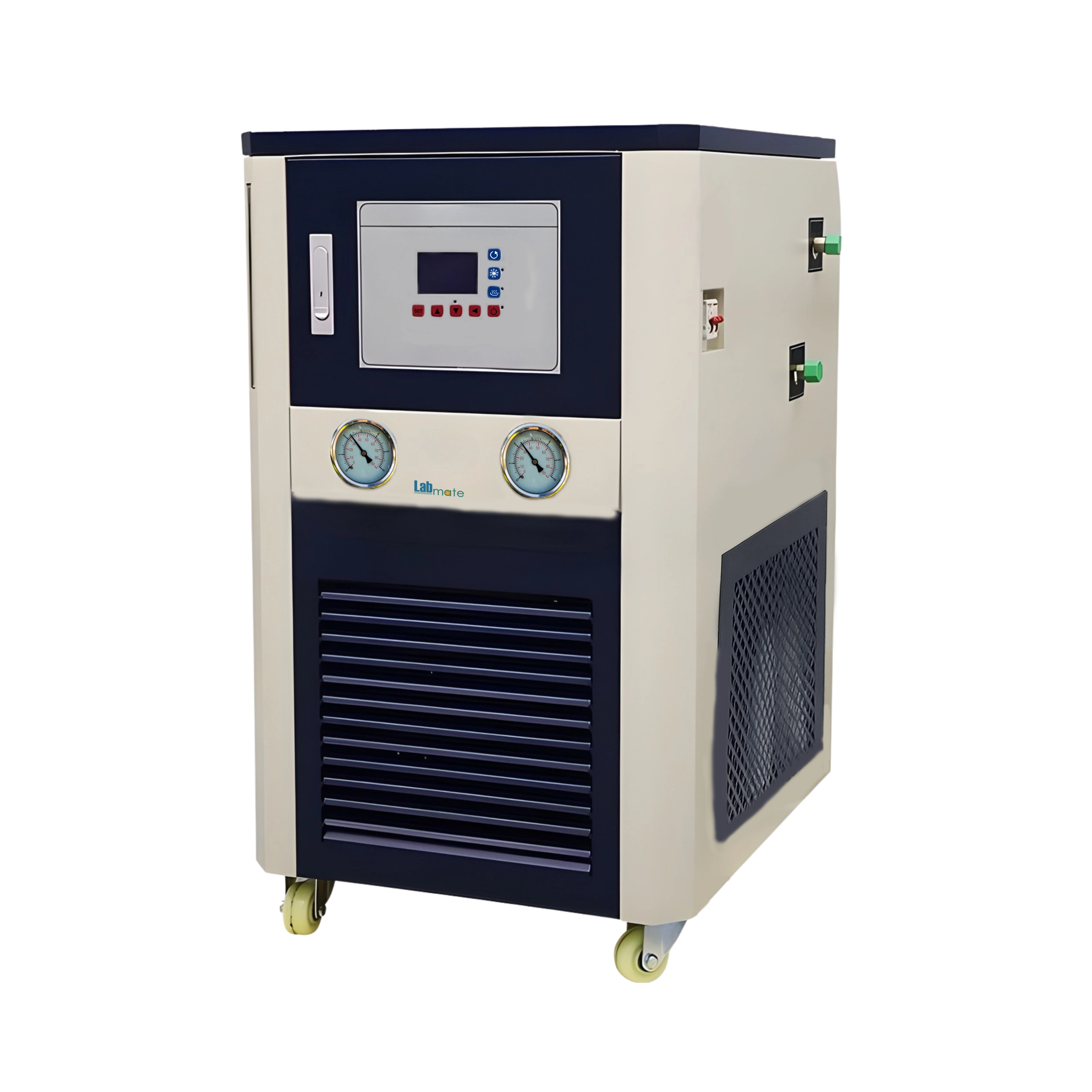

Thermal Circulator LMTMC-A114 boasts generous capacity of 100 liters. It features fully enclosed compressor for high efficiency and low noise operation. Equipped with dedicated bath fluid inlet and outlet ports to support efficient thermal transfer to external systems. Incorporates leak, overheating, and overcurrent protection to ensure safe and uninterrupted workflow. Our Circulator manages temperature effectively in reactors, pharmaceuticals, and extraction units.
Specifications
| Volume | 100 L |
| Working Temperature Range | -40 to 200℃ |
| Flow Rate | 42 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 22 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 9000W |
| Compressor Power | 5145W |
| Cooling Power | 16368W |
| Circulating Pump Power | 370W |
| Power Consumption | 15000W |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 730×880×1230 mm |
| Weight | 200 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A114 | $ 7400 | Each of 1 |
Features
Liquid level display
Digital control panel
Pressure gauges
Precooling function
Brazed plate exchanger
Mobility casters
Ventilation window
Applications
Thermal Circulator LMTMC-A114 employed for controlling temperature in reactors, semiconductors, fermentation tanks, pilot lines, UV cooling, extraction units, and sensitive food and pharmaceutical processes.
