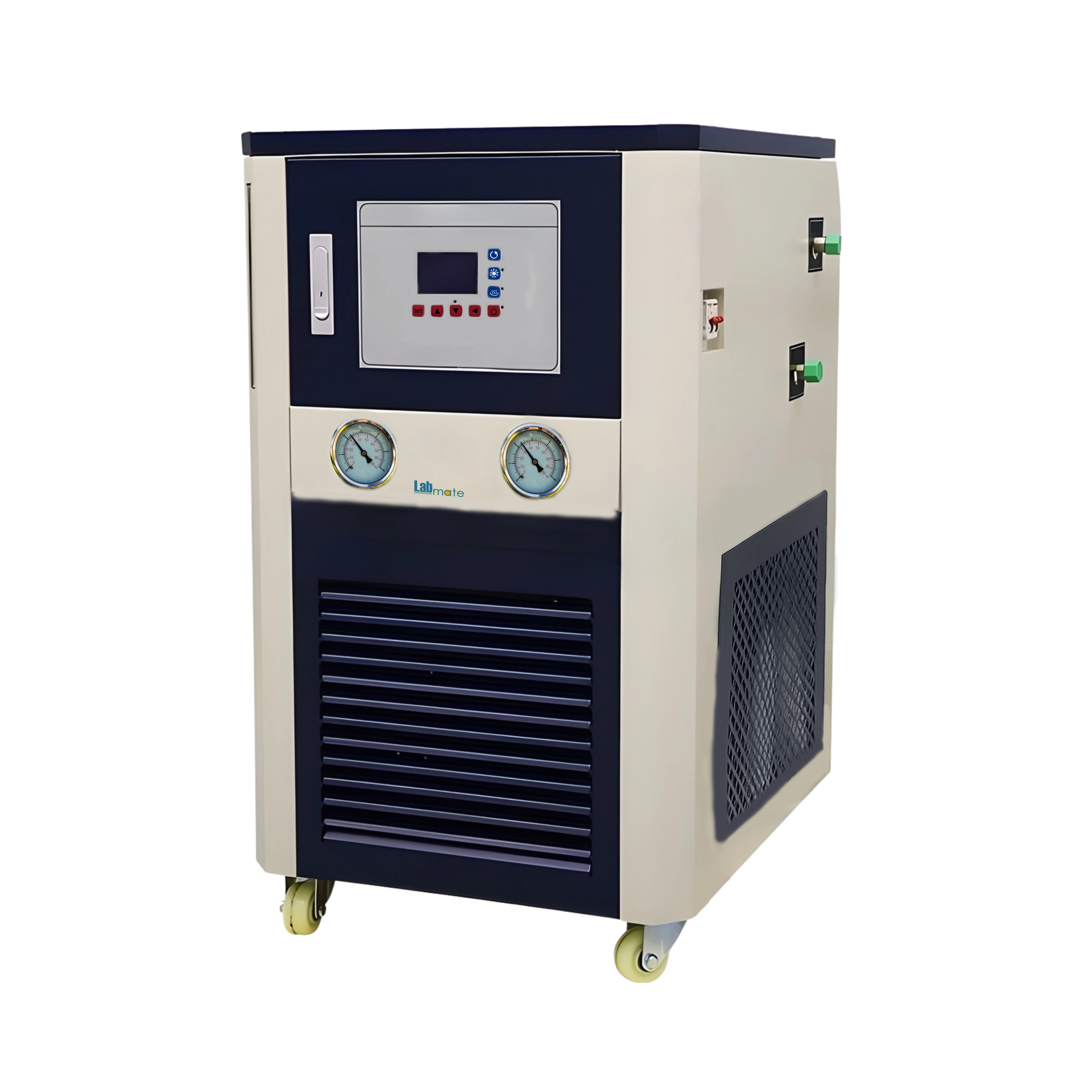

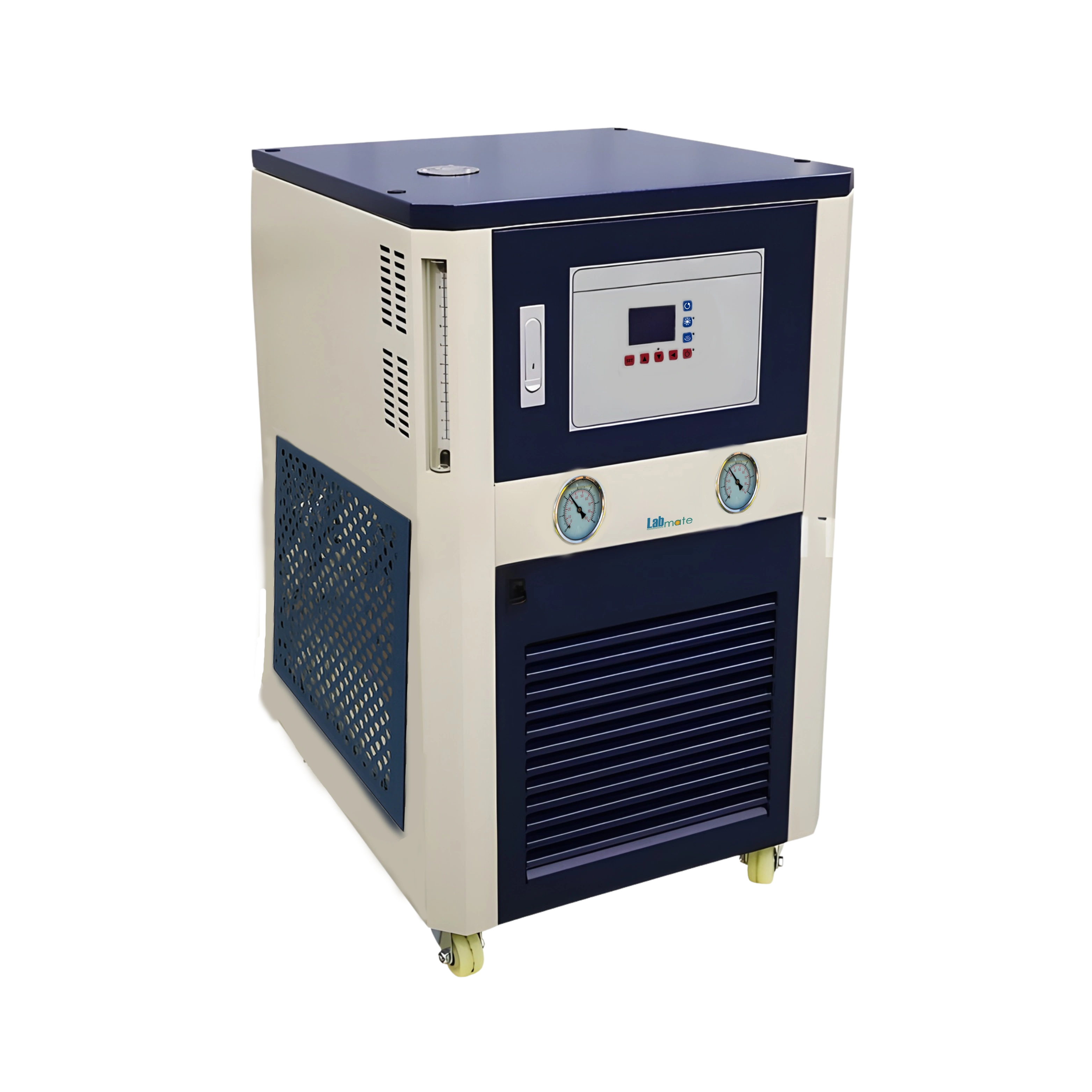

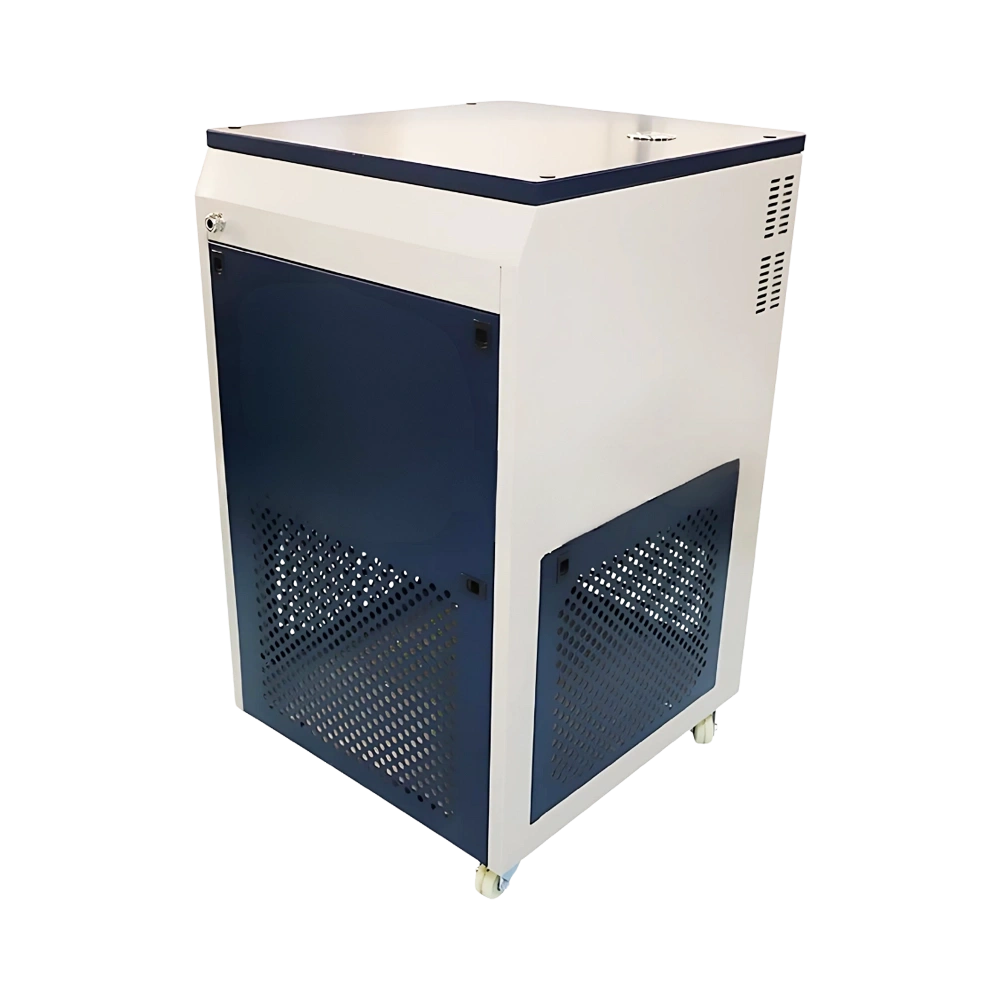

Thermal Circulator LMTMC-A102 has 10-liter capacity. It features bath fluid feeding port for easy filling and maintenance of system. Equipped with ventilation window to maintain airflow and prevent internal component overheating. Incorporates high-pressure gauge to track internal pressure during operation for performance consistency. Our Circulator ensures thermal control for bioreactors, fermentation tanks, pilot production, and extraction or mixing processes.
Specifications
| Volume | 10 L |
| Working Temperature Range | -40 to 200℃ |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 1470W |
| Cooling Power | 4648W |
| Circulating Pump Power | 100W |
| Power Consumption | 4600W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 600×640×890 mm |
| Weight | 105 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A102 | $ 4137.5 | Each of 1 |
Features
Plate heat exchanger
External PT100 support
Liquid level display
Leakage protection
Combined cooling/heating
Consistent fluid flow
Applications
Thermal Circulator LMTMC-A102 offers thermal control for UV systems, semiconductor devices, bioreactors, fermentation tanks, pilot-scale production of peptides, beverages, and oral liquids.
