Get Quote
Contact us now to receive a detailed quotation.

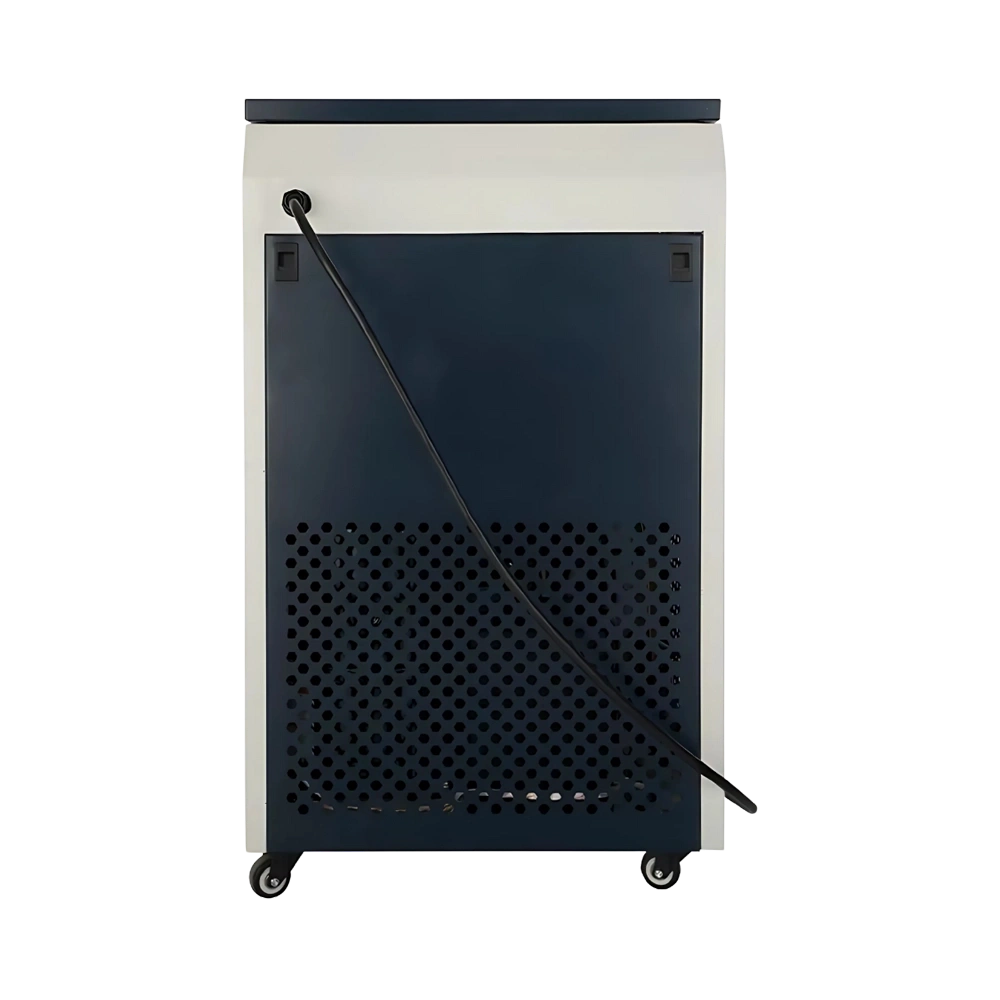

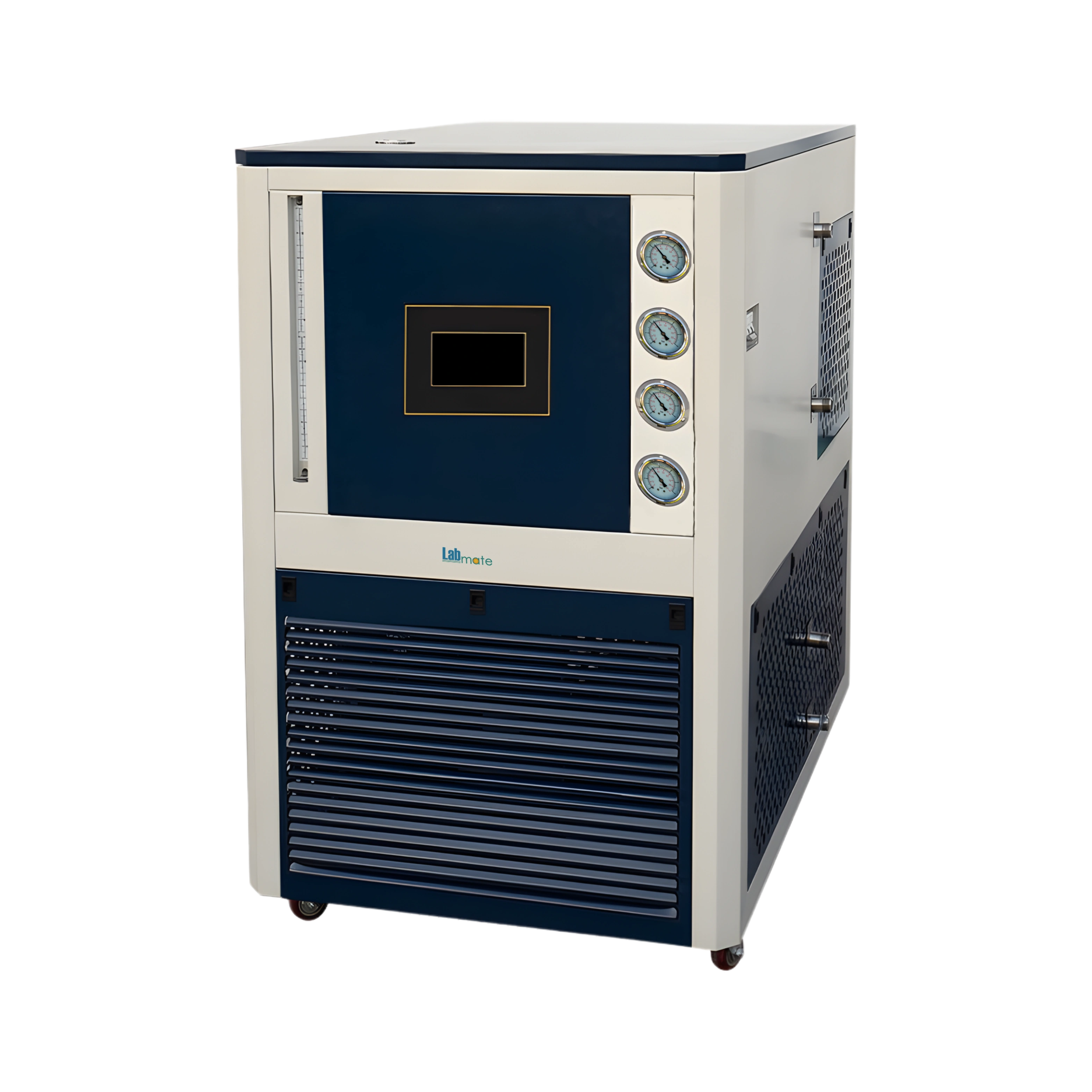

Thermal Circulator LMTMC-A106 provides reactor capacity of 20 liter. It features external PT100 sensor compatibility for responsive and reliable temperature monitoring. Equipped with brazed plate heat exchanger, it ensures compact structure and high heat exchange efficiency. Incorporates separate bath fluid inlet and outlet ports for smooth fluid circulation. Our Circulator enables consistent thermal control of equipment and processes in lab and industrial research.
Specifications
| Volume | 20 L |
| Working Temperature Range | -80 to 200℃ |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 4500W |
| Compressor Power | 4410W |
| Cooling Power | 13944W |
| Circulating Pump Power | 100W |
| Power Consumption | 10510W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 950×650×1100 mm |
| Weight | 160 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A106 | $ 7400 | Each of 1 |
Features
Combined cooling/heating
Stable thermal output
Digital control panel
Pressure gauge
Liquid level display
Leakage protection
Overheating shield
Applications
Thermal Circulator LMTMC-A106 is extensively employed for reliable temperature control of equipment and processes in the industrial, lab, research, biotech, chemical, pharmaceutical, and food industries.
