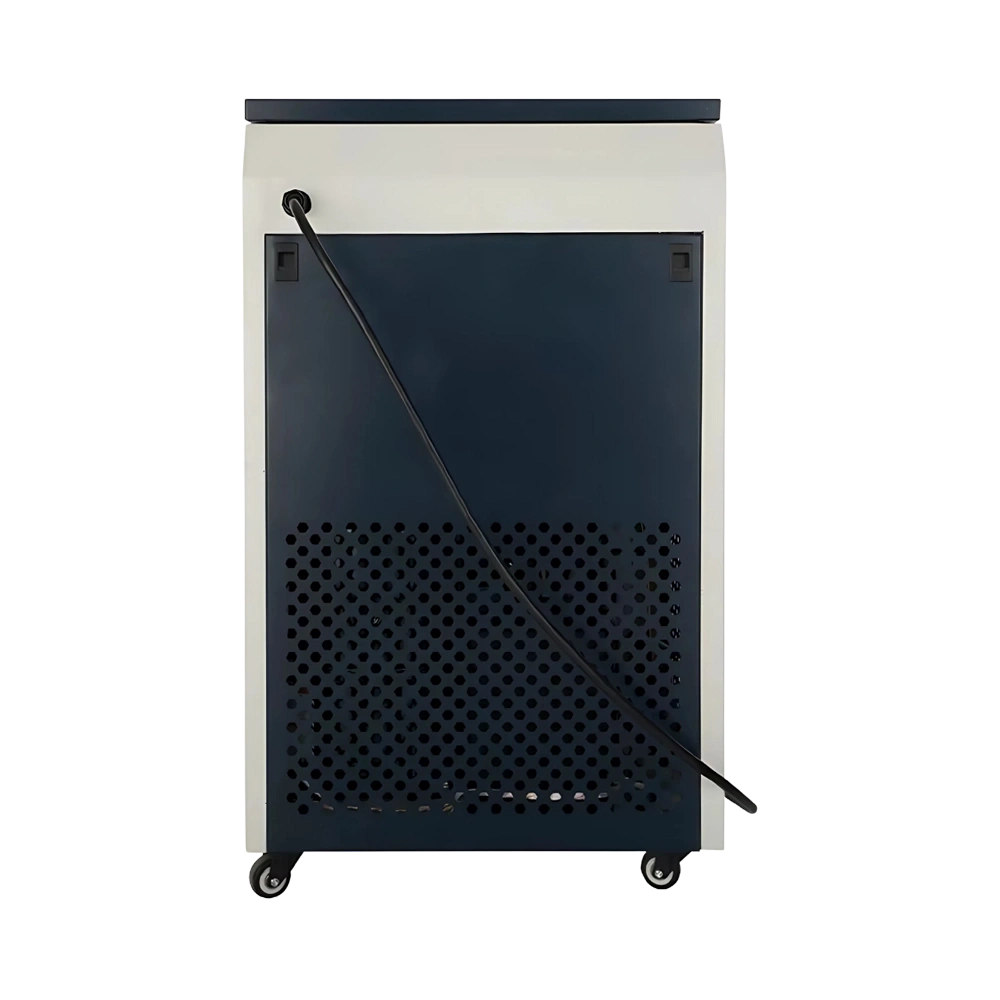

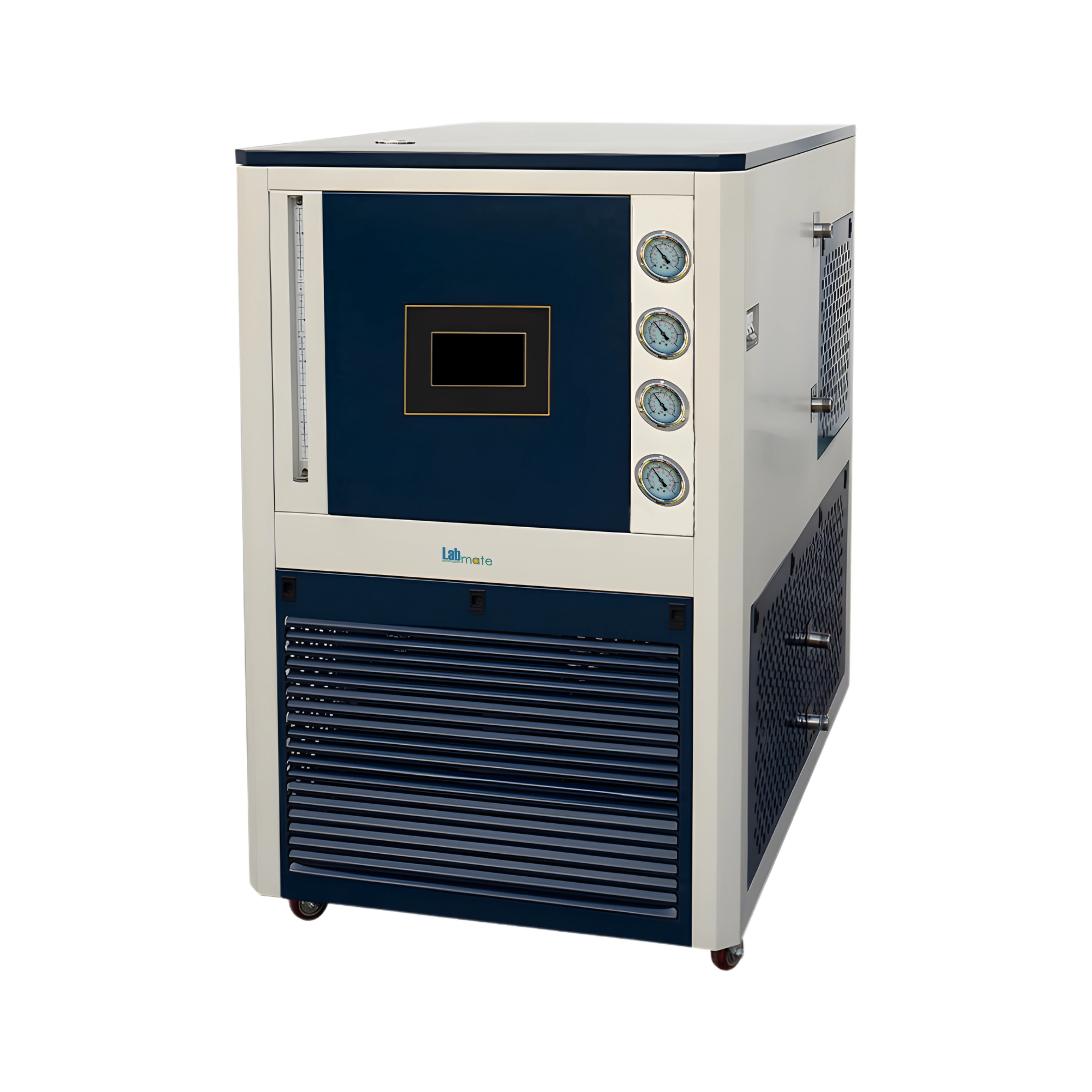

Thermal Circulator LMTMC-A103 comes with 10-liter capacity. It features dedicated cooling water inlet and outlet connections that allow effective heat dissipation. Equipped with high- and low-vacuum gauges, it monitors system pressure and ensures stable refrigeration. Incorporates digital control panel for temperature regulation and operational adjustments. Our Circulator provides reliable thermal control for equipment and processes across various fields.
Specifications
| Volume | 10 L |
| Working Temperature Range | -80 to 200℃ |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 2205W |
| Cooling Power | 6972W |
| Circulating Pump Power | 100W |
| Power Consumption | 7510W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 804×703×970 mm |
| Weight | 170 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A103 | $ 7237.5 | Each of 1 |
Features
Plate heat exchanger
External PT100 support
Liquid level display
Leakage proof
Overheating protection
Bath fluid port
Ventilation window
Applications
Thermal Circulator LMTMC-A103 is ideal for providing reliable temperature control for equipment and processes across industrial, laboratory, research, biotechnology, chemical, pharmaceutical, and food sectors.
