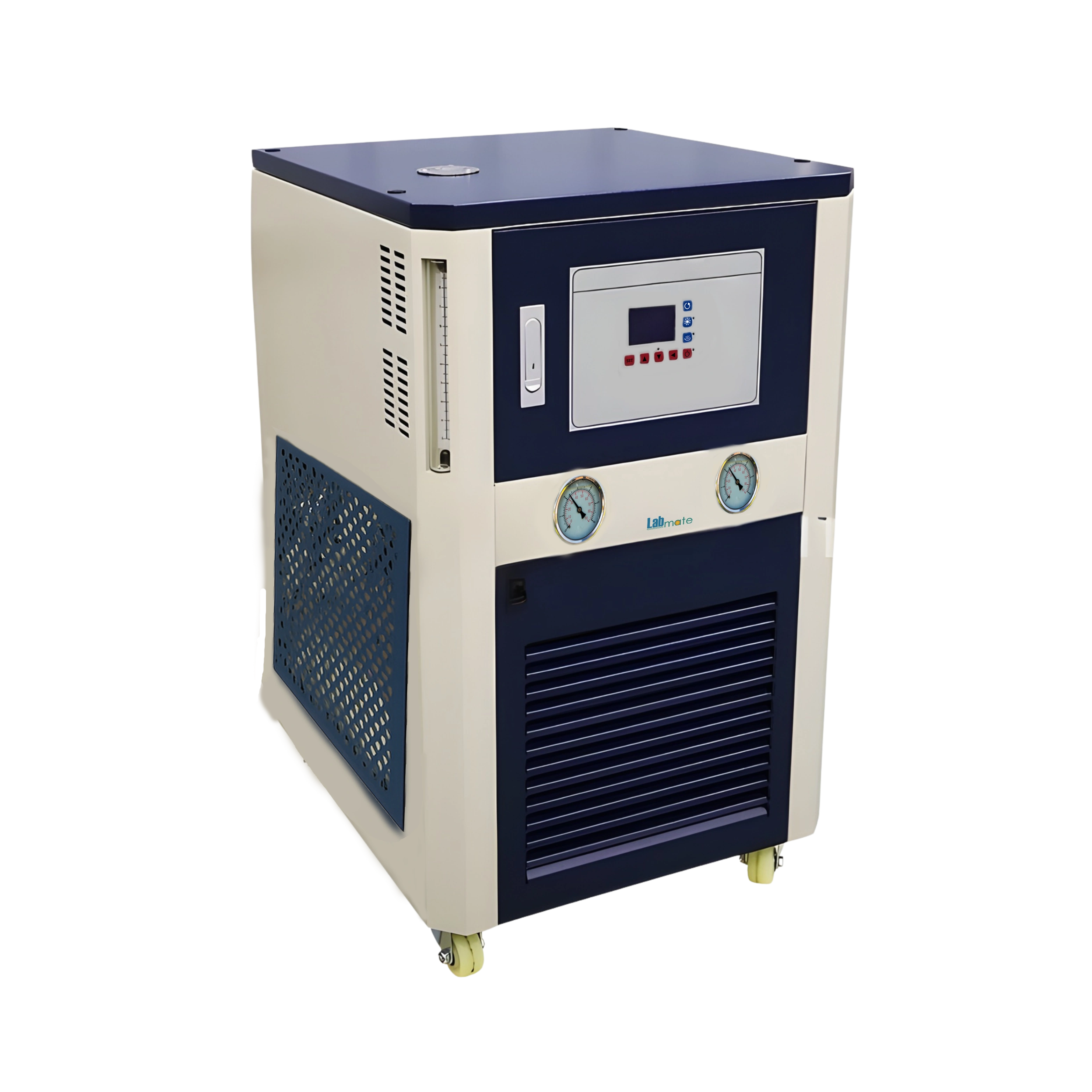

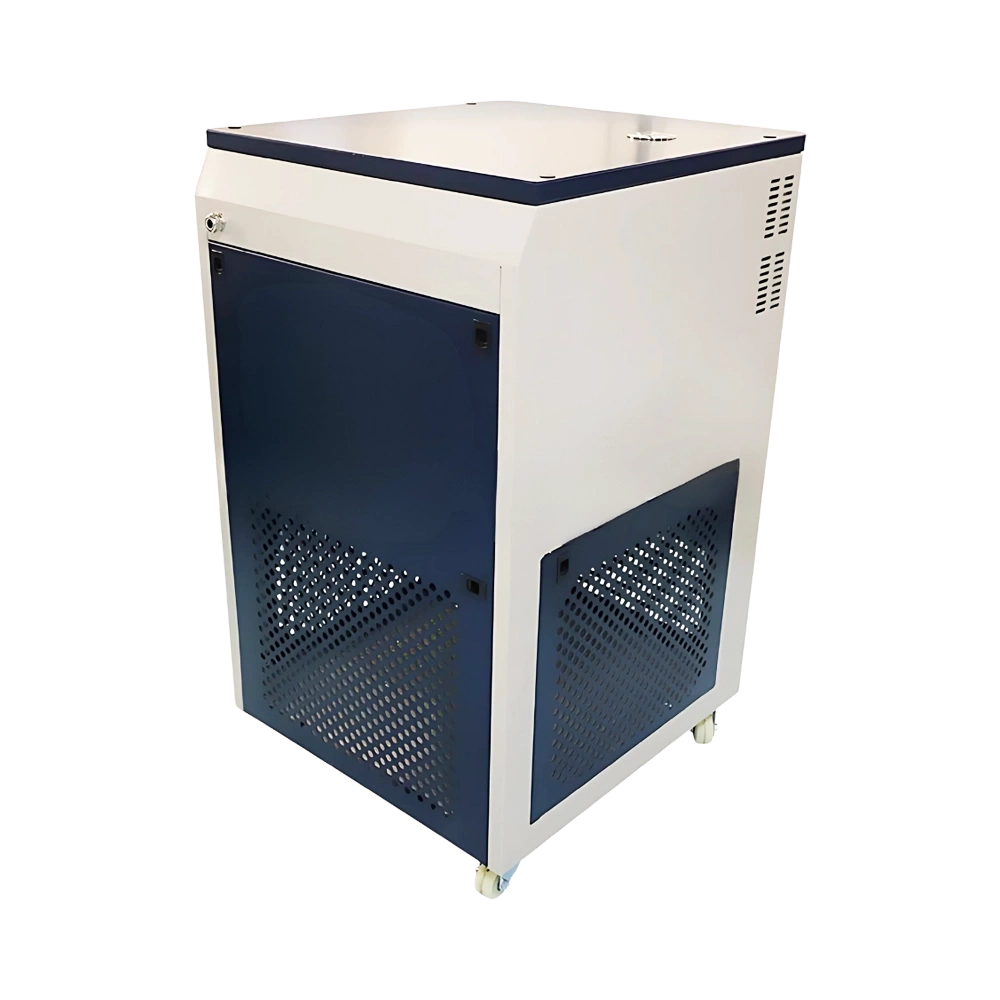

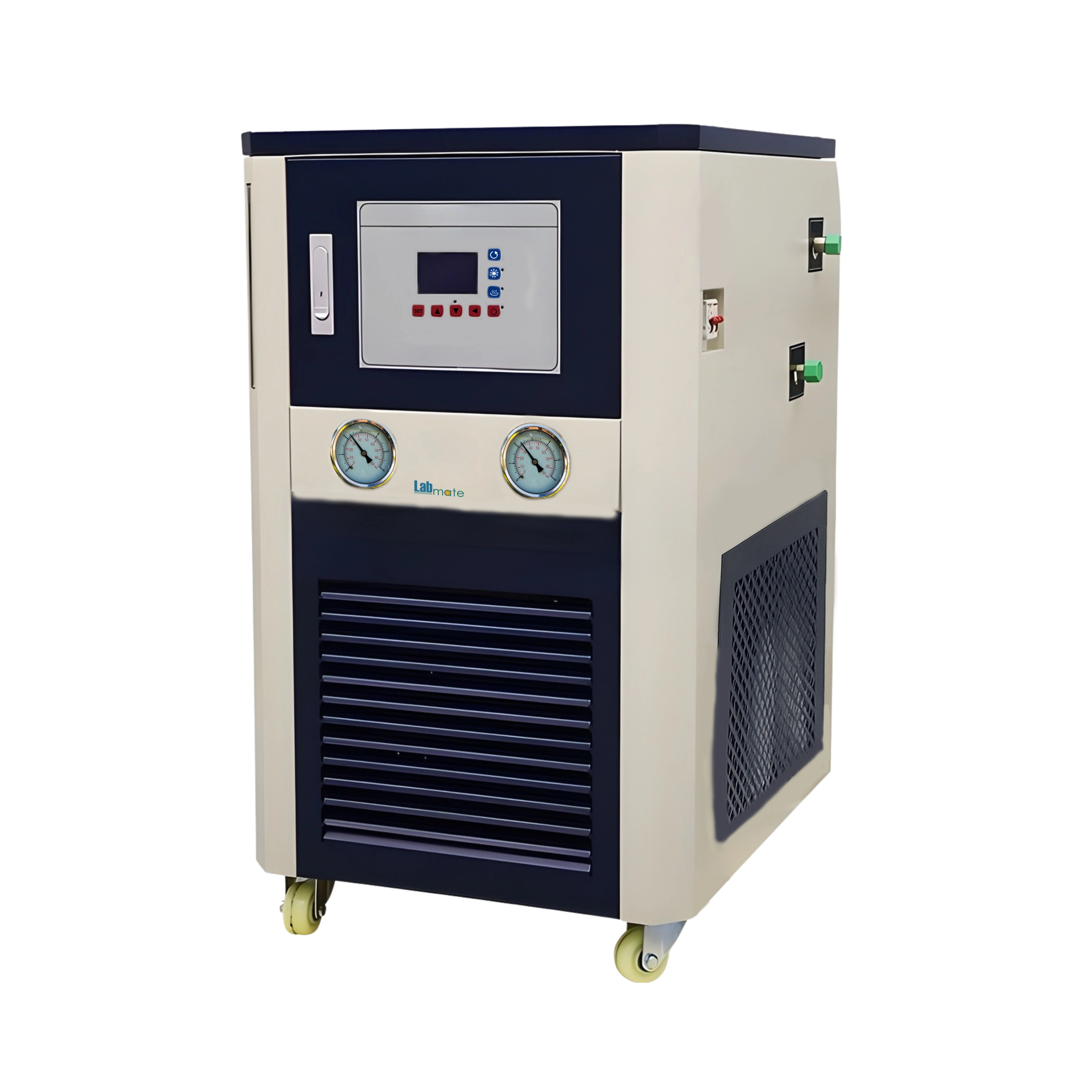

Thermal Circulator LMTMC-A113 boasts generous capacity of 100 liters. It features digital control panel for adjusting and displaying thermal settings with an intuitive interface. Equipped with front observation window, it allows for real-time liquid level monitoring. Incorporates high- and low-pressure gauges for evaluating system performance and ensuring optimal operation. Our Circulator manages temperature effectively in reactors, pharmaceuticals, and sensitive systems.
Specifications
| Volume | 100 L |
| Working Temperature Range | -30 to 200℃ |
| Flow Rate | 42 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 22 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 9000W |
| Compressor Power | 4416W |
| Cooling Power | 13248W |
| Circulating Pump Power | 370W |
| Power Consumption | 14000W |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 730×880×1230 mm |
| Weight | 200 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A113 | $ 7237.5 | Each of 1 |
Features
Closed circulation
Enclosed compressor
Brazed plate exchanger
Bath fluid ports
Mobility casters
Pilot line integration
Applications
Thermal Circulator LMTMC-A113 effectively manages temperature in reactors, semiconductors, fermentation tanks, peptide setups, pilot lines, UV cooling, extraction units, calorimeters, and sensitive food and pharmaceutical processes.
