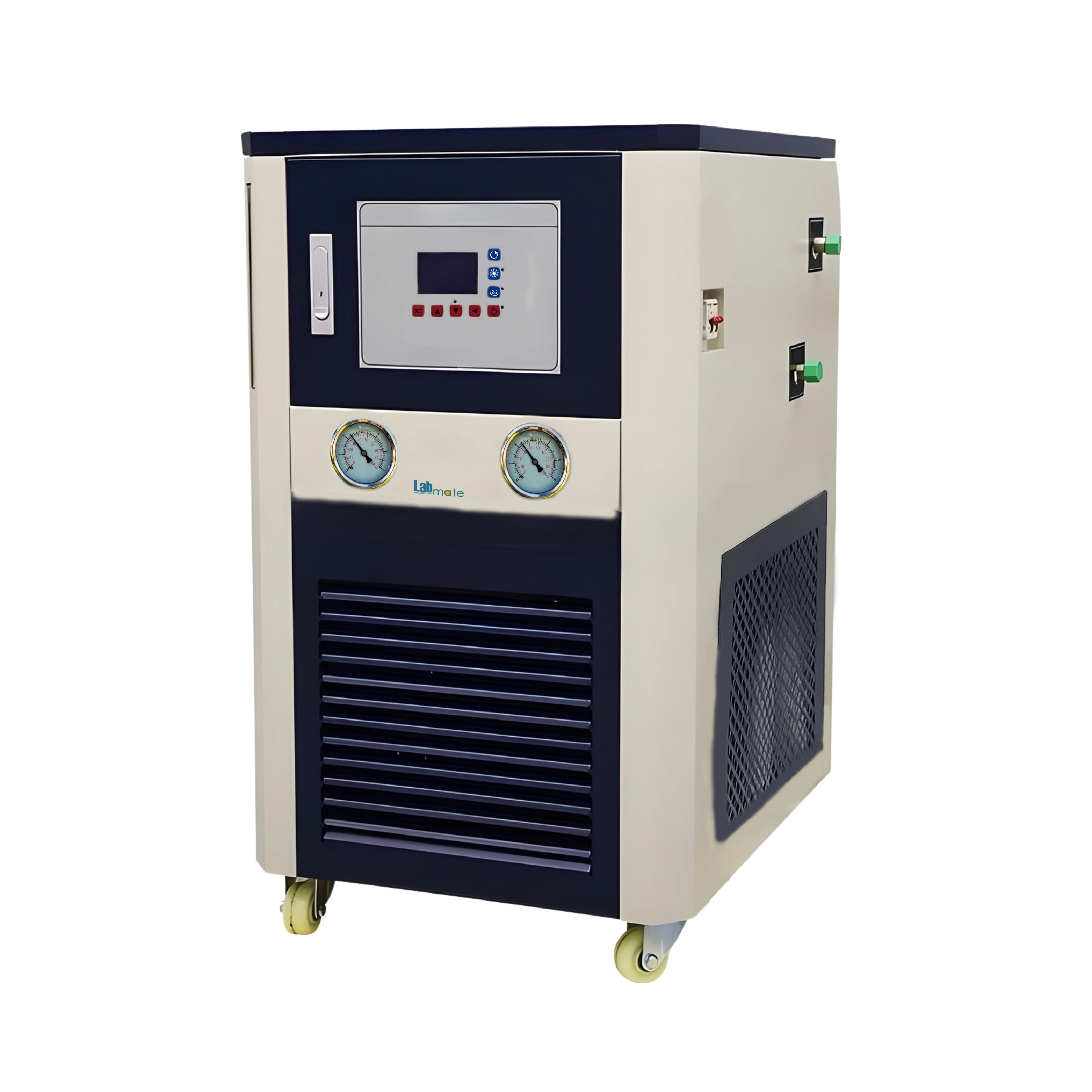

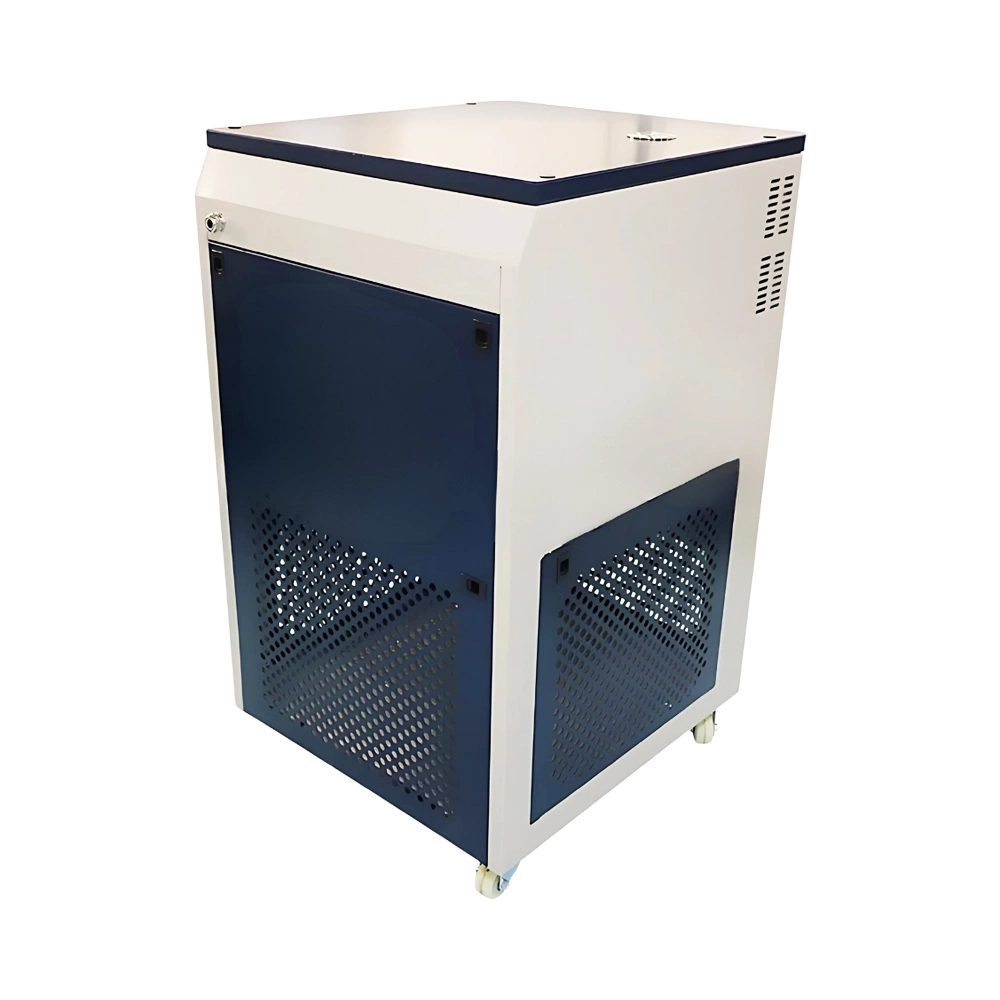

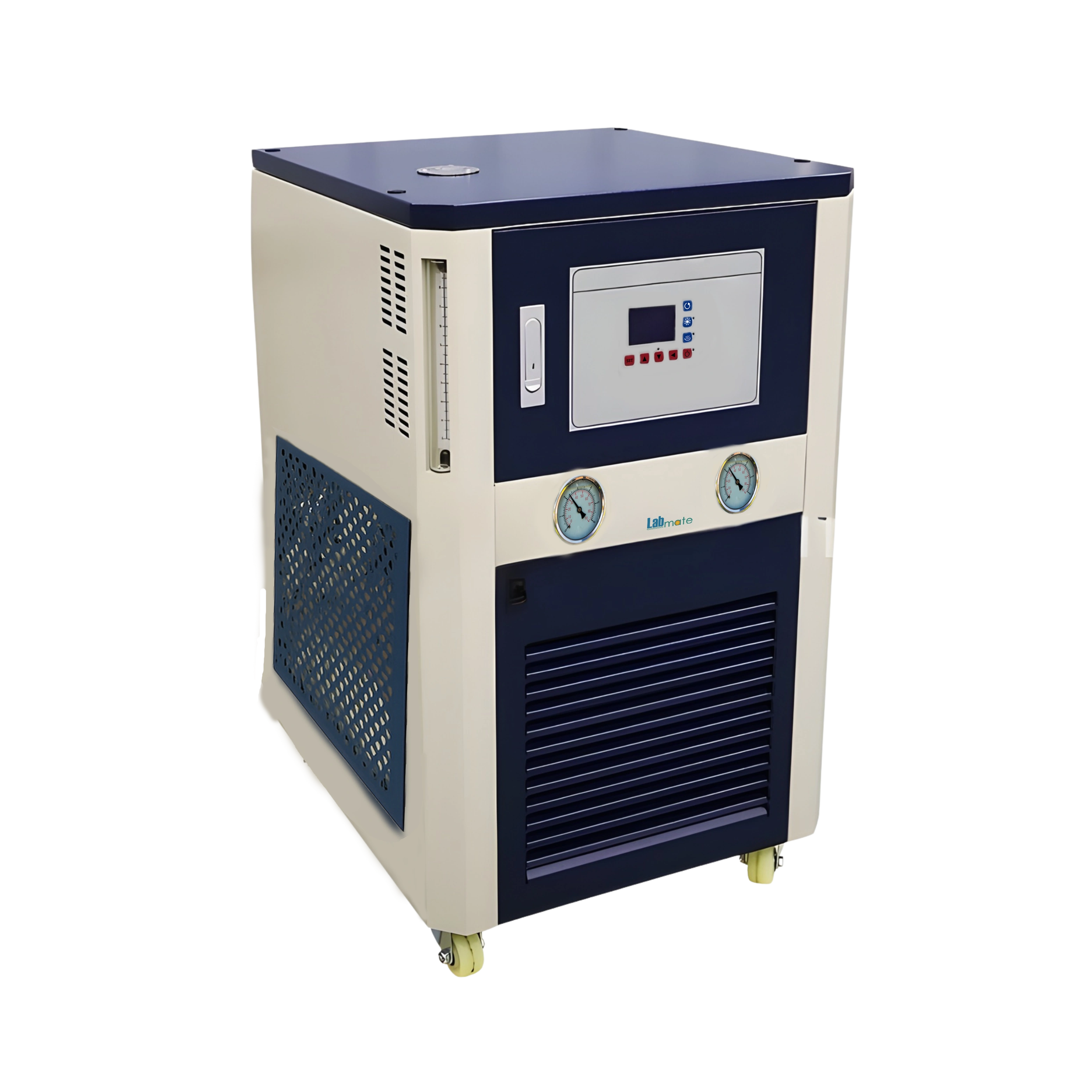

Thermal Circulator LMTMC-A107 boasts reactor capacity of 30 liters. It features high-pressure gauge to track system pressure during operation for performance consistency. Equipped with real-time liquid level display, it allows continuous process and timely maintenance checks. Incorporates separate bath fluid inlet and outlet ports for smooth fluid circulation. Our Circulator is ideal for heating and cooling for equipment in reactors, bioprocessing, and pilot-scale production.
Specifications
| Volume | 30 L |
| Working Temperature Range | -30 to 200℃ |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 4500W |
| Compressor Power | 1838W |
| Cooling Power | 4648W |
| Circulating Pump Power | 100W |
| Power Consumption | 6500W |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 630×670×990 mm |
| Weight | 120 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A107 | $ 4825 | Each of 1 |
Features
Plate heat exchanger
External PT100 support
Digital control panel
Ventilation window
Overheating protection
Reactor compatibility
Applications
Thermal Circulator LMTMC-A107 provides reliable heating and cooling for equipment in reactors, semiconductors, bioprocessing, and pilot-scale production across food, pharmaceutical, and research industries.
