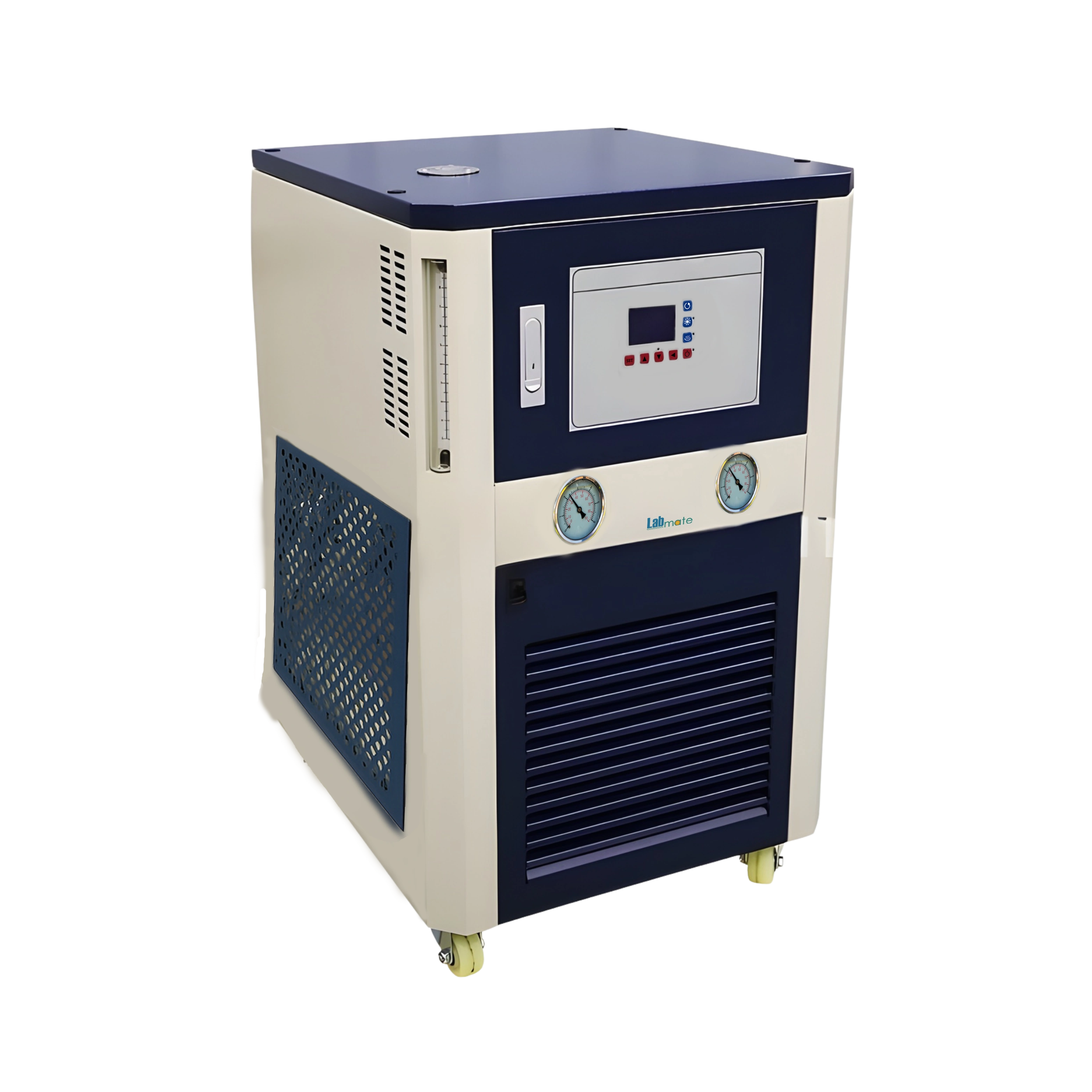

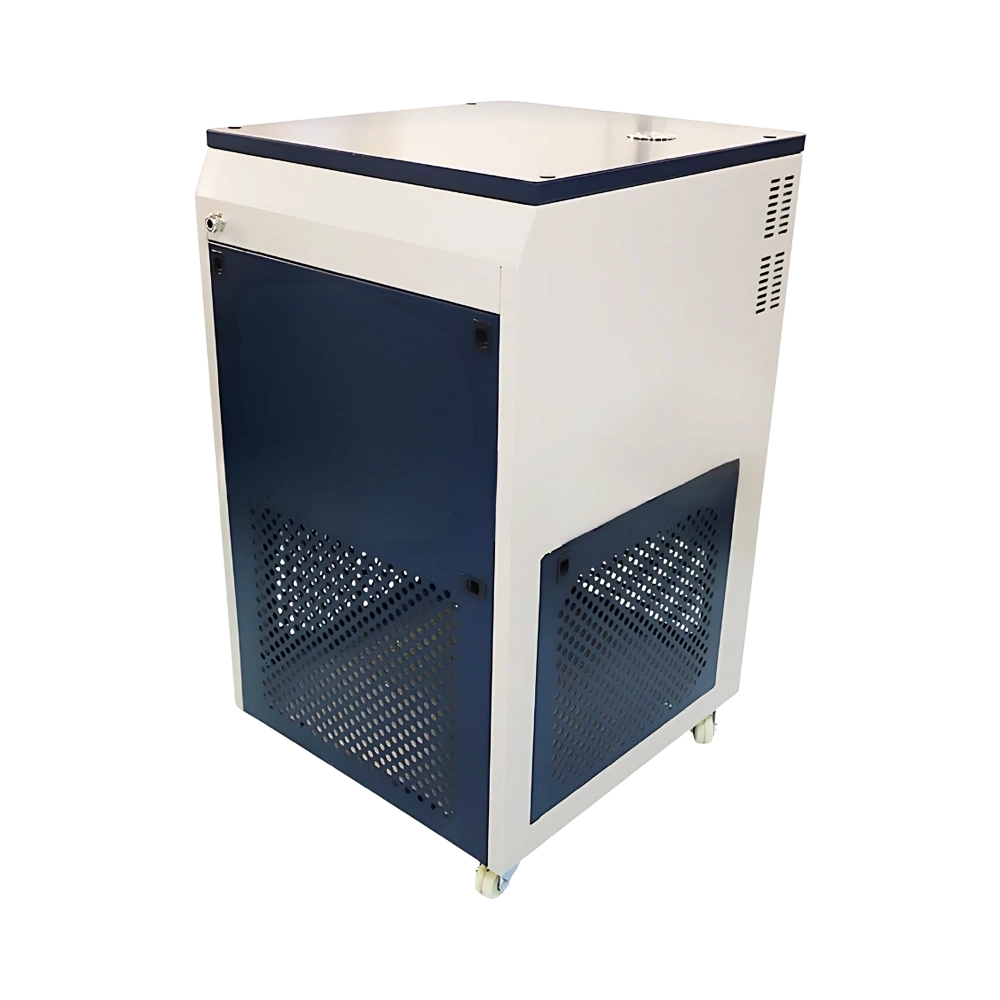

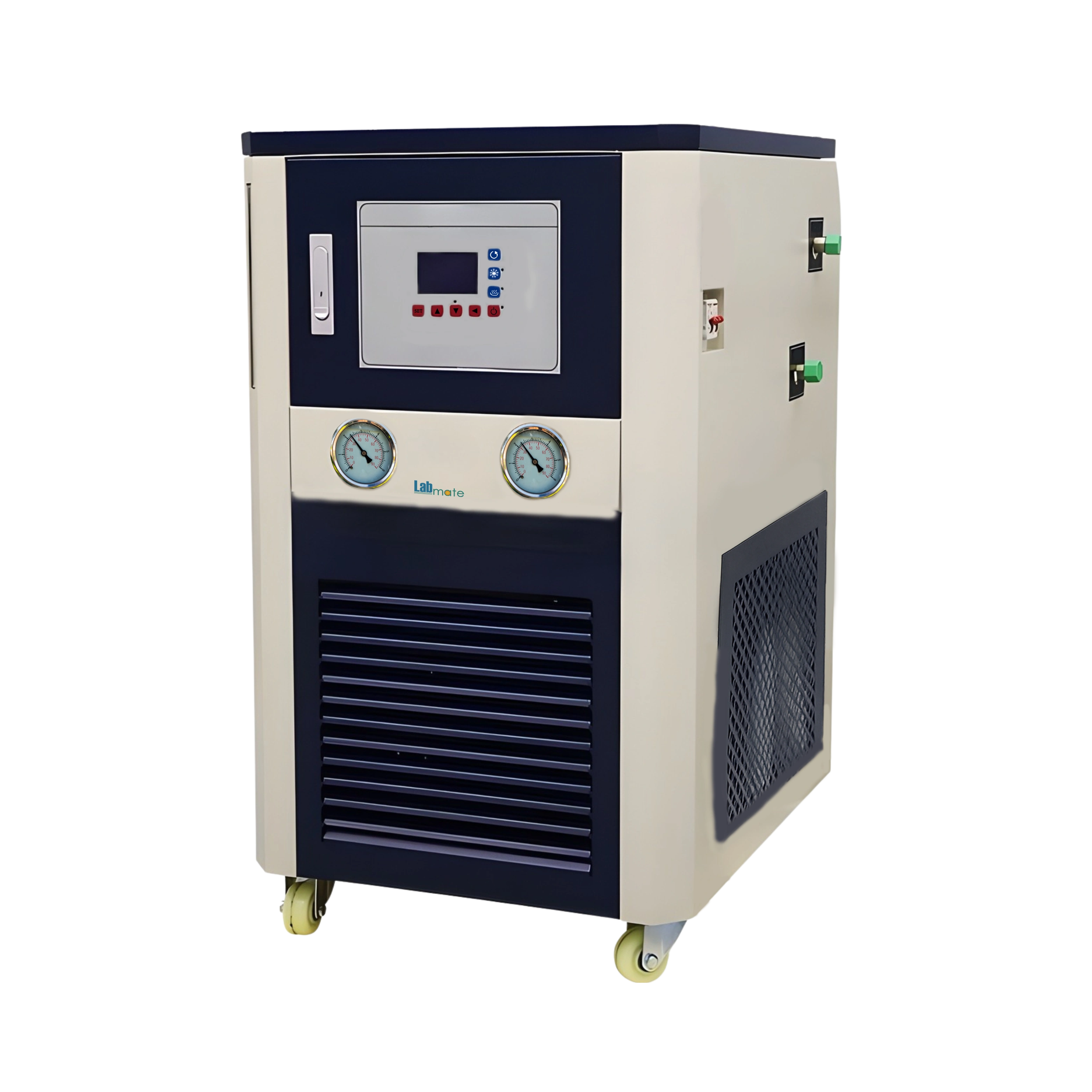

Thermal Circulator LMTMC-A105 is designed with 20-liter reactor capacity. It features fully closed circulation system that extends heat transfer and prevents contamination. Equipped with combined precooling, refrigeration, and heating mechanism for stable and flexible thermal output. Incorporates liquid level observation window to monitor fluid levels in real time. Our Circulator enables reliable temperature control of equipment and processes in research and industries.
Specifications
| Volume | 20 L |
| Working Temperature Range | -40 to 200℃ |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 2205W |
| Cooling Power | 6972W |
| Circulating Pump Power | 100W |
| Power Consumption | 5400W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 630×670×990 mm |
| Weight | 104 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A105 | $ 4825 | Each of 1 |
Features
Pressure gauge
Durable casters
Digital control panel
External pt100 support
Leakage proof
Overheating protection
Prevent overcurrent
Applications
Thermal Circulator LMTMC-A105 is commonly applied for reliable temperature control of equipment and processes in industrial, lab, research, biotech, chemical, pharmaceutical, and food domains.
