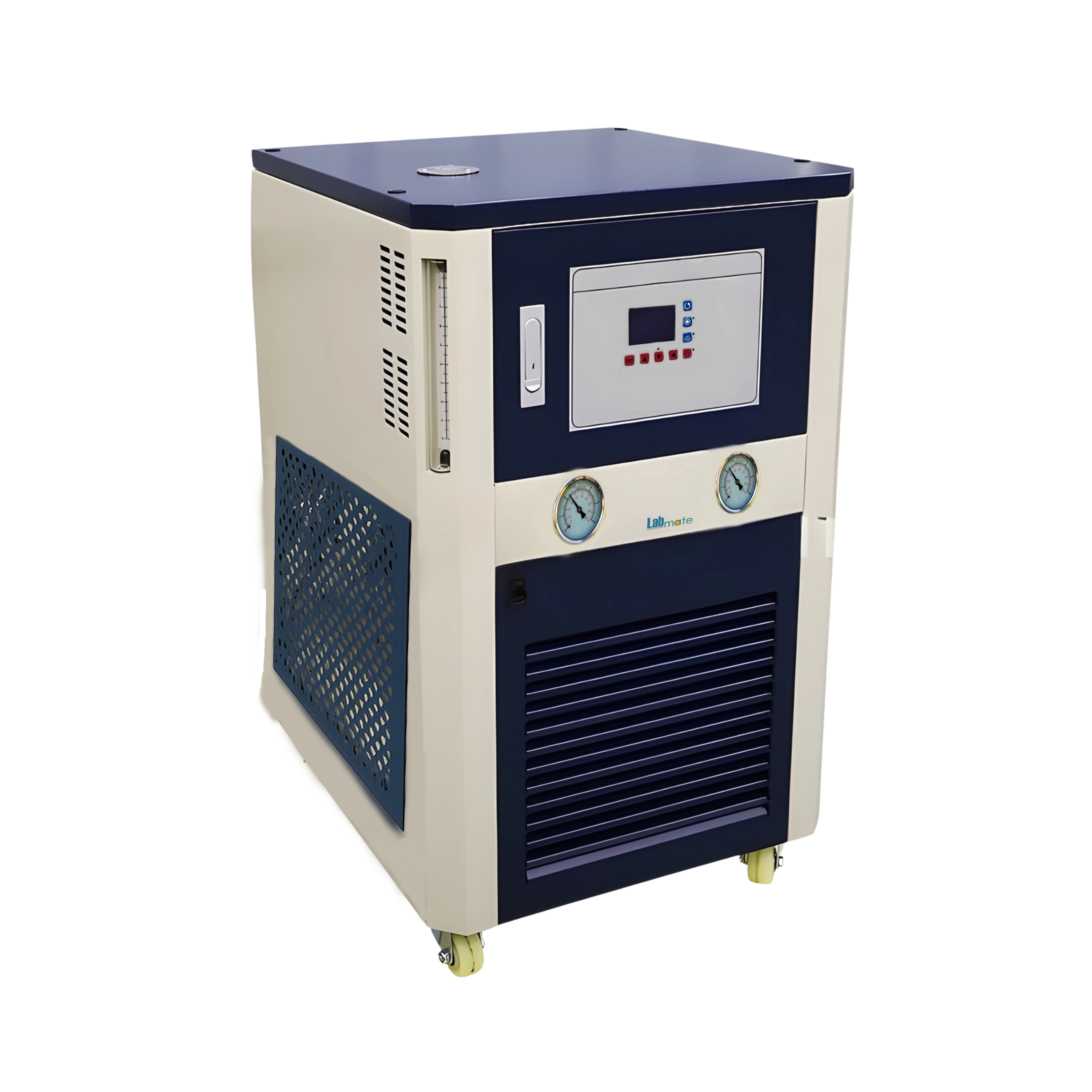

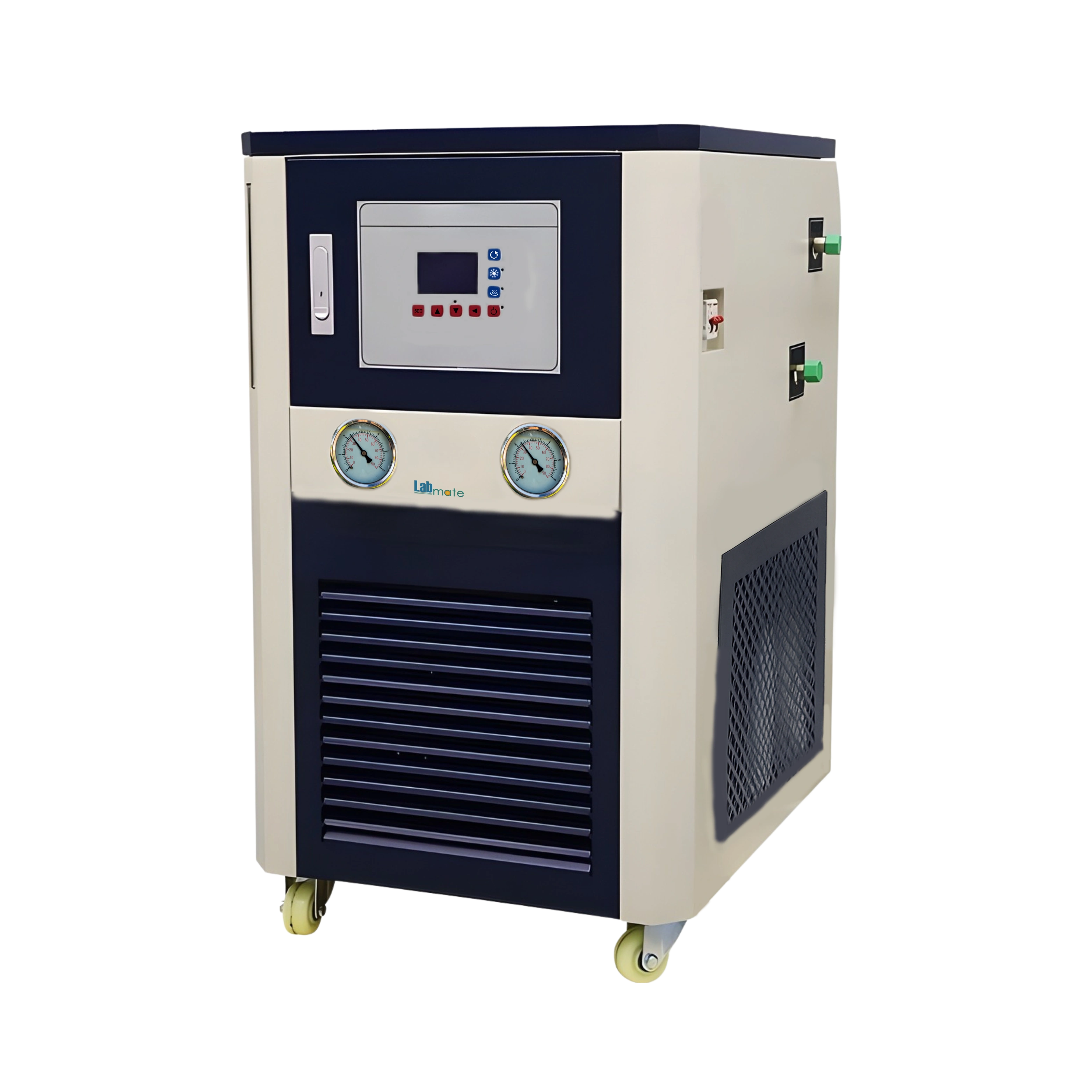

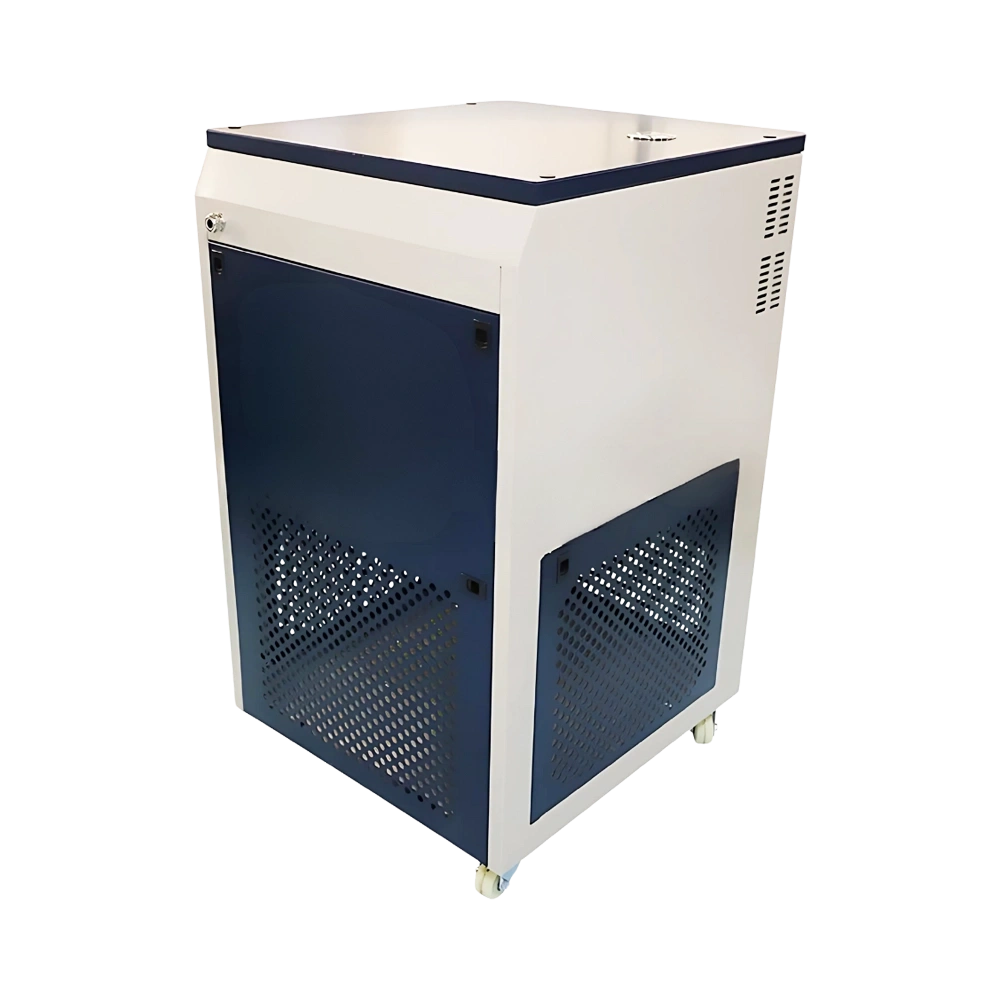

Thermal Circulator LMTMC-A100 is designed to offer 5 L capacity. It features fully enclosed compressor that delivers high efficiency with low operational noise. Equipped with external PT100 sensor compatibility for reliable temperature monitoring. Incorporates real-time liquid level display to support continuous operation and timely maintenance checks. Our Circulator ensures thermal control for reactors, semiconductors, and diverse pilot production lines.
Specifications
| Volume | 5 L |
| Working Temperature Range | -20 to 200℃ |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 2000W |
| Compressor Power | 736W |
| Cooling Power | 2208W |
| Circulating Pump Power | 100W |
| Power Consumption | 2900W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 640×570×870 mm |
| Weight | 105 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A100 | $ 3925 | Each of 1 |
Features
Compact heat exchanger
Precooling function
Overcurrent protection
Leakage proof
Pressure gauge
Caster wheel
Applications
Thermal Circulator LMTMC-A100 enables cooling UV and semiconductor devices, supporting protein and peptide production, managing bioreactors and fermentation tanks, and aiding pilot production lines for beverages, oral liquids, and dairy products.
