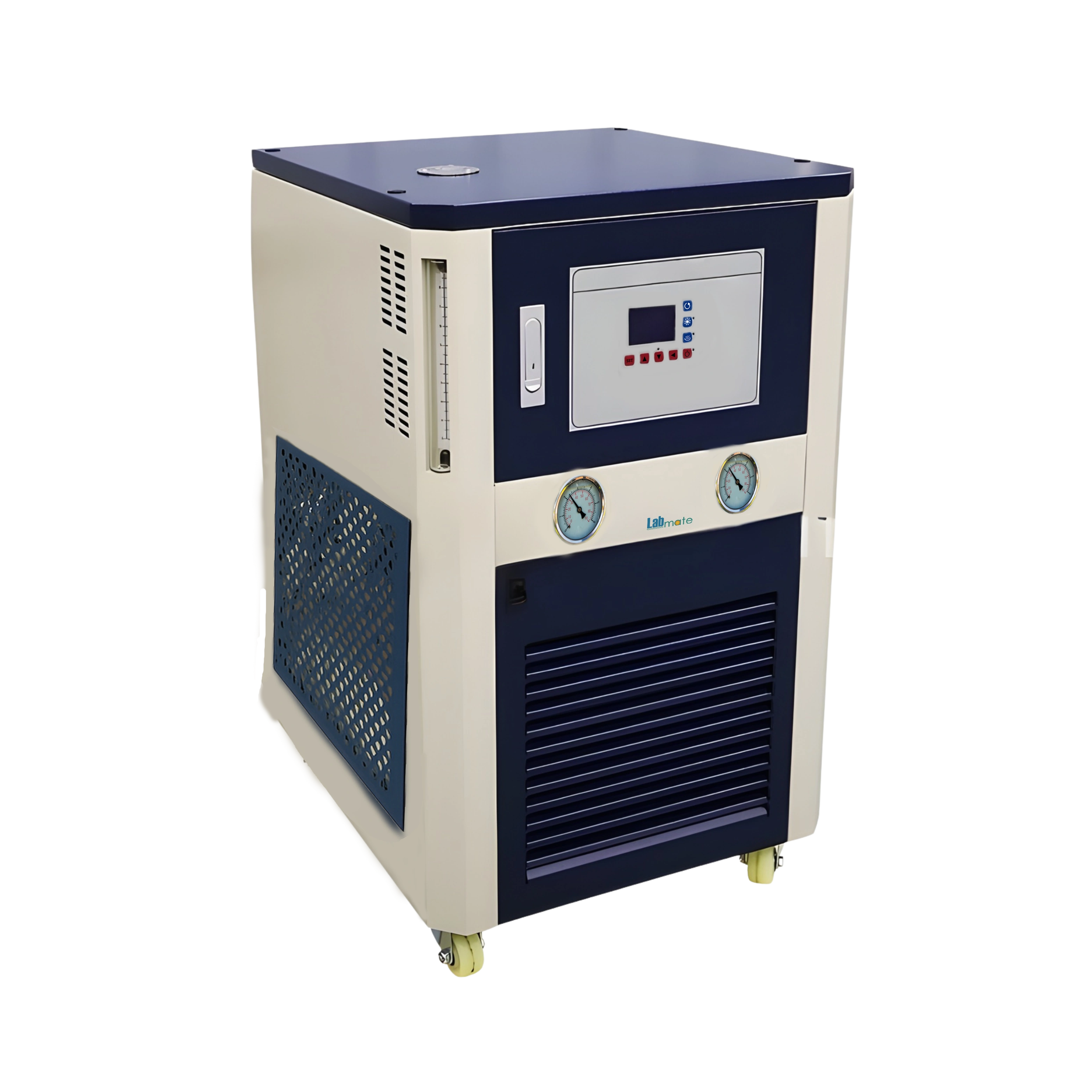

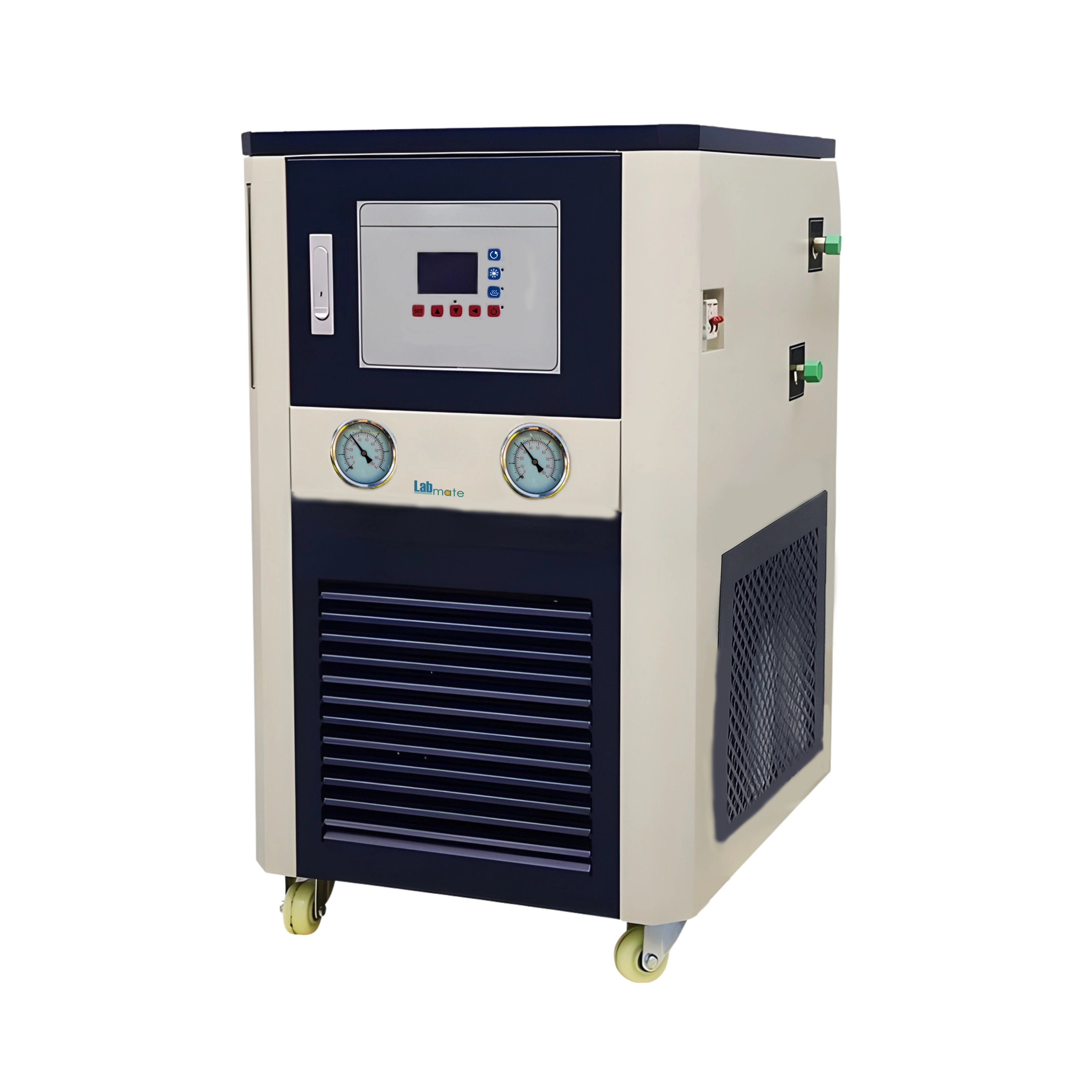

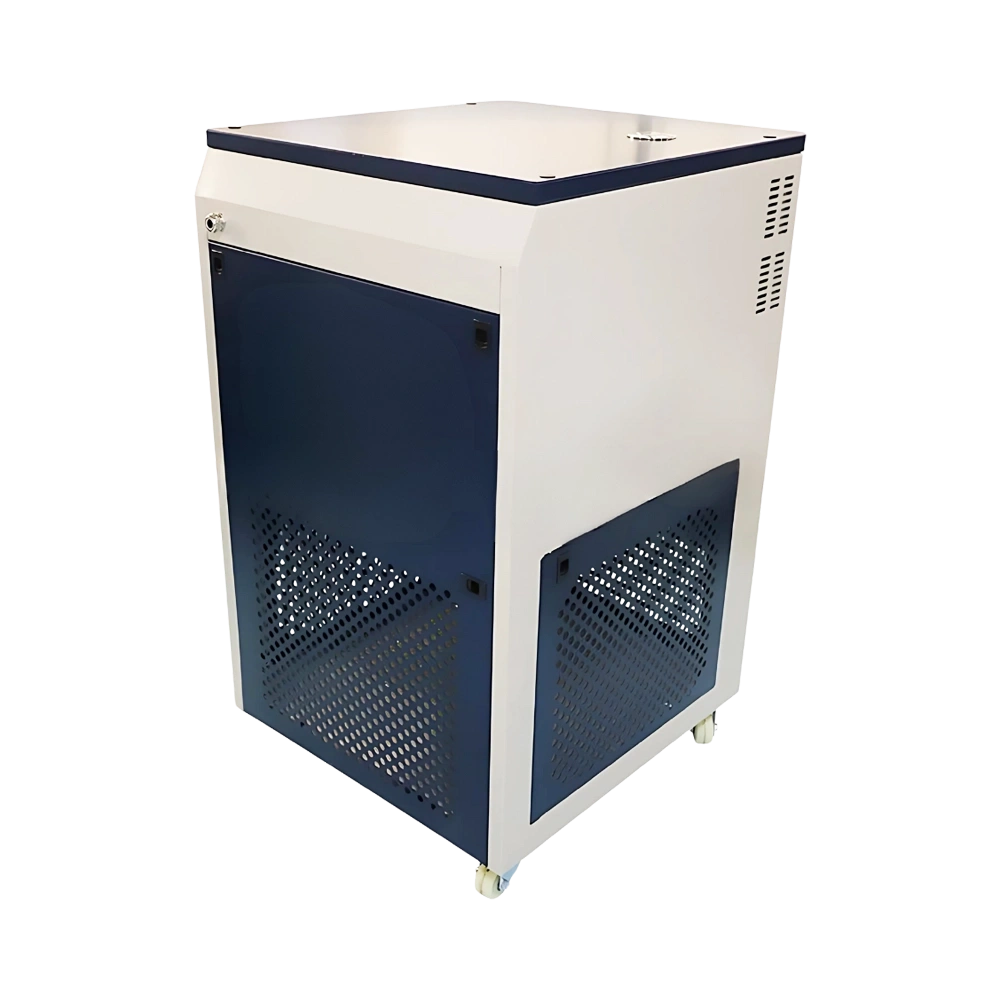

Thermal Circulator LMTMC-A111 offers capacity 50 liters. It features high and low-pressure gauges for monitoring system performance and ensuring optimal conditions. Equipped with compact brazed plate heat exchanger for space-saving design and high heat transfer rate. Incorporates an external PT100 temperature sensor connection for temperature tracking. Our Circulator is ideal for reactors, semiconductors, lab tanks, pilot lines, and pharma operations.
Specifications
| Volume | 50 L |
| Working Temperature Range | -40 to 200℃ |
| Flow Rate | 30 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 15 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 6000W |
| Compressor Power | 4410W |
| Cooling Power | 13944W |
| Circulating Pump Power | 250W |
| Power Consumption | 10700W |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 680×750×1120 mm |
| Weight | 140 Kg |
Features
Enclosed compressor
Liquid level display
Digital control panel
Precooling function
Bath fluid ports
Ventilation window
Mobility casters
Applications
Thermal Circulator LMTMC-A111 is ideal for thermal control in reactors, semiconductors, bio-fermentation tanks, peptide production, pilot processing lines, UV cooling systems, extraction units, calorimeters, and temperature-sensitive pharmaceutical or food systems.
