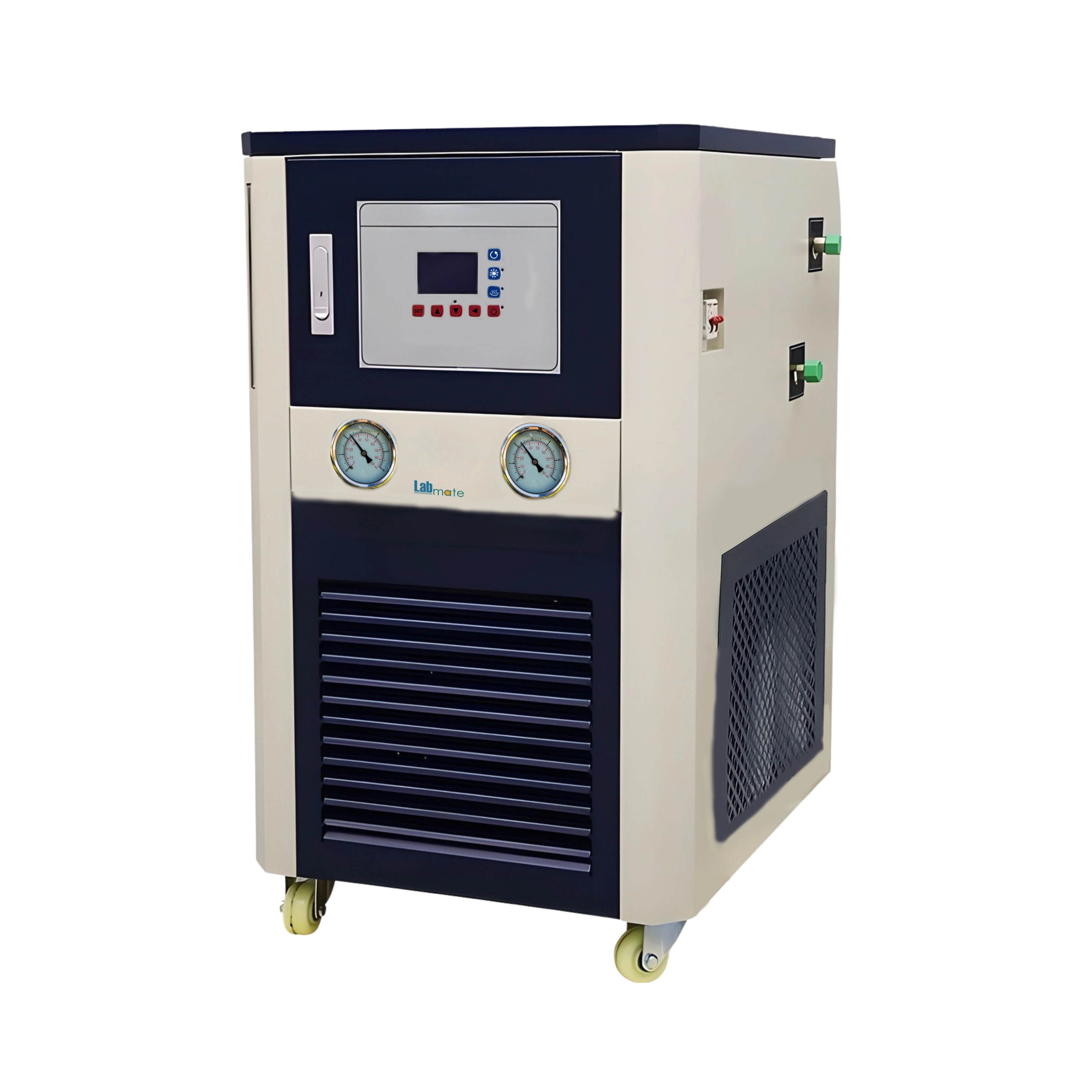

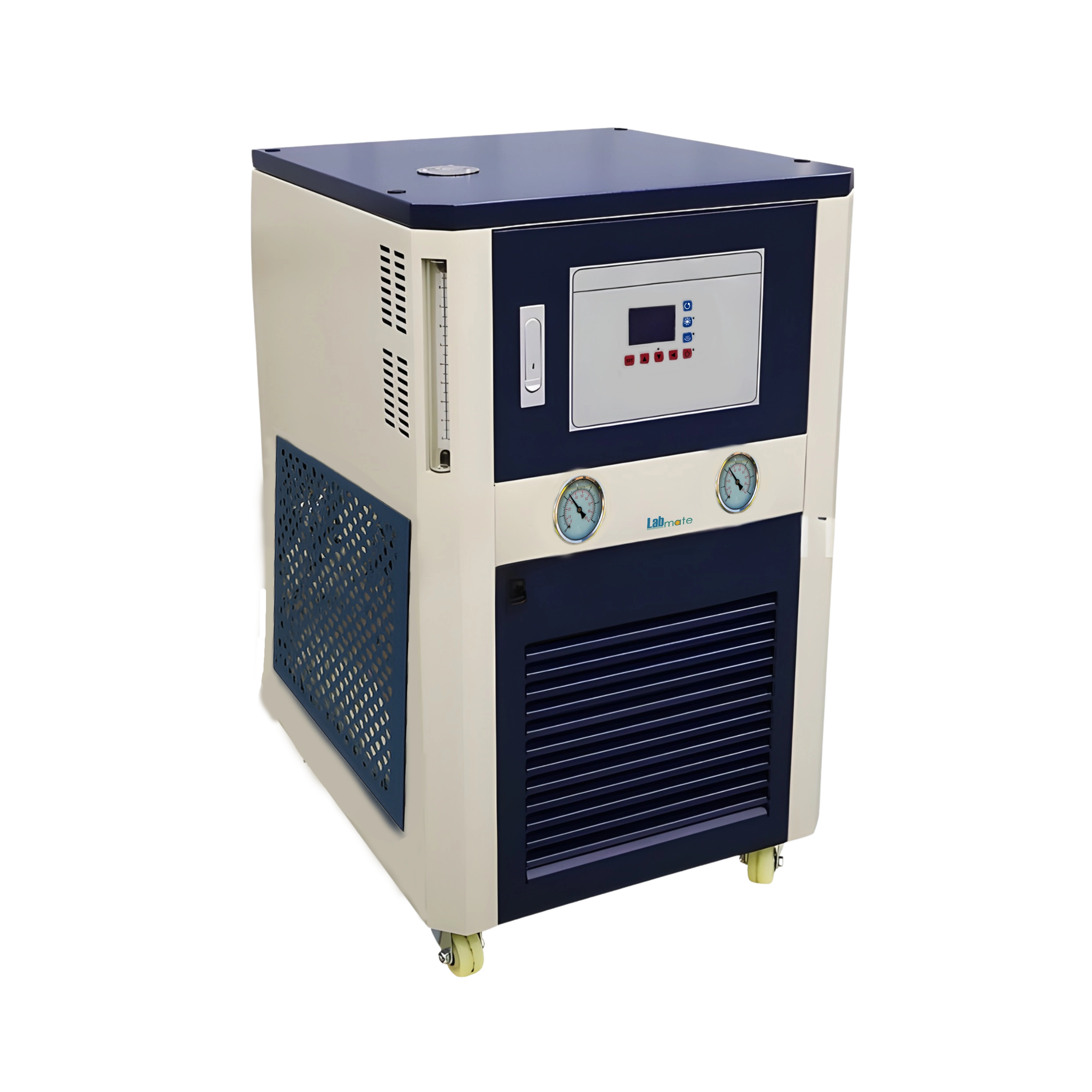

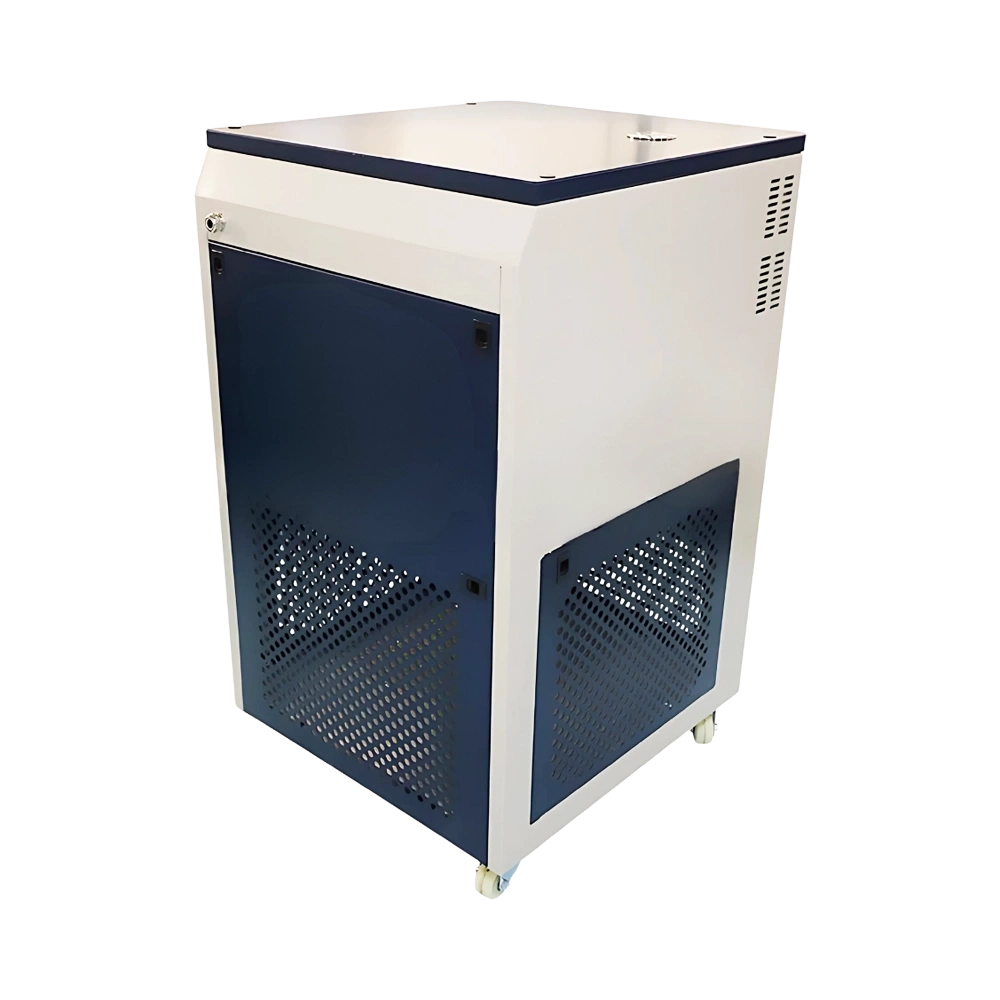

Thermal Circulator LMTMC-A101 is designed to offer 10 L capacity. It features brazed plate heat exchanger that enables compact structure and high efficiency. Equipped with combined precooling, refrigeration, and heating system, it ensures stable and flexible thermal output. Incorporates robust circulation that maintains consistent fluid flow across all connected external devices. Our Circulator is ideal for heat control for reactors and semiconductors.
Specifications
| Volume | 10 L |
| Working Temperature Range | -30 to 200℃ |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 1103W |
| Cooling Power | 3486W |
| Circulating Pump Power | 100W |
| Power Consumption | 4570W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 600×640×890 mm |
| Weight | 105 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Circulator LMTMC-A101 | $ 4475 | Each of 1 |
Features
Pressure gauge
Caster wheel
Low noise
Liquid level display
Leakage proof
Overcurrent protection
Applications
Thermal Circulator LMTMC-A101 cools UV and semiconductor devices, supports bioreactors, fermentation, and pilot production of peptides, beverages, oral liquids, and dairy products.
