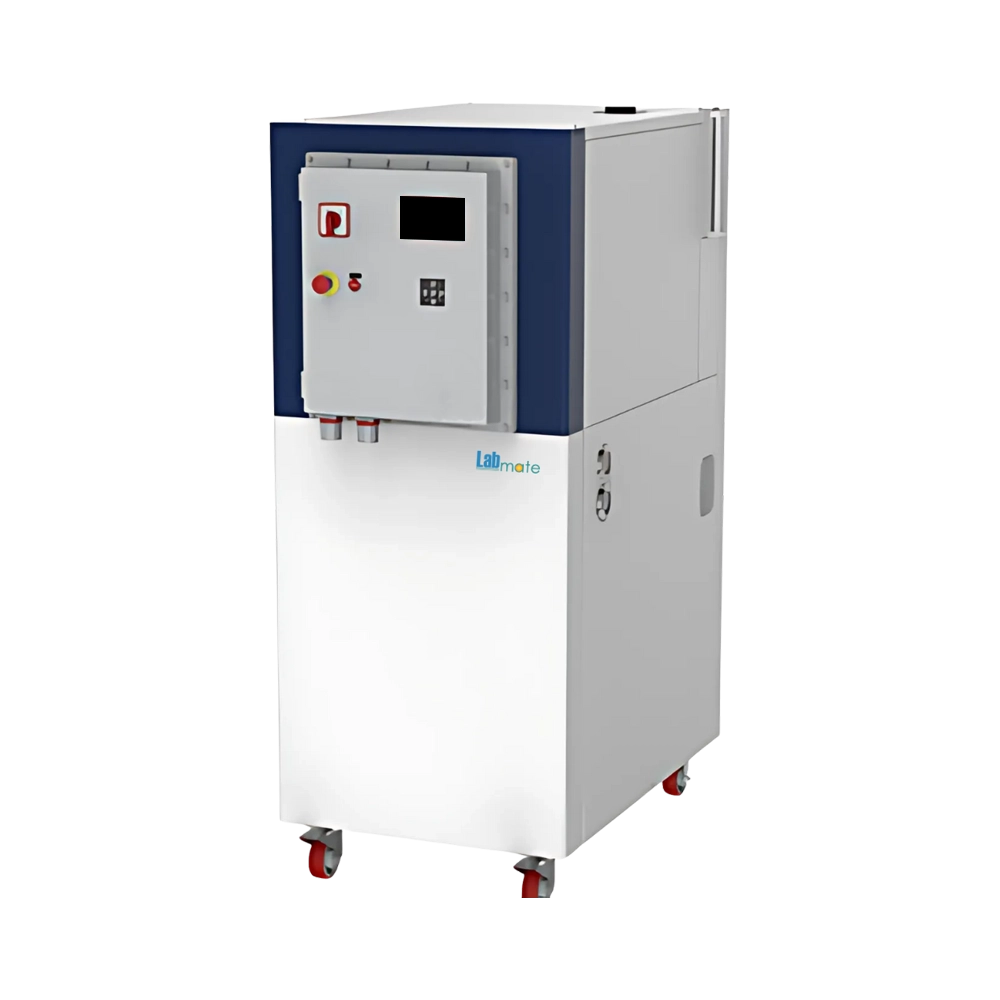

Explosion-Proof Refrigerated and Heating Circulator LMERH-A111 has 45 L/min flow rate. It features color touchscreen that displays temperature curves, system status, and performance trends. Equipped with slope control functionality for gradual thermal transitions during testing or simulation. Incorporates smooth-rolling casters for easy movement and flexible positioning across lab or industrial spaces. Our Circulator ensures heating and cooling in reactors, semiconductors, and processing systems.
Specifications
| Working Temperature Range | -40 to 200℃ |
| Fluid Filling Volume | 18L |
| Flow Rate | 45L/min |
| Pressure | 1.4bar |
| Cooling Method | Water cooling |
| Cooling Water Temperature | 10 to 33℃ |
| Cooling Water Flow Rate | 4m3/h |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Cooling Water Interface Size | R2 3/4 |
| Outer Circulation Interface Size | R2 3/4 |
| Cooling Capacity | -200℃-12kW, 100℃-8.8kW, 25℃-5.8kW, -10℃-4.5kW, -20℃-3.5kW, -30℃-2kW, -40℃-1.1kW |
| Heating Power | 12kW |
| Power Consumption | 18kW |
| Power Supply | 380V/50Hz |
| Dimensions | 755×1300×1795 mm |
| Net Weight | 460 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Refrigerated and Heating Circulator LMERH-A111 | $ 37625 | Each of 1 |
Features
Sealed fluid circuit
Overheat protection
Leak prevention
Programmable controls
Smart temperature modes
Compact safety system
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A111 is employed for external heating and cooling in reactors, pilot lines, fermentation systems, thermal platforms, UV units, and biological processes.
