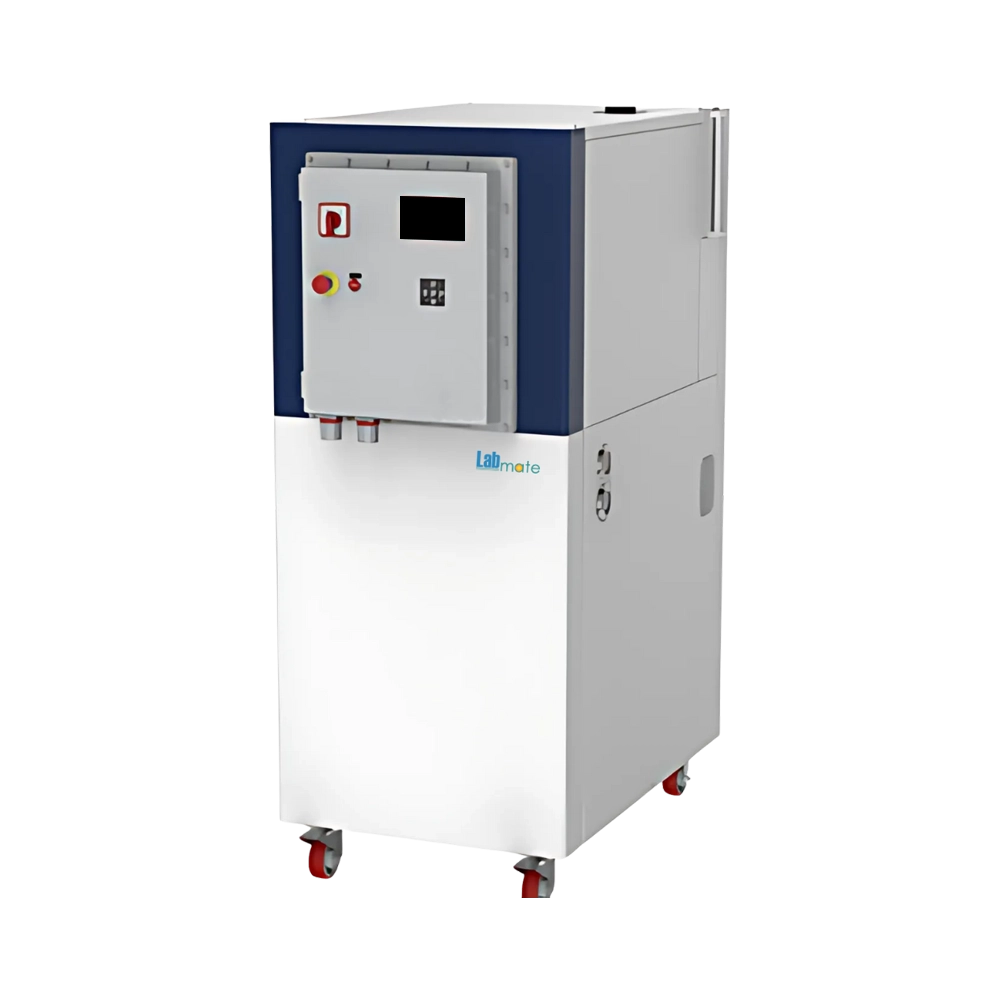

Explosion-Proof Refrigerated and Heating Circulator LMERH-A103 offers 7-liters of fluid volume. It features multiple temperature control options, including fixed, ramp, and program-based adjustments. Equipped with an emergency stop and reset switches for quick shutdown during fault or maintenance. Incorporates explosion-proof electrical panel with certified components for hazardous environments. Our Circulator is ideal for external heating and cooling.
Specifications
| Working Temperature Range | -40 to 200℃ |
| Fluid Filling Volume | 7L |
| Flow Rate | 25L/min |
| Pressure | 1.4bar |
| Cooling Method | Water cooling |
| Cooling Water Temperature | 10 to 33℃ |
| Cooling Water Flow Rate | 1.5 m³/h |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Cooling Water Interface Size | R₂¾ |
| Outer Circulation Interface Size | R₂¾ |
| Cooling Capacity | -200℃-3kW, 100℃-3kW, 25℃-2.4kW, -10℃-1.4kW, -20℃-1.2kW, -30℃-0.85kW, -40℃- 0.25kW |
| Heating Power | 3kW |
| Power Consumption | 4.6kW |
| Power Supply | 380V/50Hz |
| Dimensions | 655×1000×1480 mm |
| Net Weight | 270 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Refrigerated and Heating Circulator LMERH-A103 | $ 23800 | Each of 1 |
Features
Compact safety system
Leak prevention
Data port access
USB connectivity
Gradual temp shift
Mobility casters
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A103 delivers temperature control for reactors, semiconductor tools, vacuum systems, material testing, and thermal simulations in pharmaceutical, chemical, energy, and advanced material sectors.
