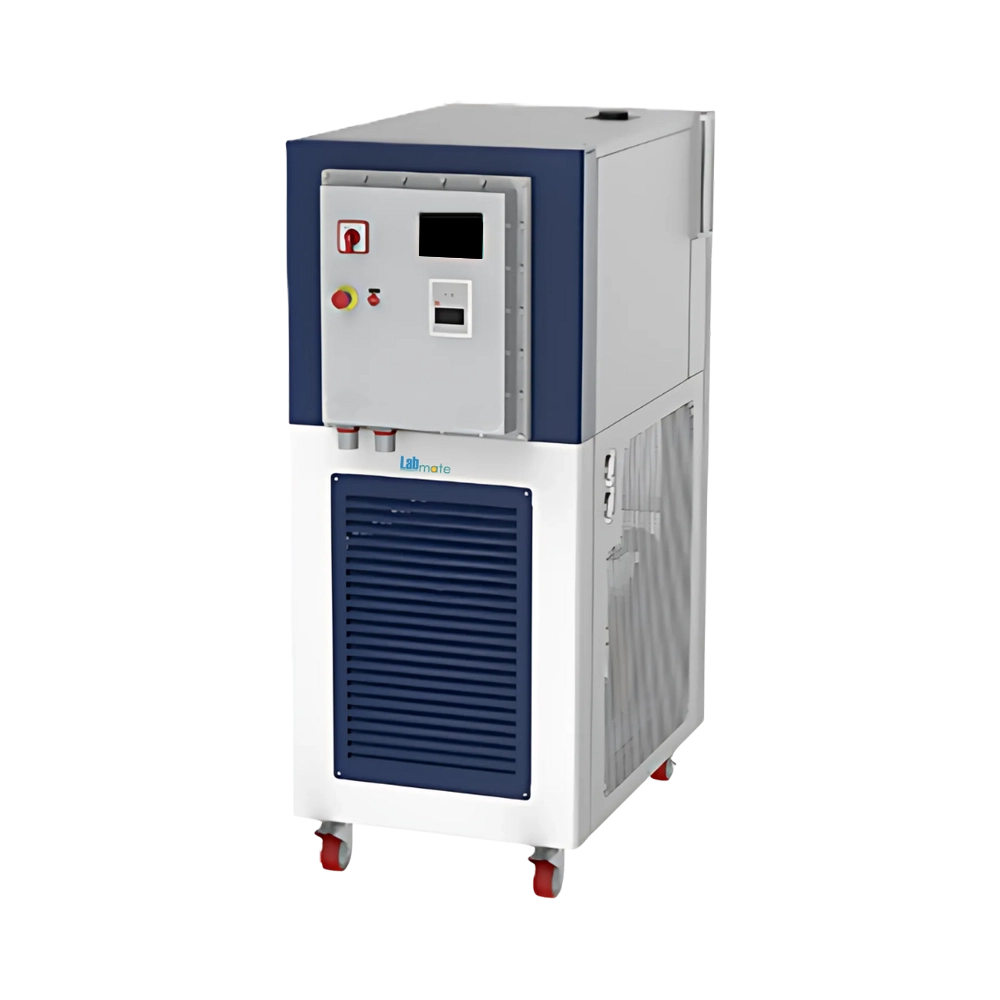

Explosion-Proof Refrigerated and Heating Circulator LMERH-A102 is designed with -40 to 200℃ of temperature. It offers multi-layer safety features such as overheat, pressure, leakage, overload, and electrical fault protection. Equipped with slope control functionality, it ensures gradual temperature transitions during testing or simulation. Incorporates industrial-grade swivel casters for effortless movement and flexible placement. Our Circulator is ideal for thermal management in reactors, semiconductors, and test environments.
Specifications
| Working Temperature Range | -40 to 200℃ |
| Fluid Filling Volume | 7L |
| Flow Rate | 25L/min |
| Pressure | 1.4bar |
| Cooling Method | Air cooling |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Outer Circulation Interface Size | R₂¾ |
| Cooling Capacity | -200℃-3kW, 100℃-3kW, 25℃-2.4kW, -10℃-1.4kW, -20℃-1.2kW, -30℃-0.85kW, -40℃- 0.25kW |
| Heating Power | 3kW |
| Power Consumption | 5.7kW |
| Dimensions | 655×1000×1480 mm |
| Net Weight | 270 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Refrigerated and Heating Circulator LMERH-A102 | $ 20400 | Each of 1 |
Features
Sealed fluid circuit
Real-time monitoring
Data port access
Temperature curve display
Triple control modes
Programmable controls
Ventilation
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A102 is ideal for temperature control in reactors, semiconductor tools, vacuum systems, material testing, and thermal simulations across pharmaceutical, chemical, energy, and advanced material industries.
