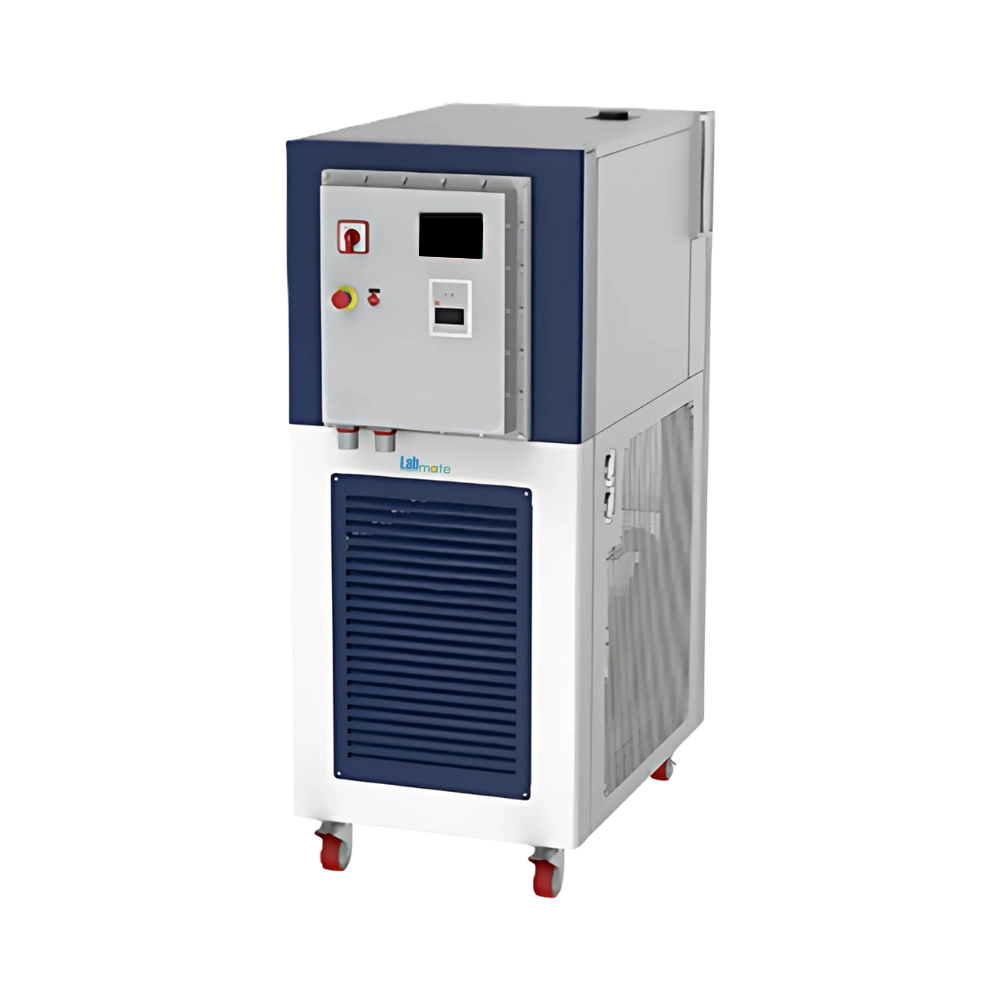

Explosion-Proof Refrigerated and Heating Circulator LMERH-A104 provides temperature of -30 to 200℃. It features secure, lockable control box to protect critical components from environmental exposure or tampering. Equipped with fully enclosed fluid loop, it minimizes fluid loss and extends service reliability. Incorporates wide ventilation grille for internal airflow and thermal component cooling. Our Circulator is ideal for external heating and cooling of equipment.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Fluid Filling Volume | 11L |
| Flow Rate | 30L/min |
| Pressure | 1.4bar |
| Cooling Method | Air cooling |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Outer Circulation Interface Size | R₂¾ |
| Cooling Capacity | -200℃-6kW, 100℃-5kW, 25℃-3kW, -10℃-1.7kW, -20℃-1.2kW, -30℃-0.6kW |
| Heating Power | 6kW |
| Power Consumption | 9.4kW |
| Power Supply | 380V/50Hz |
| Dimensions | 655×1193×1680 mm |
| Net Weight | 370 Kg |
Features
Programmable controls
Overheat protection
Leak prevention
Overload safety
Data port access
USB connectivity
Gradual temperature shift
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A104 is applied for external cooling and heating for reactors, semiconductor tools, vacuum systems, material testing, and thermal simulations in chemical, energy, and pharmaceutical settings.
