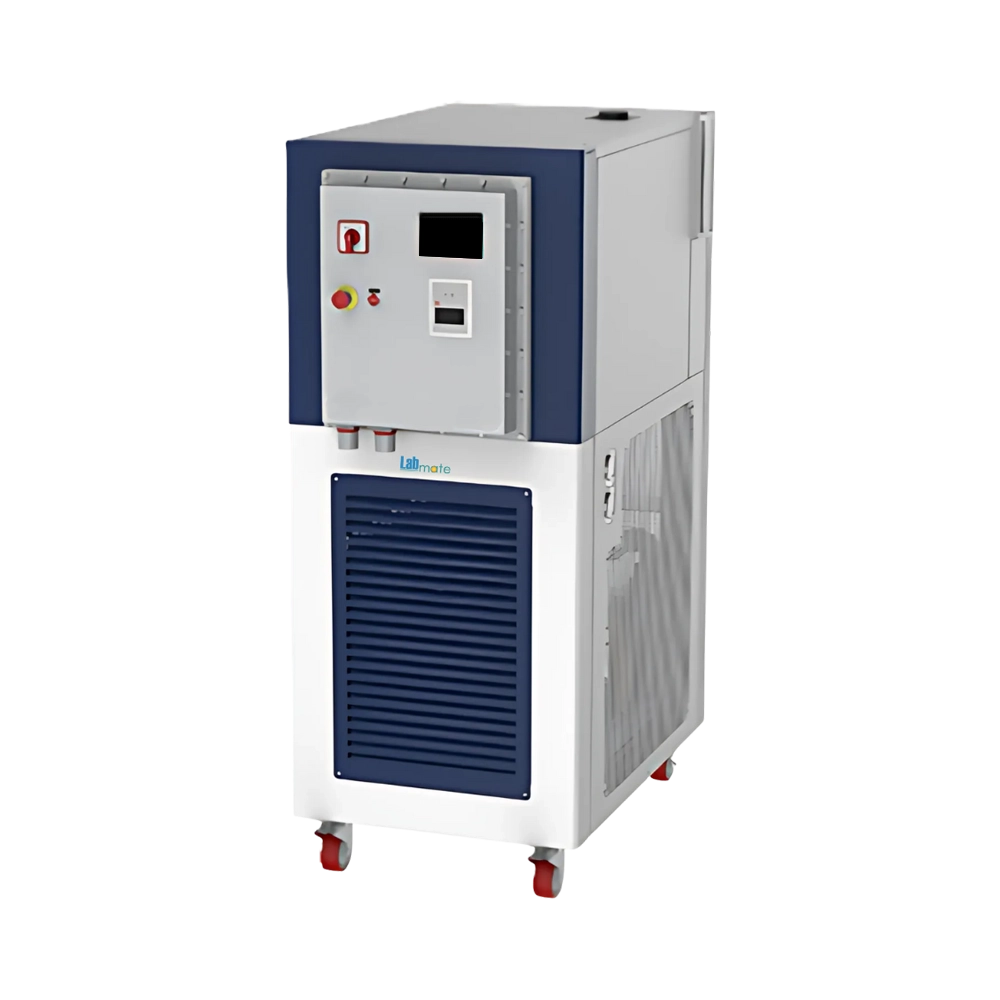

Explosion-Proof Refrigerated and Heating Circulator LMERH-A100 is designed with -30 to 200℃ temperature range. It features sealed circulation that helps extend fluid life and keeps system clean. Equipped with USB and RS485 ports for easy connection and data collection. Incorporates explosion-proof parts like pump, heater, and control box to safely handle risky environments. Our Circulator provides temperature source for various industrial processes and research.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Fluid Filling Volume | 7L |
| Flow Rate | 25L/min |
| Pressure | 1.4bar |
| Cooling Method | Air cooling |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Outer Circulation Interface Size | R₂¾ |
| Cooling Capacity | -200℃-3kW, 100℃-2.4kW, 25℃-1.2kW, -10℃-0.8kW, -20℃-0.6kW, -30℃-0.36kW |
| Heating Power | 3kW |
| Power Consumption | 5kW |
| Dimensions | 655×1000×1380 mm |
| Net Weight | 260 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Refrigerated and Heating Circulator LMERH-A100 | $ 16337.5 | Each of 1 |
Features
Real-time monitoring
Overheat protection
Overload safety
Color touchscreen
Gradual temp shift
Programmable controls
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A100 ensures efficient thermal regulation for reactors, semiconductors, fermentation tanks, pilot production lines, extraction units, and various pharmaceutical, biological, food, and chemical processing equipment.
