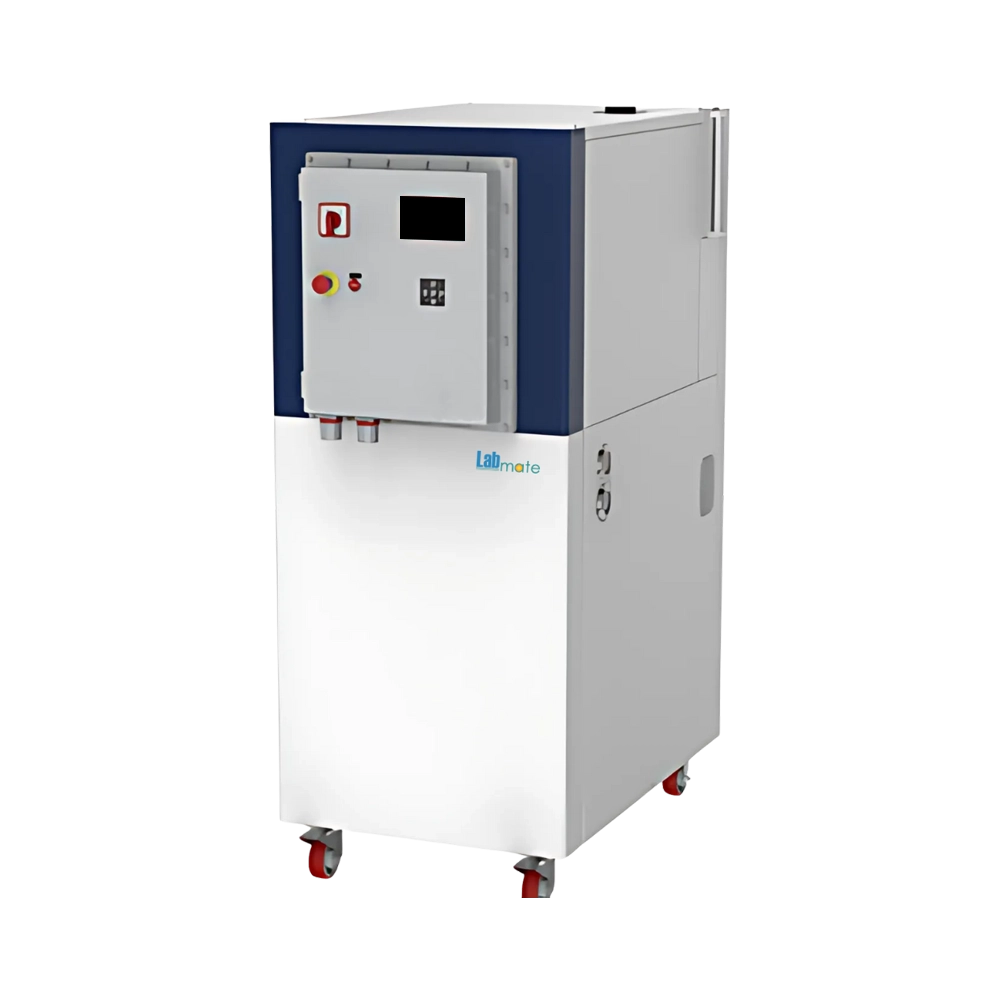

Explosion-Proof Refrigerated and Heating Circulator LMERH-A109 has maximum flow rate of 45 L/min. It features emergency stop and reset switches for quick shutdown during fault or maintenance. Equipped with industrial-grade swivel casters for effortless movement and flexible placement. Incorporates built-in safety for high temperature, high pressure, leaks, and system overloads. Our Circulator is ideal for heating and cooling reactors, semiconductors, and testing systems.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Fluid Filling Volume | 18L |
| Flow Rate | 45L/min |
| Pressure | 1.4bar |
| Cooling Method | Water cooling |
| Cooling Water Temperature | 10 to 33℃ |
| Cooling Water Flow Rate | 4m3/h |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Cooling Water Interface Size | R2 3/4 |
| Outer Circulation Interface Size | R2 3/4 |
| Cooling Capacity | -200℃-12kW, 100℃-8.5kW, 25℃-6kW, -10℃-4.7kW, -20℃-3.2kW, -30℃-2kW |
| Heating Power | 12kW |
| Power Consumption | 18.8kW |
| Power Supply | 380V/50Hz |
| Dimensions | 755×1300×1795 mm |
| Net Weight | 450 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Refrigerated and Heating Circulator LMERH-A109 | $ 33162.5 | Each of 1 |
Features
Sealed Fluid Circuit
Data Port Access
Gradual Temperature Shift
Triple Control Modes
Leak Prevention
Overload Safety
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A109 is applied for external heating and cooling in reactors, pilot production lines, fermentation tanks, thermal testing platforms, UV devices, and biological processing units.
