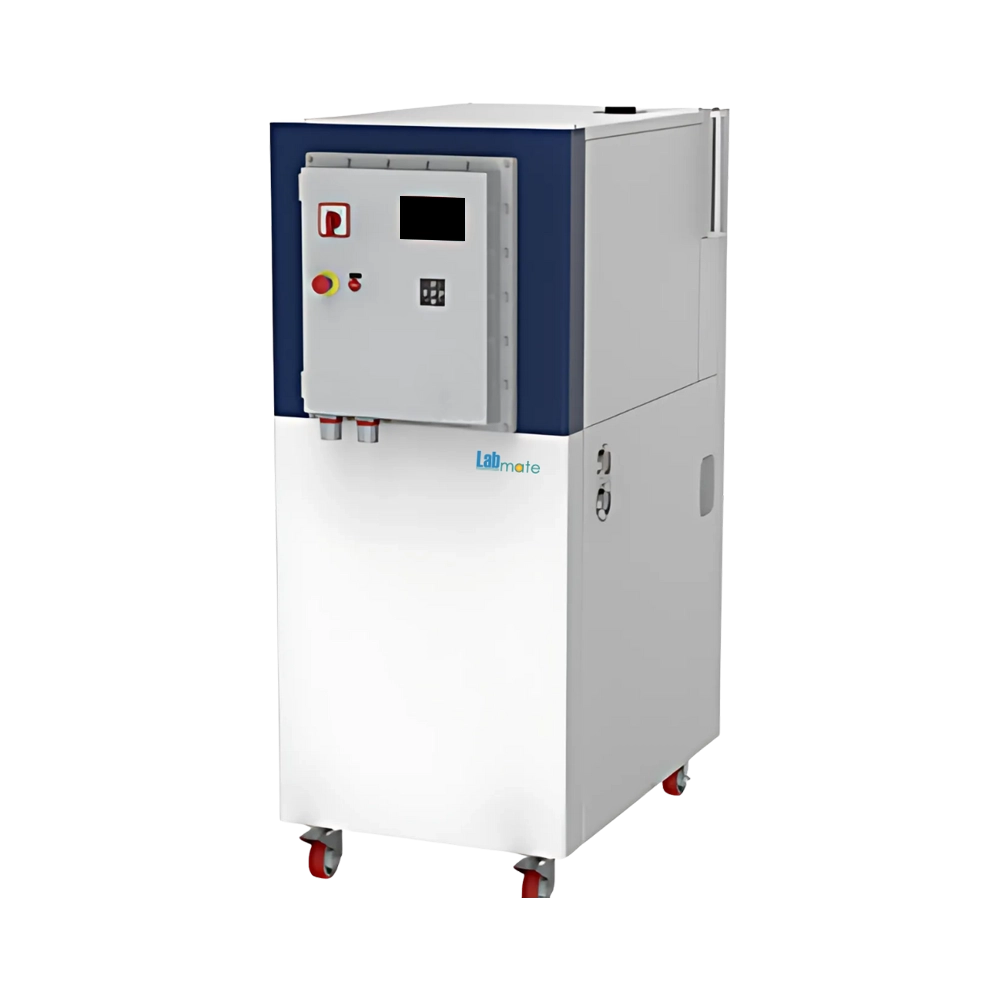

Explosion-Proof Refrigerated and Heating Circulator LMERH-A101 has fluid flow rate of 25 L/min. It features real-time fluid level checking to avoid running dry and keep everything working smoothly. Equipped with large color screen that shows temperature changes and important system details clearly. Incorporates built-in safety for high pressure, leaks, and overloads. Our Circulator ensures heating and cooling for reactors and chemical or material processes.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Fluid Filling Volume | 7L |
| Flow Rate | 25L/min |
| Pressure | 1.4bar |
| Cooling Method | Water cooling |
| Cooling Water Temperature | 10 to 33℃ |
| Cooling Water Flow Rate | 1.0 m³/h |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Cooling Water Interface Size | R₂½ |
| Outer Circulation Interface Size | R₂¾ |
| Cooling Capacity | -200℃-3kW, 100℃-2.4kW, 25℃-1.2kW, -10℃-0.8kW, -20℃-0.6kW, -30℃-0.36kW |
| Heating Power | 3kW |
| Power Consumption | 4.9kW |
| Power Supply | 380V/50Hz |
| Dimensions | 655×1000×1380 mm |
| Net Weight | 260 Kg |
Features
Overheat protection
Leak prevention
Delayed start guard
Data port access
Gradual temp shift
Casters
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A101 enables stable thermal management for reactors, semiconductor devices, fermentation systems, pilot lines, extraction units, and diverse setups in pharmaceutical, biological, food, and chemical sectors.
