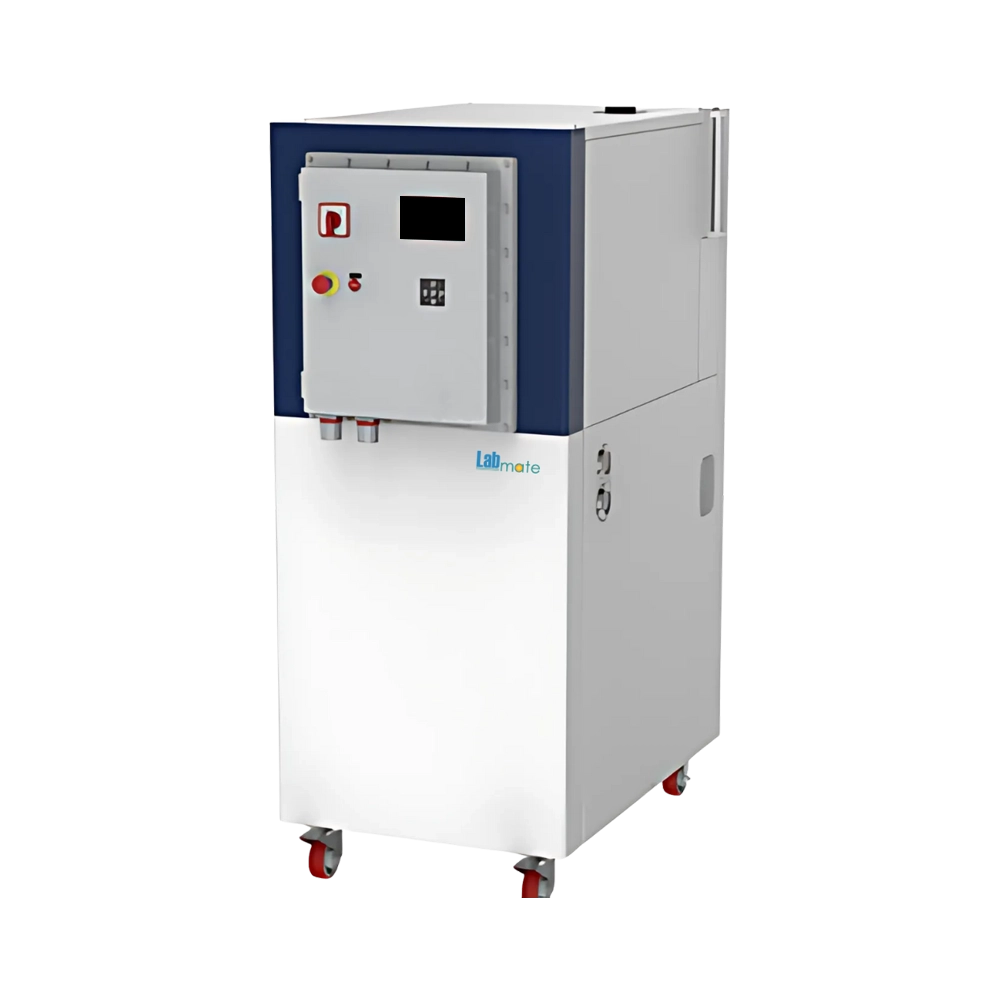

Explosion-Proof Refrigerated and Heating Circulator LMERH-A107 boasts volume of 11 liters. It features fully enclosed circulation system that extends thermal fluid lifespan and reduces contamination risks. Equipped with color touchscreen, it displays temperature curves, system status, and performance trends. It incorporates an explosion-proof electrical panel with certified components for hazardous environments. Our Circulator provides external cold and heat sources.
Specifications
| Working Temperature Range | -40 to 200℃ |
| Fluid Filling Volume | 11L |
| Flow Rate | 30L/min |
| Pressure | 1.4bar |
| Cooling Method | Water cooling |
| Cooling Water Temperature | 10 to 33℃ |
| Cooling Water Flow Rate | 3 m³/h |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Cooling Water Interface Size | R₂¾ |
| Outer Circulation Interface Size | R₂¾ |
| Cooling Capacity | -200℃-6kW, 100℃-4kW, 25℃-4.5kW, -10℃-4.2kW, -20℃-3.2kW, -30℃-2kW, -40℃-1.1kW |
| Heating Power | 6kW |
| Power Consumption | 10.9kW |
| Power Supply | 380V/50Hz |
| Dimensions | 755×1300×1795 mm |
| Net Weight | 430 Kg |
Features
Overheat protection
Leak prevention
Overload safety
USB connectivity
Triple control modes
Casters
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A107 provides external cold and heat sources for temperature control in reactors, semiconductors, pilot production lines, fermentation tanks, extraction units, and UV devices.
