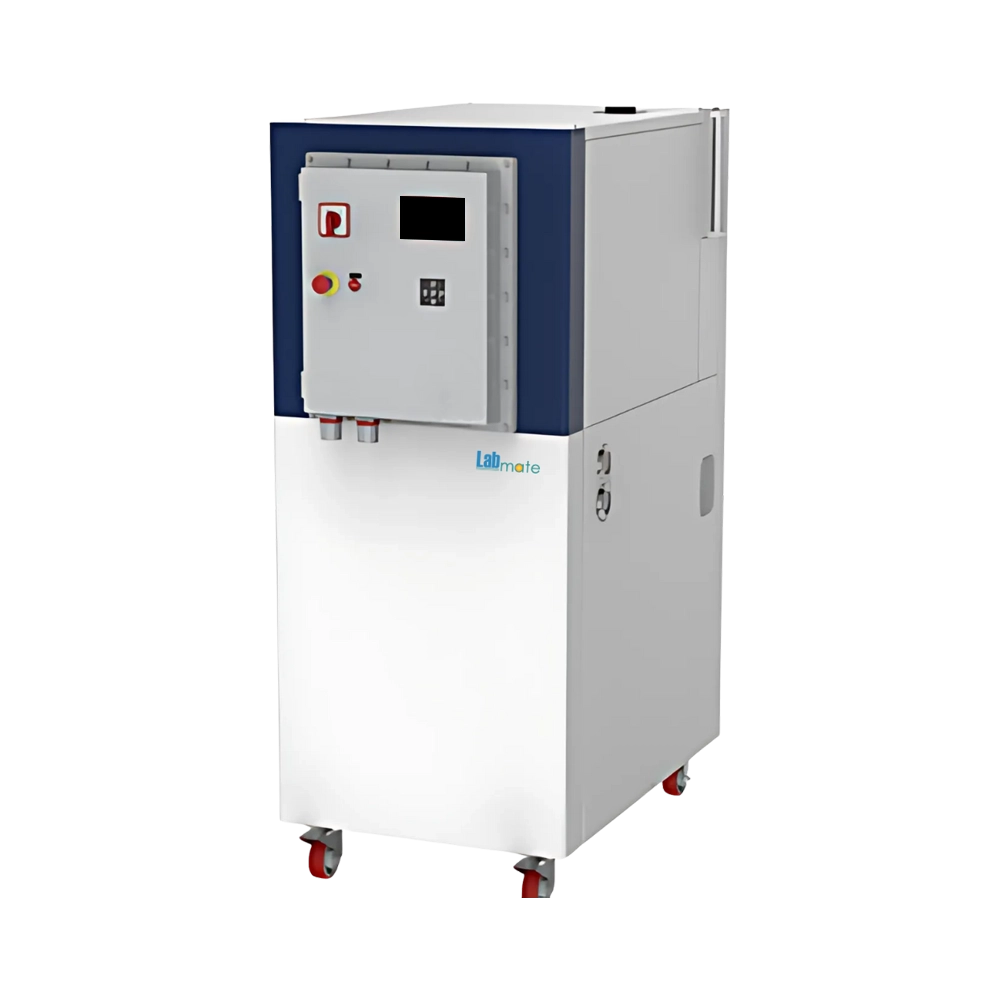

Explosion-Proof Refrigerated and Heating Circulator LMERH-A105 has flow rate of 30 L/min. It features real-time liquid level monitoring that ensures continuous process and prevents fluid shortage damage. Equipped with fixed value, slope, and programmable controls to meet various heating or cooling curve needs. Incorporates compressor delay start, overcurrent, and phase sequence protection to ensure long-term stable operation. Our Circulator enables reliable thermal control.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Fluid Filling Volume | 11L |
| Flow Rate | 30L/min |
| Pressure | 1.4bar |
| Cooling Method | Water cooling |
| Cooling Water Temperature | 10 to 33℃ |
| Cooling Water Flow Rate | 2 m³/h |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Cooling Water Interface Size | R₂¾ |
| Outer Circulation Interface Size | R₂¾ |
| Cooling Capacity | -200℃-6kW, 100℃-5kW, 25℃-3kW, -10℃-1.7kW, -20℃-1.2kW, -30℃-0.6kW |
| Heating Power | 6kW |
| Power Consumption | 9.1kW |
| Power Supply | 380V/50Hz |
| Dimensions | 655×1193×1680 mm |
| Net Weight | 370 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Refrigerated and Heating Circulator LMERH-A105 | $ 23800 | Each of 1 |
Features
Gradual temperature shift
Compact safety system
Overheat protection
Leak prevention
Data port access
USB connectivity
Color touchscreen
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A105 enables external cooling and heating for reactors, semiconductor tools, vacuum systems, and thermal processes in chemical, energy, and pharmaceutical settings.
