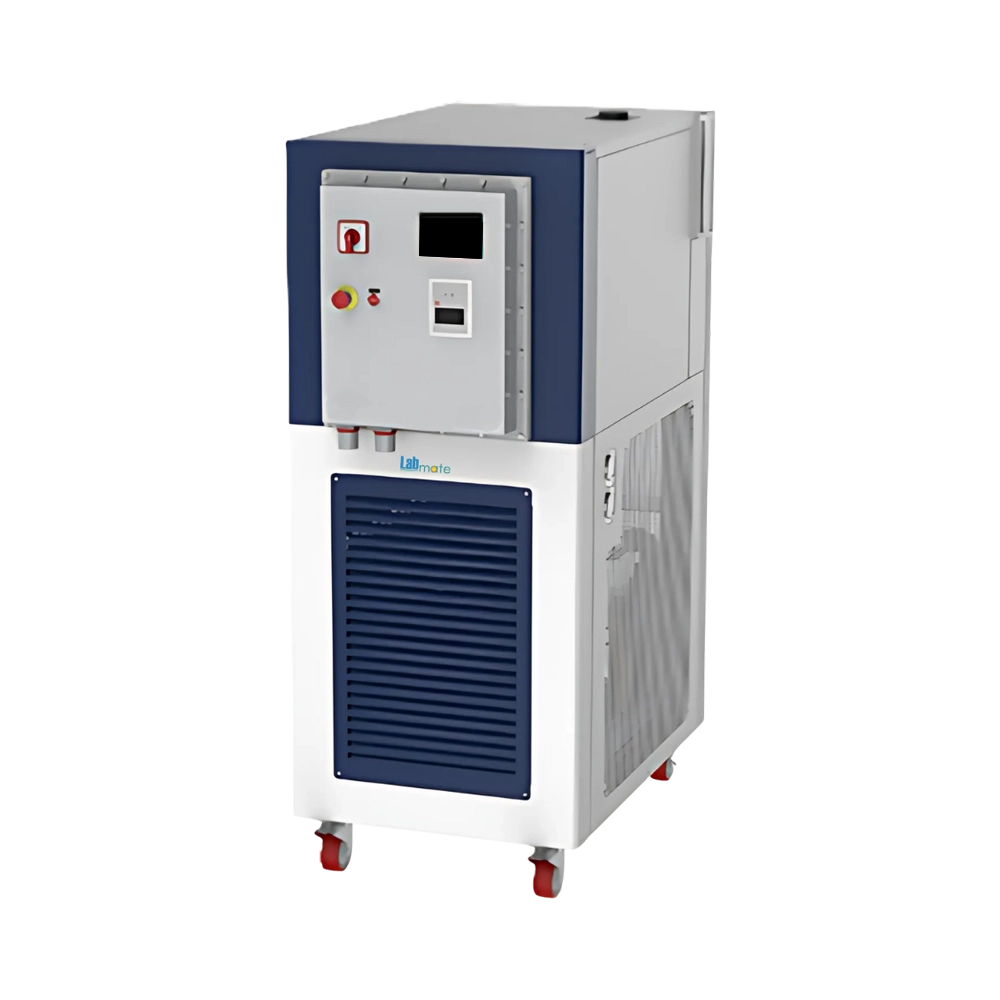

Explosion-Proof Refrigerated and Heating Circulator LMERH-A108 offers temperature of -30 to 200℃. It features protections for delayed startup, excess current, and power phase issues to avoid system damage. Equipped with USB and RS485 ports, it allows easy control, connection, and data collection. Incorporates wide ventilation grille that supports internal airflow and thermal component cooling. Our Circulator provides external cold and heat sources for equipment.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Fluid Filling Volume | 18L |
| Flow Rate | 45L/min |
| Pressure | 1.4bar |
| Cooling Method | Air cooling |
| Fluid Viscosity | 30 mm²/s |
| Refrigerant | R404A |
| Display | 7-inch LCD screen |
| Date And Communication Interface | USB, RS485, Pt100 |
| Noise | 65dB(A) |
| Protection Grade | IP20 |
| Ambient Temperature | 5 to 35℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Display Resolution | 0.01 |
| Outer Circulation Interface Size | R2 3/4 |
| Cooling Capacity | -200℃-12kW, 100℃-8.5kW, 25℃-6kW, -10℃-4.7kW, -20℃-3.2kW, -30℃-2kW |
| Heating Power | 12kW |
| Power Consumption | 19kW |
| Power Supply | 380V/50Hz |
| Dimensions | 755×1300×1795 mm |
| Net Weight | 450 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Refrigerated and Heating Circulator LMERH-A108 | $ 29612.5 | Each of 1 |
Features
Sealed fluid circuit
Programmable controls
Smart temperature modes
Compact safety system
Emergency stop
Applications
Explosion-Proof Refrigerated and Heating Circulator LMERH-A108 delivers external cold and heat sources in reactors, semiconductors, pilot production lines, fermentation tanks, extraction units, and thermal testing platforms across multiple industries.
