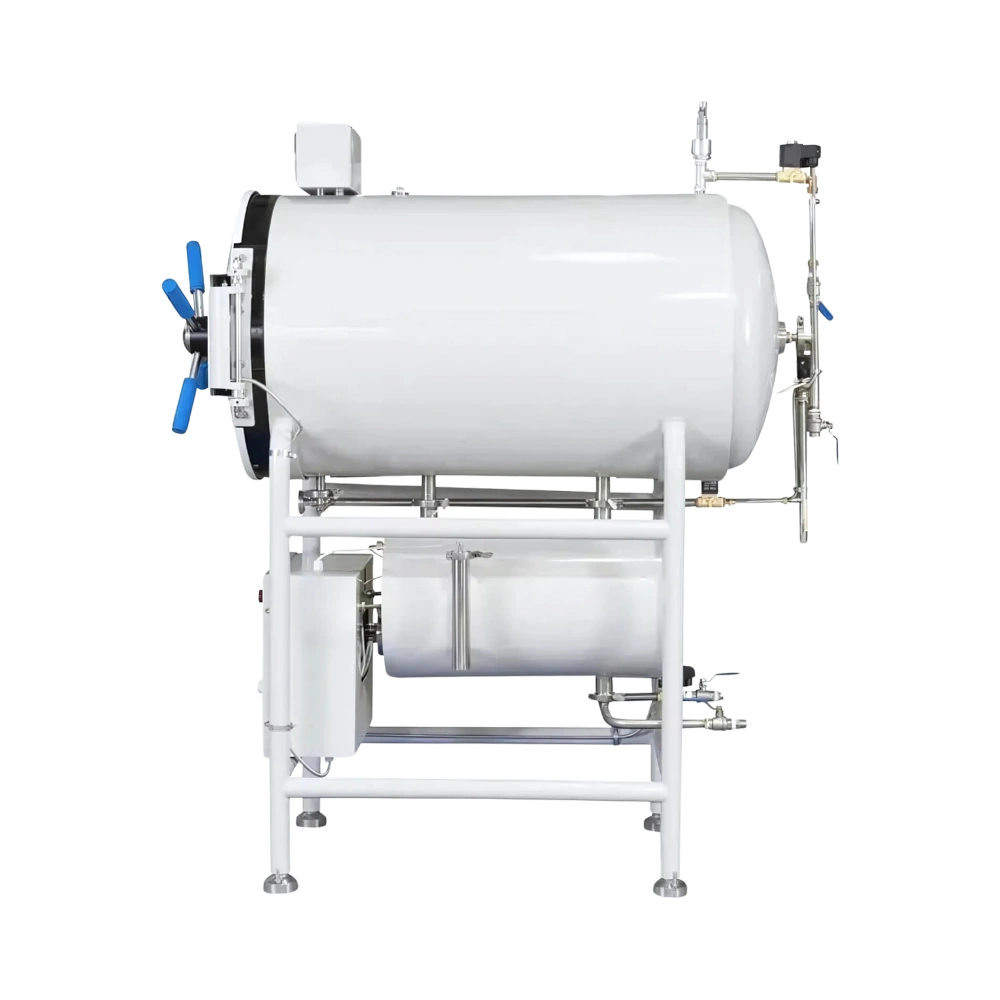

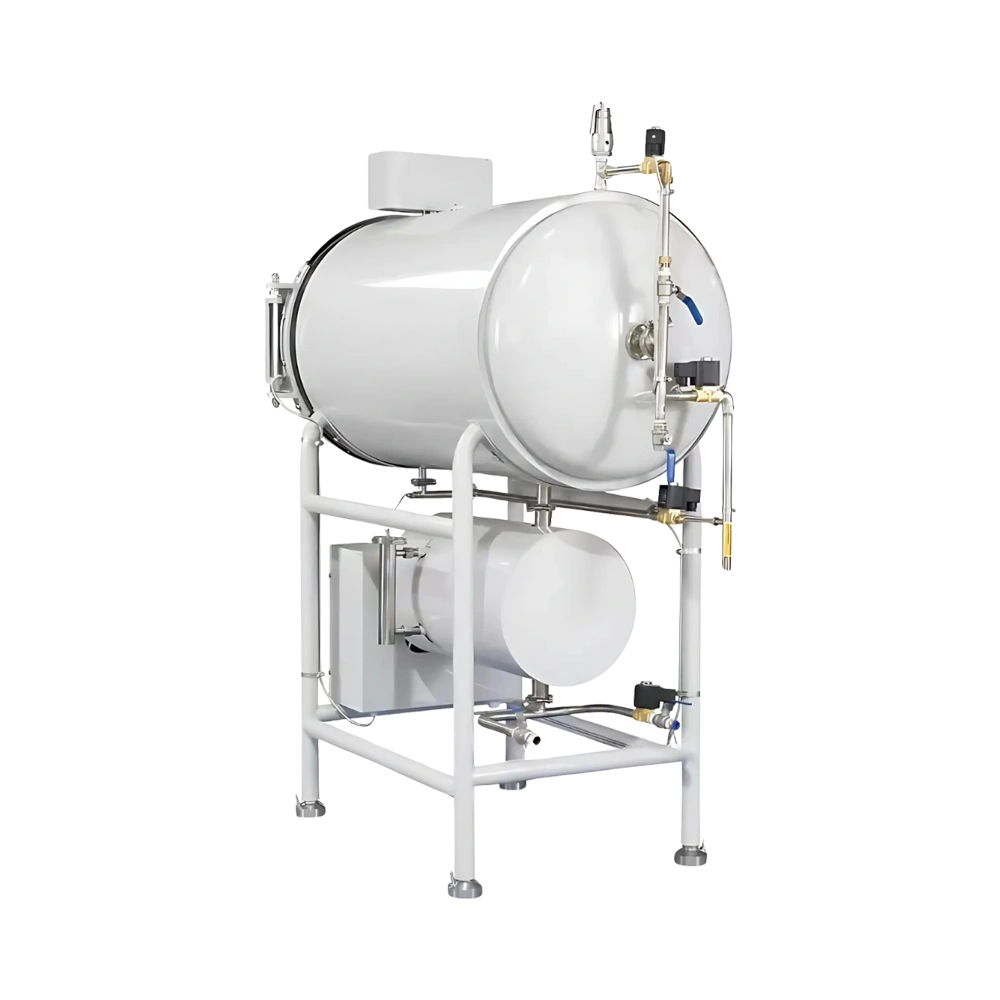

Horizontal Autoclave LMHA-A202

Horizontal Autoclave LMHA-A202 is designed with smart technology to offer the highest level of performance with constructional quality and robustness. Configured with an intelligent microprocessor control system with LED display for accurate temperature control and data logging. It features a capacity of 280 L that works within sterilization temperatures between 40 °C to 134 °C. Improved auto-drying function for a better working environment.

Catalog Send Mail Whatsapp

Specifications

Capacity 280 L
Temperature Range 134 °C
Pressure 0.22 MPa
Time Range 0 to 60 min
Drying Time 0 to 60 min
Chamber Size φ 600 x 1000 mm
Sterilizing Temperature 40 °C - 134 °C
Power 12 kW
Voltage 380 V ; 50 Hz
Heat Average ≤ ±2 °C
Dimension 1400 × 770 × 1780 mm
Net Weight 365 Kg
Gross Weight 465 Kg

Features

Simplified with an LED screen with eye-monitoring features for clear visualization of working parameters

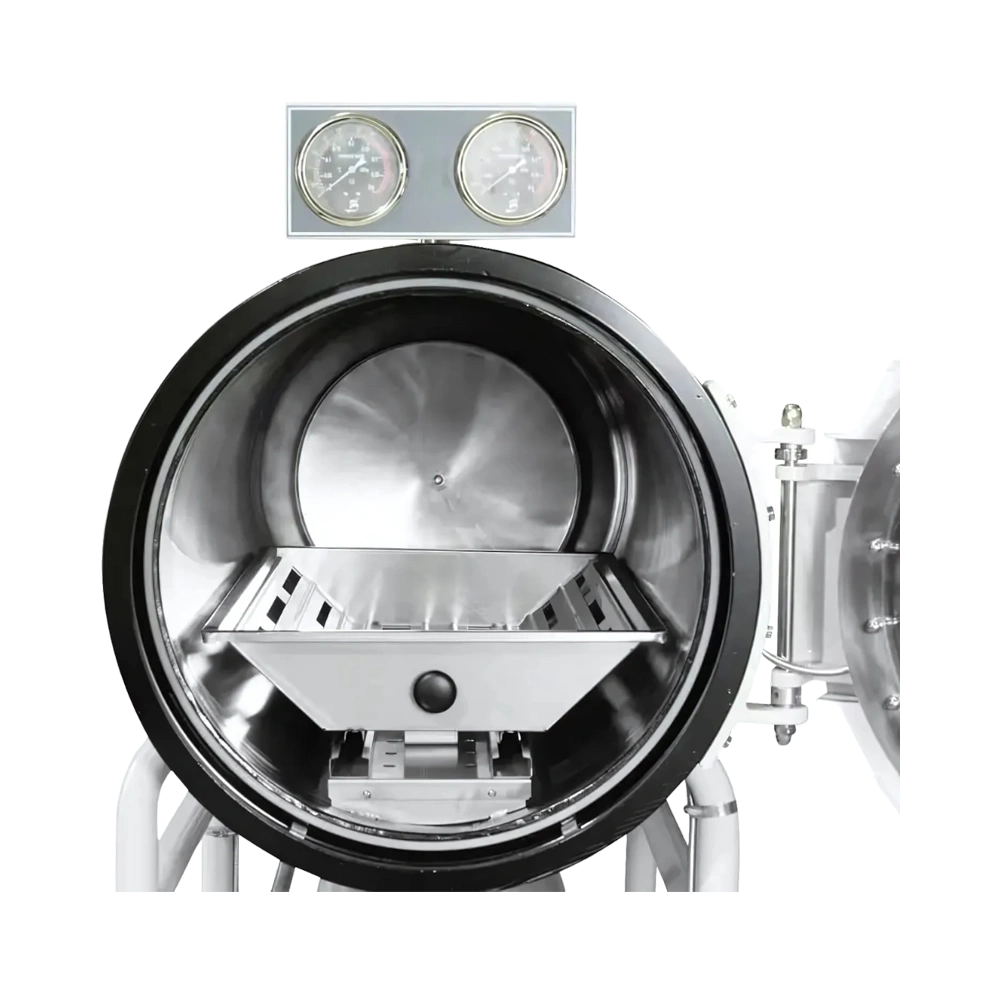

Constructed with a stainless-steel chamber that ensures safety and long-term usability
Integrated with interchangeable self-closing door with lock to prevent unauthorized access and ensure user security too
Equipped with audible and visual alarms that trigger alert sounds when the temperature fluctuates and overheating occurs
Self-diagnostic control systems include fully automatic function
Tool-free cleaning with convenient handling
Flexible and cost-effective maintenance with safety and sanitation

Applications

It is extensively used to sterilize surgical equipment, laboratory instruments, pharmaceutical items, and other materials.

Horizontal Autoclave LMHA-A202
Horizontal Autoclave LMHA-A202

Similar Products

Horizontal Autoclave LMHA-A502

  • Capacity: 280 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 - 99 min
  • Drying Time: 0 - 99 min

Horizontal Autoclave LMHA-A501

  • Capacity: 200 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 - 99 min
  • Drying Time: 0 - 99 min

Horizontal Autoclave LMHA-A200

  • Capacity: 150 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 to 60 min
  • Drying Time: 0 to 60 min
Horizontal Autoclave LMHA-A500
  • Capacity: 150 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 - 99 min
  • Drying Time: 0 - 99 min
Horizontal Autoclave LMHA-A403
  • Capacity: 400 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 to 60 min
  • Drying Time: 0 to 60 min

Horizontal Autoclave LMHA-A204

  • Capacity: 500 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 to 60 min
  • Drying Time: 0 to 60 min

Horizontal Autoclave LMHA-B100

  • Volume: 280 L
  • Temperature Range: 105°C to 135°C
  • Pre-Configured Programs: 9 (Sterilization) + 3 (Melting and Insulation Programs)
  • Power Consumption: 12.5 kW
  • Power Supply: 380 V, 50 Hz

Horizontal Autoclave LMHA-B102

  • Volume: 360 L
  • Temperature Range: 105°C to 135°C
  • Pre-Configured Programs: 9 (Sterilization) + 3 (Melting and Insulation Programs)
  • Power Consumption: 15.5 kW
  • Power Supply: 380 V, 50 Hz
Horizontal Autoclave LMHA-B101
  • Volume: 280 L
  • Temperature Range: 105°C to 135°C
  • Pre-Configured Programs: 9 (Sterilization) + 3 (Melting and Insulation Programs)
  • Power Consumption: 14.6 kW
  • Power Supply: 380 V, 50 Hz
Horizontal Autoclave LMHA-A102
  • Capacity: 300 L
  • Temperature Range: 50 °C to 134 °C
  • Pressure: 0.217 Mpa
  • Time Range: 0 to 99 hr
  • Power: 7.5 kW

Horizontal Autoclave LMHA-A302

  • Capacity: 280 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 to 90 min
  • Drying Time: 0 to 90 min

Horizontal Autoclave LMHA-A301

  • Capacity: 200 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 to 90 min
  • Drying Time: 0 to 90 min

Horizontal Autoclave LMHA-A402

  • Capacity: 280 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 to 60 min
  • Drying Time: 0 to 60 min
Horizontal Autoclave LMHA-B105
  • Volume: 500 L
  • Temperature Range: 105°C to 135°C
  • Pre-Configured Programs: 9 (Sterilization) + 3 (Melting and Insulation Programs)
  • Power Consumption: 19.1 kW
  • Power Supply: 380 V, 50 Hz
Horizontal Autoclave LMHA-A300
  • Capacity: 150 L
  • Temperature Range: 134 °C
  • Pressure: 0.22 MPa
  • Time Range: 0 to 90 min
  • Drying Time: 0 to 90 min

Frequently Asked Questions

1 What is a Horizontal Autoclave?

A Horizontal Autoclave is an apparatus designed to use high-pressure steam in a horizontally oriented chamber to sterilize equipment and materials.

2 How does a Horizontal Autoclave work?

It works by using high-pressure steam to heat and sterilize materials inside a sealed chamber.

3 Can Horizontal Autoclave be used for both solid and liquid sterilization?

It is versatile and can sterilize both solid items and liquids.

4 What materials can be sterilized in Horizontal Autoclave?

It can sterilize a variety of materials such as surgical instruments, glassware, laboratory tools, textiles, plastic containers, media for microbiological cultures and food products.

5 What is the difference between a Horizontal and a Vertical Autoclave?

A Horizontal Autoclave has a horizontally aligned chamber, making it easier to load and unload, whereas a Vertical Autoclave has a vertical chamber for smaller items.

6 What kind of maintenance does Horizontal Autoclave require?

Regular maintenance includes proper cleaning, checking of seals and valves, calibrating sensors, and inspecting for wear to ensure efficient and safe functioning.

7 Can Horizontal Autoclave be used in veterinary practices?

It can be used in veterinary practices.

8 Can Horizontal Autoclave be used for research involving pathogens?

It is critical for inactivating dangerous pathogens before disposal or reuse.

9 What is a sterilization hold time in Horizontal Autoclave?

It is the period during which the load is maintained at the sterilization temperature to ensure effective microbial kill.

10 Can Horizontal Autoclave be used to sterilize syringes and glass vials?

It is commonly used to sterilize empty syringes, glass vials and other containers before filling in pharmaceutical environments.
