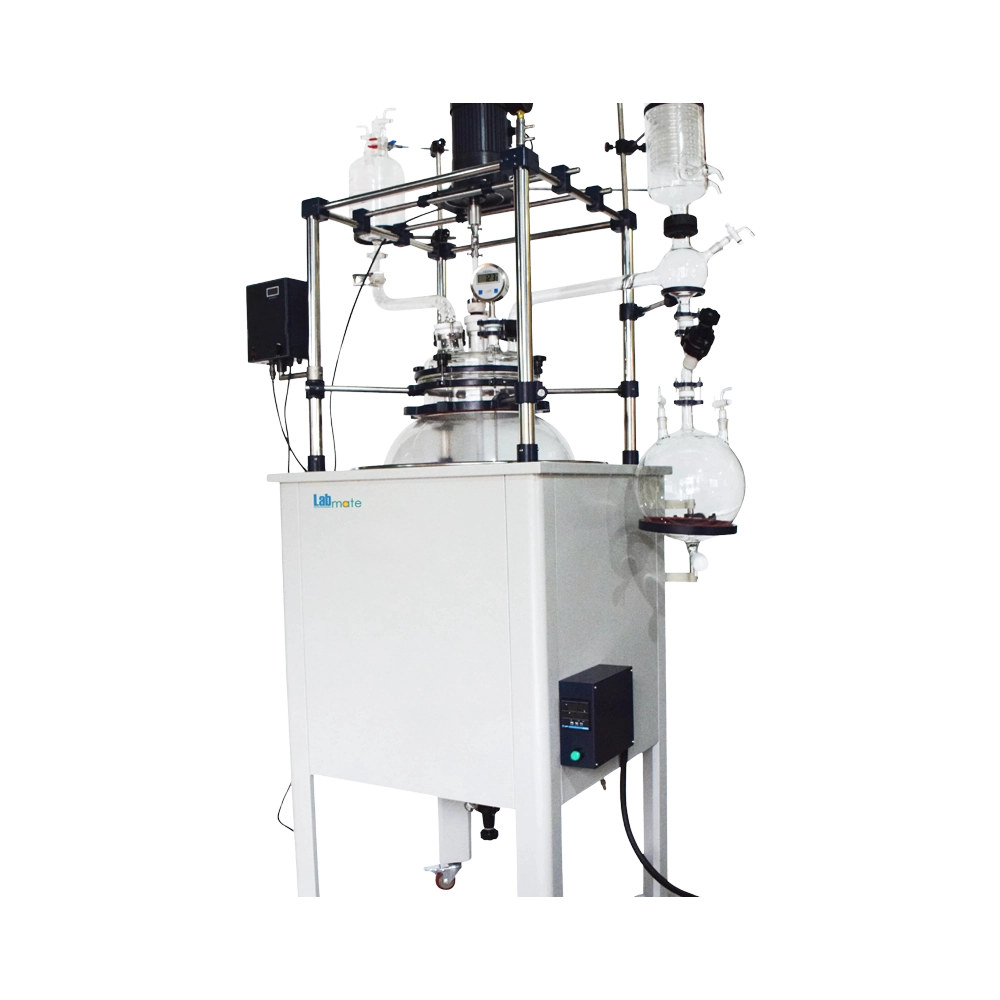

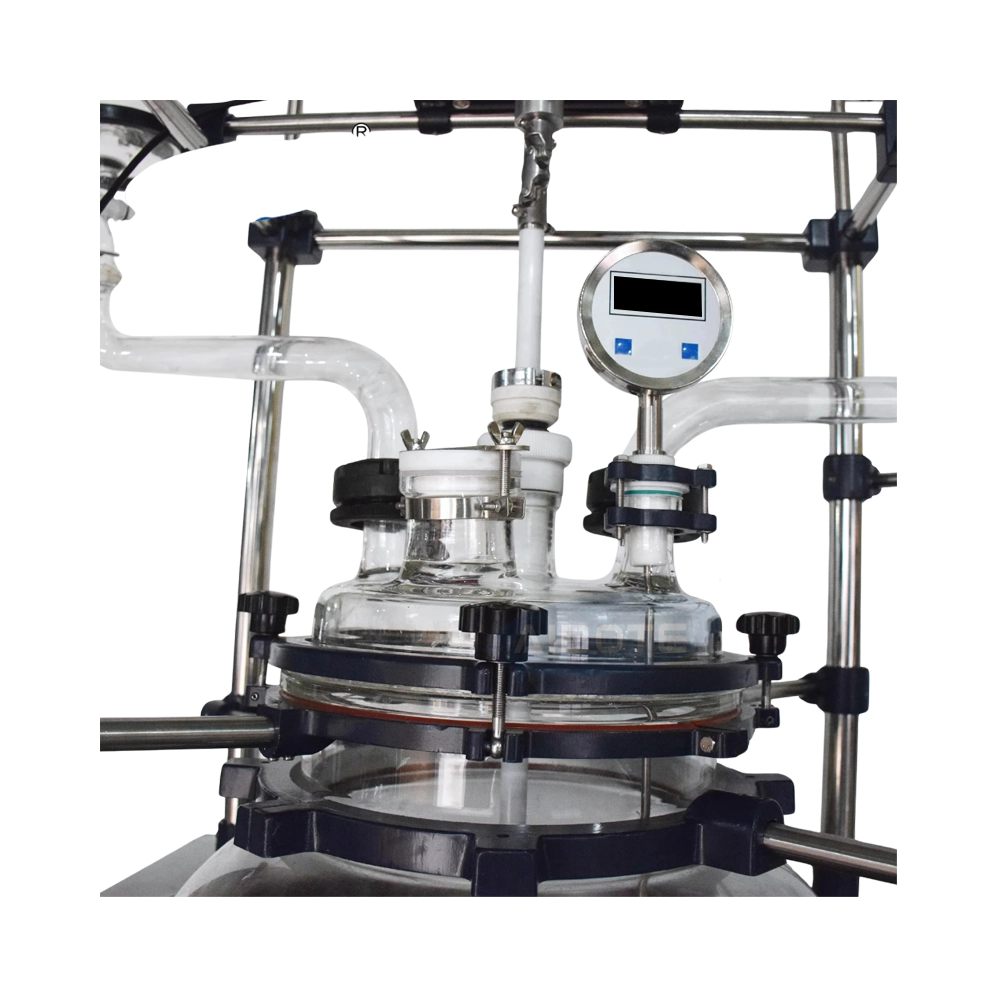

Single Layer Glass Reactor LMSLR-B109 features cylindrical vessel with 100-liter capacity. Its stirring paddle ensures thorough material mixing, promoting uniform distribution and improved reaction. Equipped with controller unit, it regulates rotation speed and temperature settings with an intuitive interface. Incorporates constant-pressure funnel for stable liquid feeding without causing fluctuations. Our Reactor is ideal for solvent recovery, distillation, and concentration.
Specifications
| Capacity | 100 L |
| Temperature Range | -80 to 250°C |
| Temperature Measurement Accuracy | ±1°C |
| Vacuum Degree | 0.098 MPa |
| Dropping Funnel Volume | 5 L |
| Rotation Speed Range | 0 to 450 rpm |
| Stirring Motor Power | 200W1/3 |
| Heating Power | 15kW |
| Power Supply | 220V/50Hz (Stirrer), 330V/50Hz (Heating bath) |
| Dimensions (W×D×H) | 900×770×2250 mm |
| Weight | 110 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Single Layer Glass Reactor LMSLR-B109 | $ 3675 | Each of 1 |
Features
Efficient thermal transfer
High-torque motor
Low noise operation
Chemical-resistant surfaces
External vacuum connectivity
Mobile caster base
Dual-seal protection
Applications
Single Layer Glass Reactor LMSLR-B109 is widely employed for vacuum evaporation, crystallization, chemical synthesis, solvent recovery, pharmaceutical formulation, concentration, and distillation.
Similar Products
$ 3487.5 / Each of 1
$ 6687.5 / Each of 1
$ 2825 / Each of 1
$ 2262.5 / Each of 1
$ 3650 / Each of 1
$ 3812.5 / Each of 1
$ 17275 / Each of 1
$ 8750 / Each of 1
$ 4150 / Each of 1
$ 6312.5 / Each of 1
$ 2500 / Each of 1
$ 3750 / Each of 1
$ 3187.5 / Each of 1
$ 3562.5 / Each of 1
$ 2175 / Each of 1
Frequently Asked Questions
1 What is a Single Layer Glass Reactor?
A Single Layer Glass Reactor is an apparatus designed for chemical reactions with a single-layer wall for clear visibility and chemical resistance.
2 How is temperature controlled in Single Layer Glass Reactor?
Temperature control is typically achieved through external jackets or immersion in temperature-controlled baths, ensuring precise reaction conditions.
3 Can Single Layer Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis for precise control and monitoring of chemical reactions.
4 Is Single Layer Glass Reactor suitable for polymerization processes?
It is ideal for polymerization due to its chemical resistance and ability to maintain controlled reaction environments.
5 Can Single Layer Glass Reactor be used for crystallization applications?
It is commonly employed in crystallization to observe crystal formation clearly and maintain proper reaction conditions.
6 Is Single Layer Glass Reactor used in research and development labs?
It is a standard tool in R&D labs for experimental reactions and process optimization.
7 Is Single Layer Glass Reactor used for food and flavor industry applications?
It is used in the food and flavor industry for controlled reaction processes and product development.
8 Can Single Layer Glass Reactor be used for catalyst testing?
It is commonly used for catalyst testing due to its transparent design, allowing observation of catalytic reactions.
9 Can Single Layer Glass Reactor be used in environmental testing applications?
It is often used in environmental labs for testing reactions related to pollution control and remediation.
10 Is Single Layer Glass Reactor used for quality control testing in manufacturing?
It is used in quality control to simulate and monitor chemical processes for consistency.
