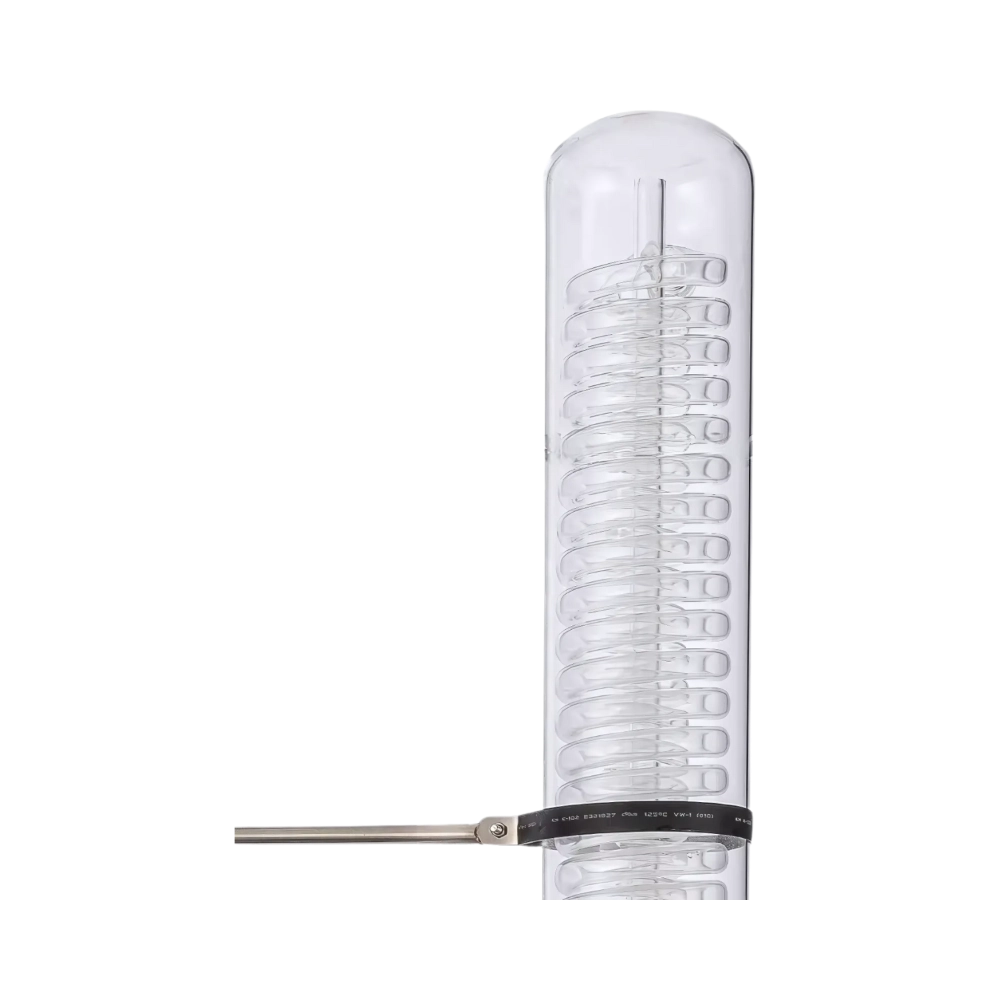

Single Layer Glass Reactor LMSLR-B108

Name: Single Layer Glass Reactor LMSLR-B108
Brand: Labmate
SKU: LMSLR-B108
Rating: 4.7 (474 reviews)

Single Layer Glass Reactor LMSLR-B108 boasts generous 100-liter capacity. It contains stainless steel reservoir designed for even heat distribution. Equipped with stepless speed control, it enables mixing adjustments for various material consistencies and reaction conditions. Incorporated vacuum port allows external vacuum connections for enhanced evaporation. Our Reactor is ideal for pharmaceutical formulation, concentration, and distillation.

Catalog Send Mail Whatsapp

Specifications

Capacity	100 L
Temperature Range	-80 to 250°C
Temperature Measurement Accuracy	±1°C
Vacuum Degree	0.098 MPa
Dropping Funnel Volume	2 L
Rotation Speed Range	0 to 450 rpm
Stirring Motor Power	200W1/3
Heating Power	15kW
Power Supply	220V/50Hz (Stirrer), 330V/50Hz (Heating bath)
Glass Vessel Diameter	610 mm
Dimensions (W×D×H)	880×800×1850 mm
Weight	108 Kg

Pricing

Product	Price	Unit	Action
Single Layer Glass Reactor LMSLR-B108	$ 4481.25	Each of 1

Features

Real-time temperature monitoring

Controlled liquid feeding

Uniform substance agitation

Integrated process controller

Mobile caster base

Dual-seal protection

Programmable system interface

Applications

Single Layer Glass Reactor LMSLR-B108 handles vacuum evaporation, crystallization, chemical synthesis, solvent recovery, pharmaceutical formulation, concentration, distillation, temperature-controlled reactions, and reaction monitoring.

Single Layer Glass Reactor LMSLR-A109

Capacity: 100 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 2 L
Receiving Flask Volume: 0.5 L

$ 8750 / Each of 1

Single Layer Glass Reactor LMSLR-B103

Capacity: 5 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2500 / Each of 1

Single Layer Glass Reactor LMSLR-A100

Capacity: 0.5 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3650 / Each of 1

Single Layer Glass Reactor LMSLR-A107

Capacity: 30 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

$ 6312.5 / Each of 1

Single Layer Glass Reactor LMSLR-A103

Capacity: 3 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3850 / Each of 1

Single Layer Glass Reactor LMSLR-B100

Capacity: 1 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2175 / Each of 1

Single Layer Glass Reactor LMSLR-B106

Capacity: 30 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

$ 3487.5 / Each of 1

Single Layer Glass Reactor LMSLR-A101

Capacity: 1 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3750 / Each of 1

Single Layer Glass Reactor LMSLR-B107

Capacity: 50 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

$ 3562.5 / Each of 1

Single Layer Glass Reactor LMSLR-A108

Capacity: 50 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

$ 6687.5 / Each of 1

Single Layer Glass Reactor LMSLR-B101

Capacity: 2 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2262.5 / Each of 1

Single Layer Glass Reactor LMSLR-A106

Capacity: 20 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

$ 5937.5 / Each of 1

Single Layer Glass Reactor LMSLR-B102

Capacity: 3 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2400 / Each of 1

Single Layer Glass Reactor LMSLR-B110

Capacity: 200 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Receiving Bottle Volume: 10 L

$ 6887.5 / Each of 1

Single Layer Glass Reactor LMSLR-A110

Capacity: 200 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 2 L
Receiving Flask Volume: 0.5 L

$ 17275 / Each of 1

Frequently Asked Questions

1 What is a Single Layer Glass Reactor?

A Single Layer Glass Reactor is an apparatus designed for chemical reactions with a single-layer wall for clear visibility and chemical resistance.

2 How is temperature controlled in Single Layer Glass Reactor?

Temperature control is typically achieved through external jackets or immersion in temperature-controlled baths, ensuring precise reaction conditions.

3 Can Single Layer Glass Reactor be used for pharmaceutical synthesis?

It is widely used in pharmaceutical synthesis for precise control and monitoring of chemical reactions.

4 Is Single Layer Glass Reactor suitable for polymerization processes?

It is ideal for polymerization due to its chemical resistance and ability to maintain controlled reaction environments.

5 Can Single Layer Glass Reactor be used for crystallization applications?

It is commonly employed in crystallization to observe crystal formation clearly and maintain proper reaction conditions.

6 Is Single Layer Glass Reactor used in research and development labs?

It is a standard tool in R&D labs for experimental reactions and process optimization.

7 Is Single Layer Glass Reactor used for food and flavor industry applications?

It is used in the food and flavor industry for controlled reaction processes and product development.

8 Can Single Layer Glass Reactor be used for catalyst testing?

It is commonly used for catalyst testing due to its transparent design, allowing observation of catalytic reactions.

9 Can Single Layer Glass Reactor be used in environmental testing applications?

It is often used in environmental labs for testing reactions related to pollution control and remediation.

10 Is Single Layer Glass Reactor used for quality control testing in manufacturing?

It is used in quality control to simulate and monitor chemical processes for consistency.
